5.6
SATA Interfaces
5.6.1
Standard SATA Ports
The conga-IC170 provides three SATA ports —two standard SATA connectors (X51 and X52) and one M.2 connector (X10). The SATA ports
support data rates up to 6 Gbps.
When there is activity on any of the SATA interfaces, the SATA LED on the front panel connector (X39) glows.
Note
1. The conga-IC170 offers an additional standard SATA connector (X50) via an assembly option (customized variant)
2. Connector X51 supports eSATA devices.
Connector X52 supports SATADOM devices on hardware revision A.x and later.

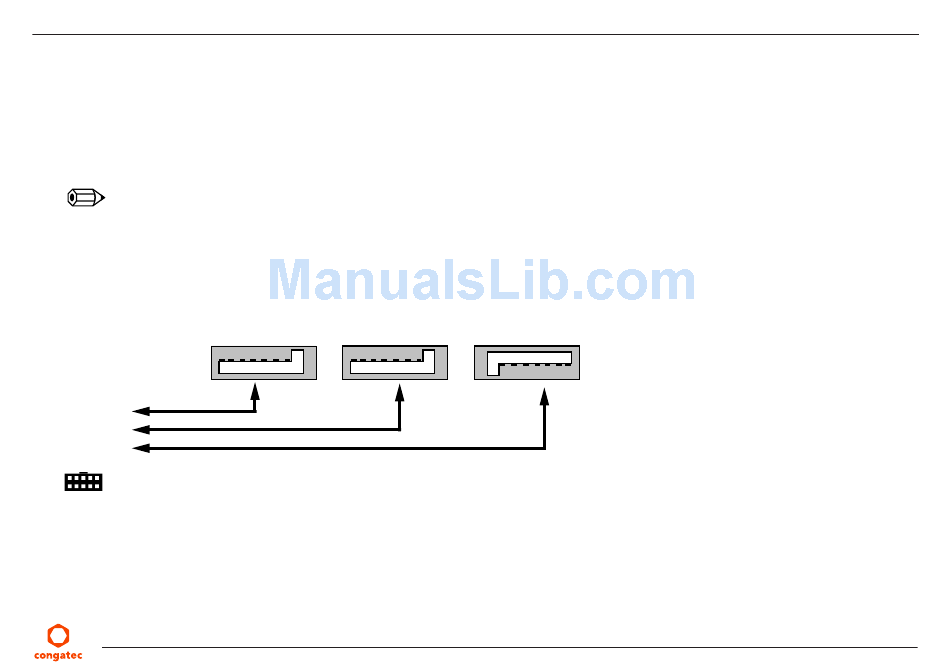

SATA0 (X51)
Serial ATA Channel 0
Serial ATA Channel 1
Serial ATA Channel 2 (optional)
Connector Type
X50,X51,X52: Standard SATA connector
Copyright © 2016 congatec AG
SATA1 (X52)
1
2
3
4
5
6
7
1
2
3
4
5
Optional - SATA2 (X50)
6
7
1
2
3
4
5
6
7
