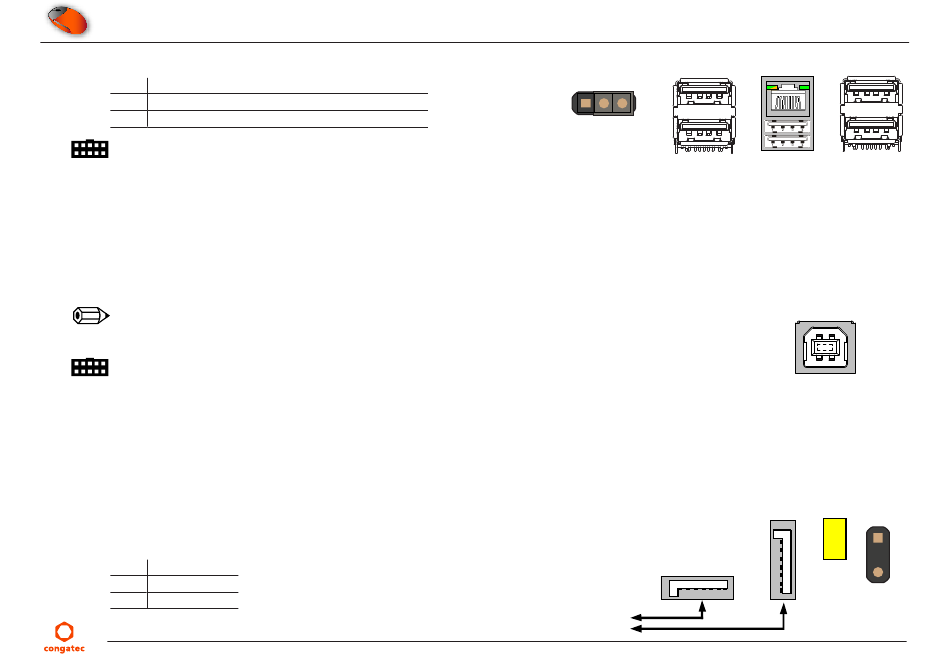

Table 30 X107 - USB5 Route Configuration
Pin Configuration
1-2 USB port 5 auto switching (mPCIe card detection)
2-3 USB5 is routed to mPCIe (default)
Connector Type
X4, X5, X85: USB Type A plug
X107: 2.54 mm grid jumper
5.7.3

USB Type-B

The conga-MEVAL provides USB 2.0 Type B connector CN1 for USB device functionality. Its USB signals (USB port 7) are shared with the upper
slot of connector X5. The shared USB signals are automatically routed to CN1 when a USB host device is connected.
Note
CN1 will not function if the COM Express module does not support USB device (client) mode.
Connector Type
CN1: USB Type B plug
5.8

SATA™

The conga-MEVAL provides two standard SATA connectors (X68 and X69). The SATA activity LED (D7) lights when an activity occurs on any of
the SATA interfaces. The pin header X21 provides an option to connect external SATA activity LED.
The header provides 3.3 V with 470 ohm resistor.
Table 31 X21 - External LED Header
Pin Signal
1 Anode
2 Cathode
