4.4.1

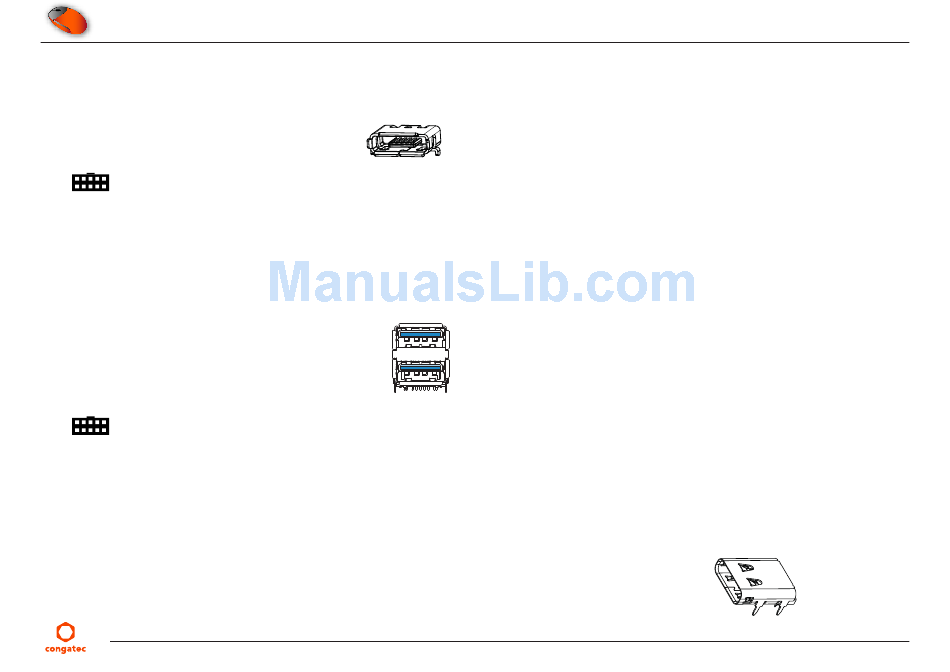

Micro USB Type-AB (OTG)

The conga-SEVAL features a micro USB Type-AB port with OTG capability on connector X2.

Connector Type

X2: Micro USB Type AB receptacle

4.4.2

The conga-SEVAL provides a USB 3.0 port (upper slot) and a USB 2.0 port (lower slot) on connector X3. Each port provides up to 900 mA.

Connector Type

X3: USB Type A receptacle

4.4.3

The conga-SEVAL features a USB Type-C port on connector X4. The port supports:

• USB 3.1 specification

• USB OTG

• DisplayPort

• Power Delivery (5 V, 12 V and 20 V)

USB0 (OTG) - X2

Dual USB Type - X3

USB 3.0

USB 2.0

SEVALm10

USB Type-C - X4

31/58
