4.13.3
USB Type C Alternate Display Mode
The conga-SEVAL supports DisplayPort on USB Type C connector (X4). This feature is available only if the attached SMARC module supports
native DisplayPort signals on its second DisplayPort (DP1) interface.
For DisplayPort functionality on USB Type_C connector:
• set jumper X35 to position 1-2
• set jumper X34 to position 1-2.
Table 37
Jumper X34 Pin Description
Pin
Configuration
1-2
DisplayPort on USB Type-C connector (X4)
2-3
HDMI
Table 38
Jumper X35 Pin Description
Pin
Configuration
1-2
DisplayPort AUX
2-3
HDMI DDC
Connector Type
X4: USB Type-C Receptacle
X34, X35: 2.54 mm grid jumper
Copyright © 2017 congatec AG

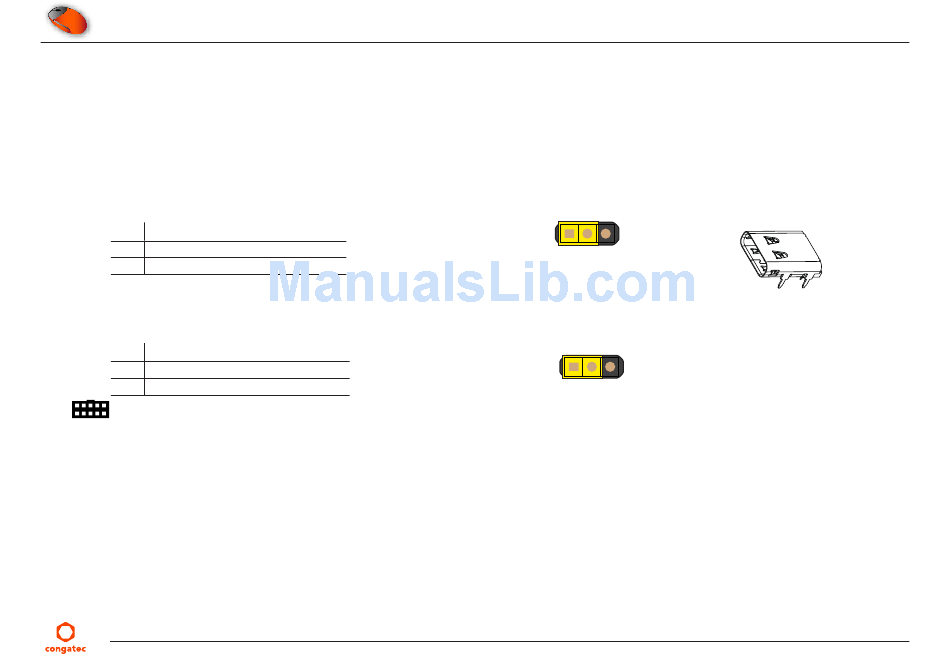

Jumper X34
1
2
3
Jumper X35
1
2
3
SEVALm10
USB Type-C - X4
44/58
