Pcie - Congatec SMARC 2.0 conga-SEVAL User Manual

Connector Type
X4: USB Type-C Receptacle
4.5

PCIe

The conga-SEVAL provides four PCIe interfaces:
• PCIe x4 slot on connector X5
• PCIe x1 slot on connector X9
• mini-PCIe slot on connector X7
• M.2 slot on connector X11

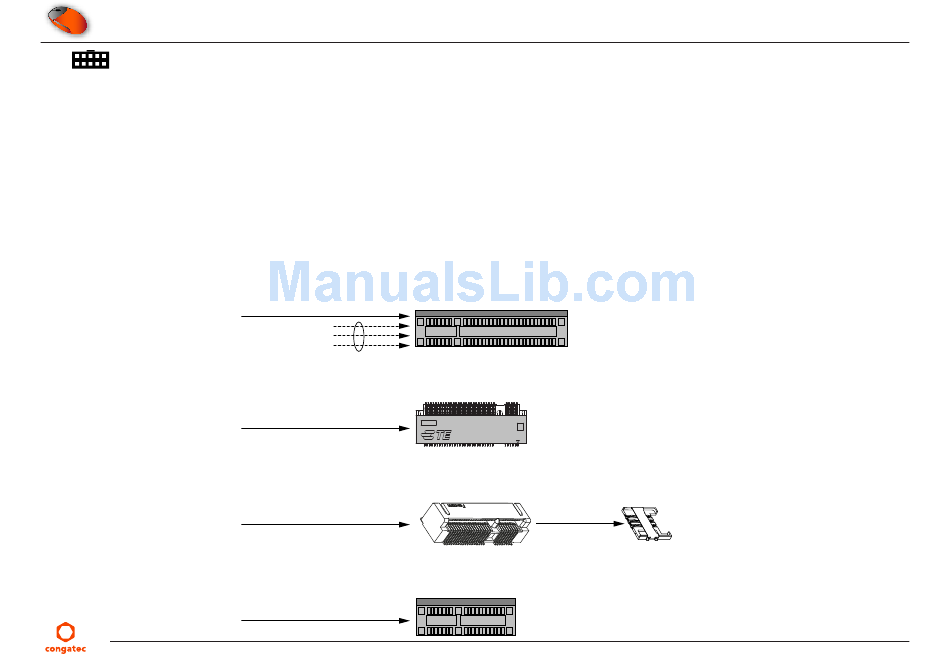

The PCIe lanes are routed as shown below.
Copyright © 2017 congatec AG
Up to PCIe x4 lanes (X5)
PCIe Lane A
PCIe Link B
PCIe Link C
PCIe Link D
Stuffing Options
M.2 (X11)
PCIe Lane B
PCIe Lane C
PCIe x1 lane (X9)
PCIe Lane D
Mini PCIe (X7)
SEVALm10
SIM Card Slot (X8)
