Vector Display

WFM8200 and WFM8300 Waveform Monitors
To turn on the Multi-Input display mode, select Multi-Input Display and press
SEL. Next, press the FULL button to view the waveform in Multi-Input mode.
NOTE.
The Multi-Input menu option is only available in the WFM pop-up menu
when the feature is enabled from the MAIN button or CONFIG button menu. (See
page 27, Multi-Input Display Mode.)
To cancel any horizontal or vertical position adjustments and restore the trace to
the default position, select Center Waveform and press SEL. For a tile in WFM
mode, this puts the baseline at the zero graticule.
The VECT button calls up the Vector and Lightning displays, which provide for
selection between two plots of the color portions of the signal. (See Figure 20.)
(See Figure 21.)

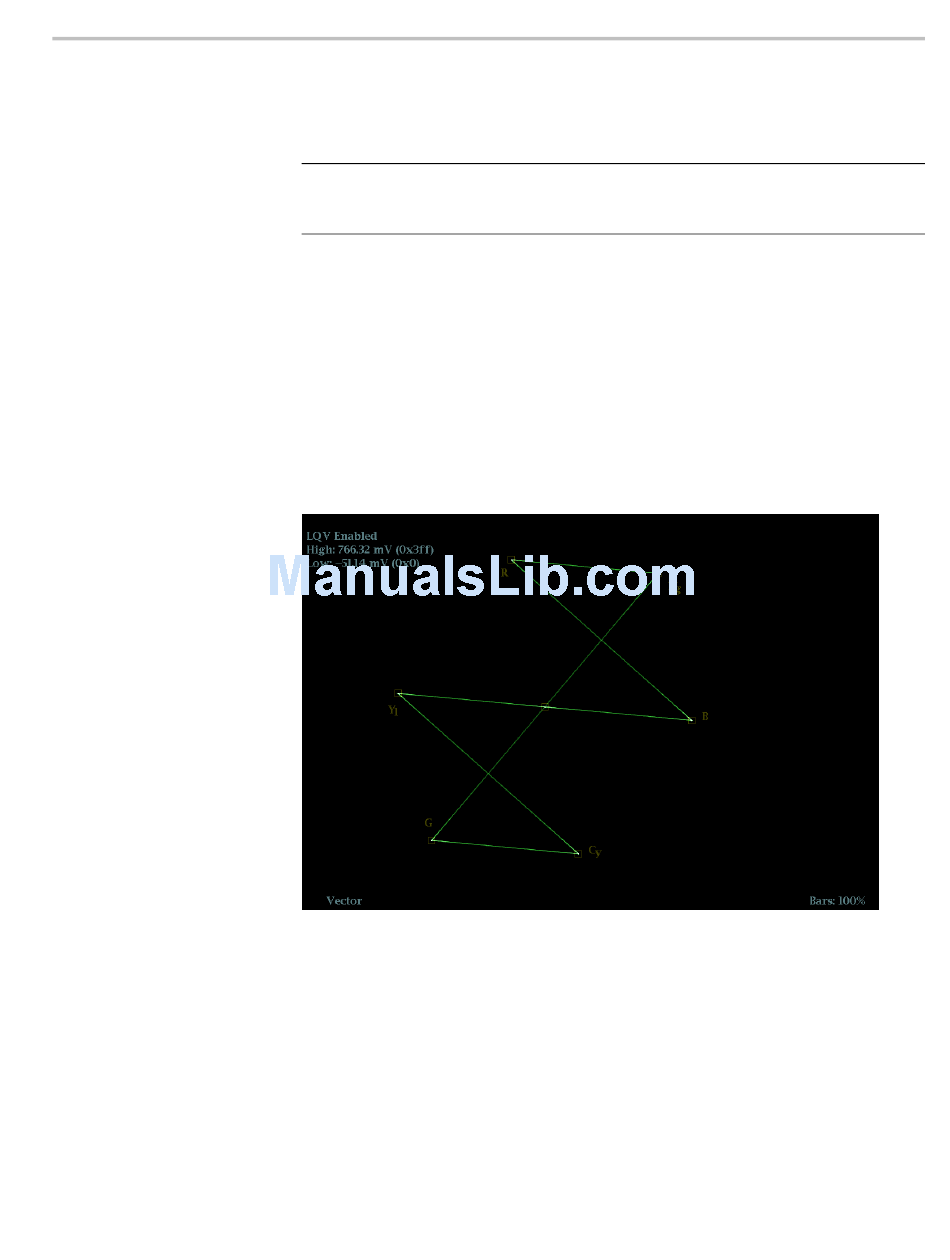

Figure 20: Vector display with Luma Qualified Vector (LQV) enabled
Display Information
37
