ARIB Displays
ARIB STD-B.37 Display and Status Screens
130
The ARIB STD-B.37 display shows the decoded data for video signals using
ancillary data compliant with ARIB STD-B.37. (See Figure 64.) When this
display is selected, the instrument searches the signal for ARIB STD-B.37 packets
using the DID/SDID combinations defined by ARIB.

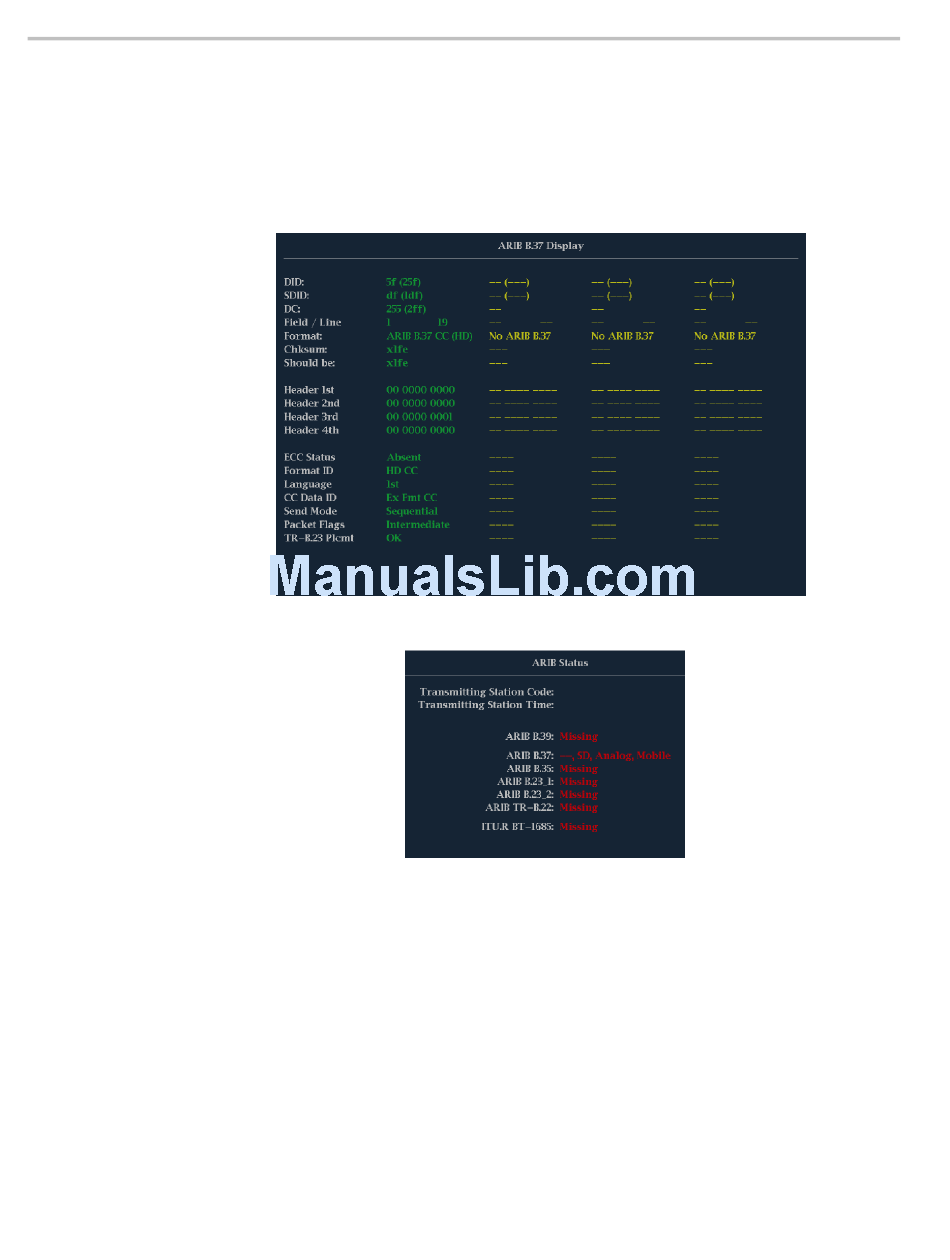

Figure 64: ARIB STD-B.37 display (with the associated ARIB Status display)
WFM8200 and WFM8300 Waveform Monitors
