Repairs - Lifestand LSCT Service Manual

LSCT
Item N° 326617
BACK COVER:
Dismantling:
1. Unscrew the two handles. (Place the
chair in standing position to facilitate
access to the handles). (See figure 5)
2. Carefully pull the back cover backwards
and disconnect the lights and indicators
before removing it completely. (Pay
attention to the way in which the back
cover is removed). (See figure 6)
Assembly:
Assemble in the reverse order.
1. Reconnect the lights and indicators (See
section «Electrical circuit diagram».
2. Replace the back cover by making the
opposite movement of removing it. (See
figure 7)
3. Replace and re-tighten the two handles.
(See figure 8)
Maintenance manual
Revision A Date 25/06/2015 Page 7 of 93

REPAIRS:

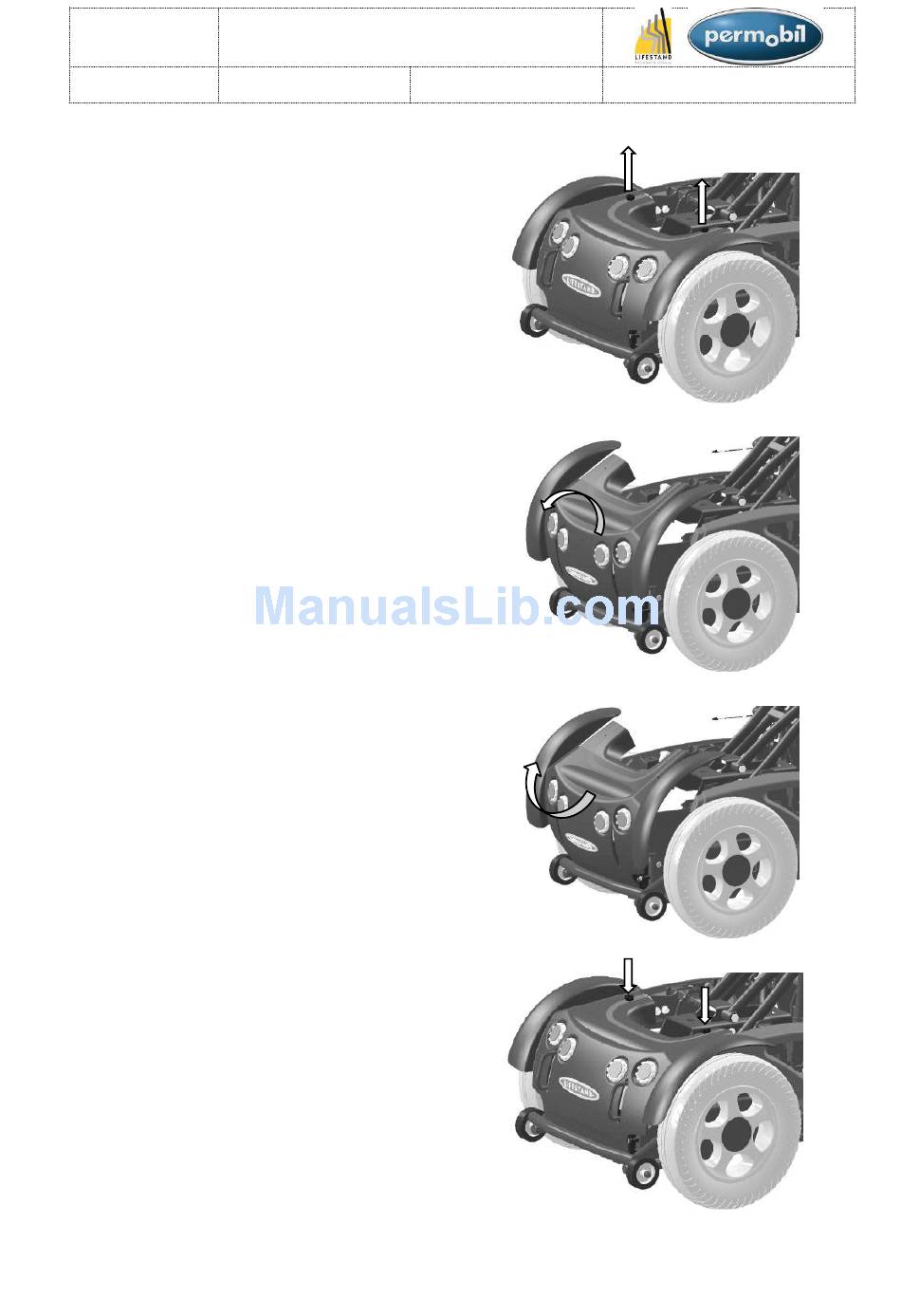

Figure 5
Figure 6
Figure 7
Figure 8
