6.0 Configuration

6.1.4.6 Quality of Service

Quality of Service (QoS) may be applied to various data which enter the Nano IP Series. This
section describes configuring QoS for data which enters via the ethernet port.
QoS: Quality of Service
is applied to networks
where it is desired to give
particular data traffic/
protocol(s) priority over
other data traffic.
If Enabled, the defined protocols and ports will have the QoS
service applied to them.
To define particular ports, protocol, and priority to be assigned, see the example of such a
configuration exercise on the following page.
© Microhard Systems Inc.

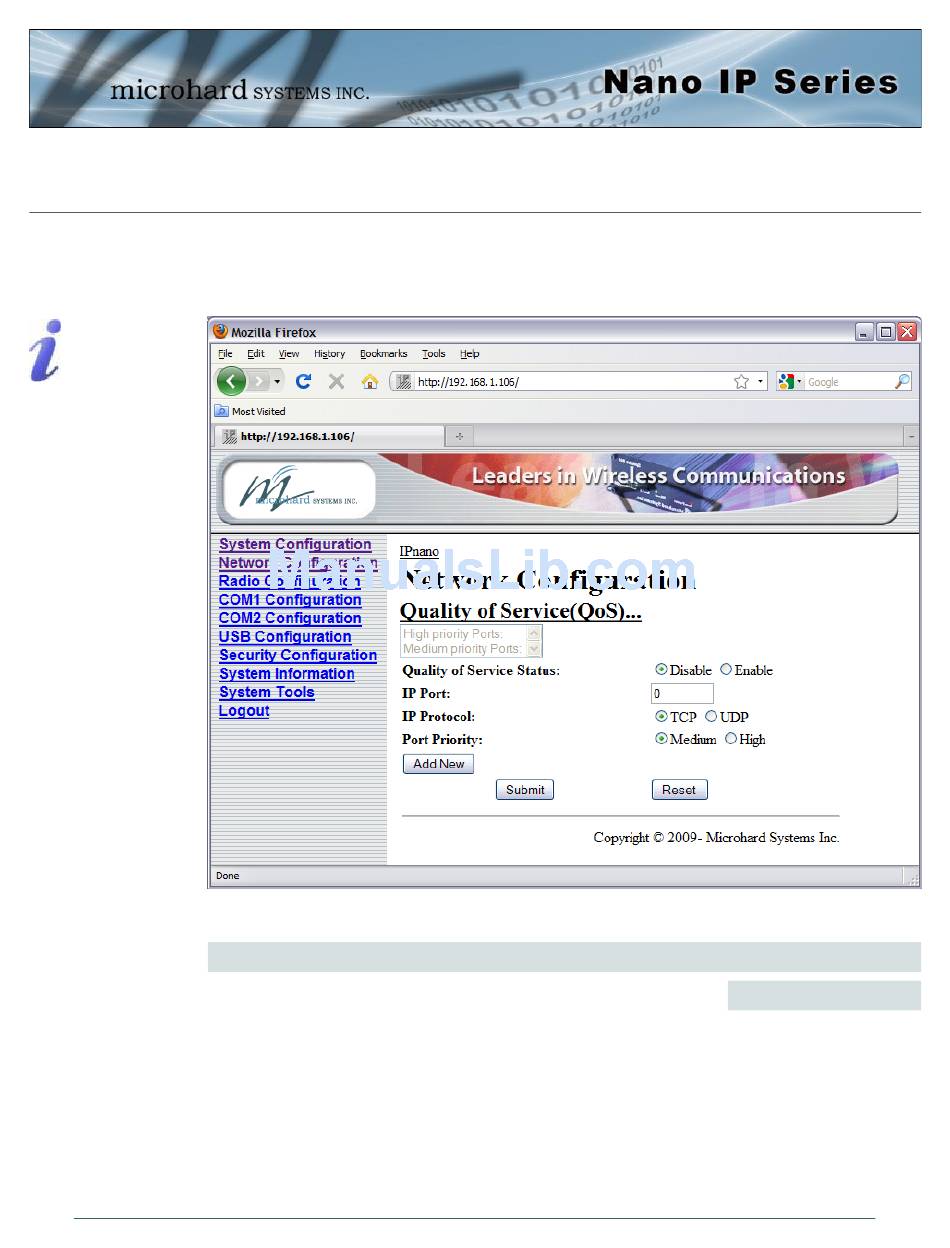

Image 6M: Network Configuration, Quality of Service Submenu
CONFIDENTIAL
Quality of Service Status
Values
Disable
Enable
67
