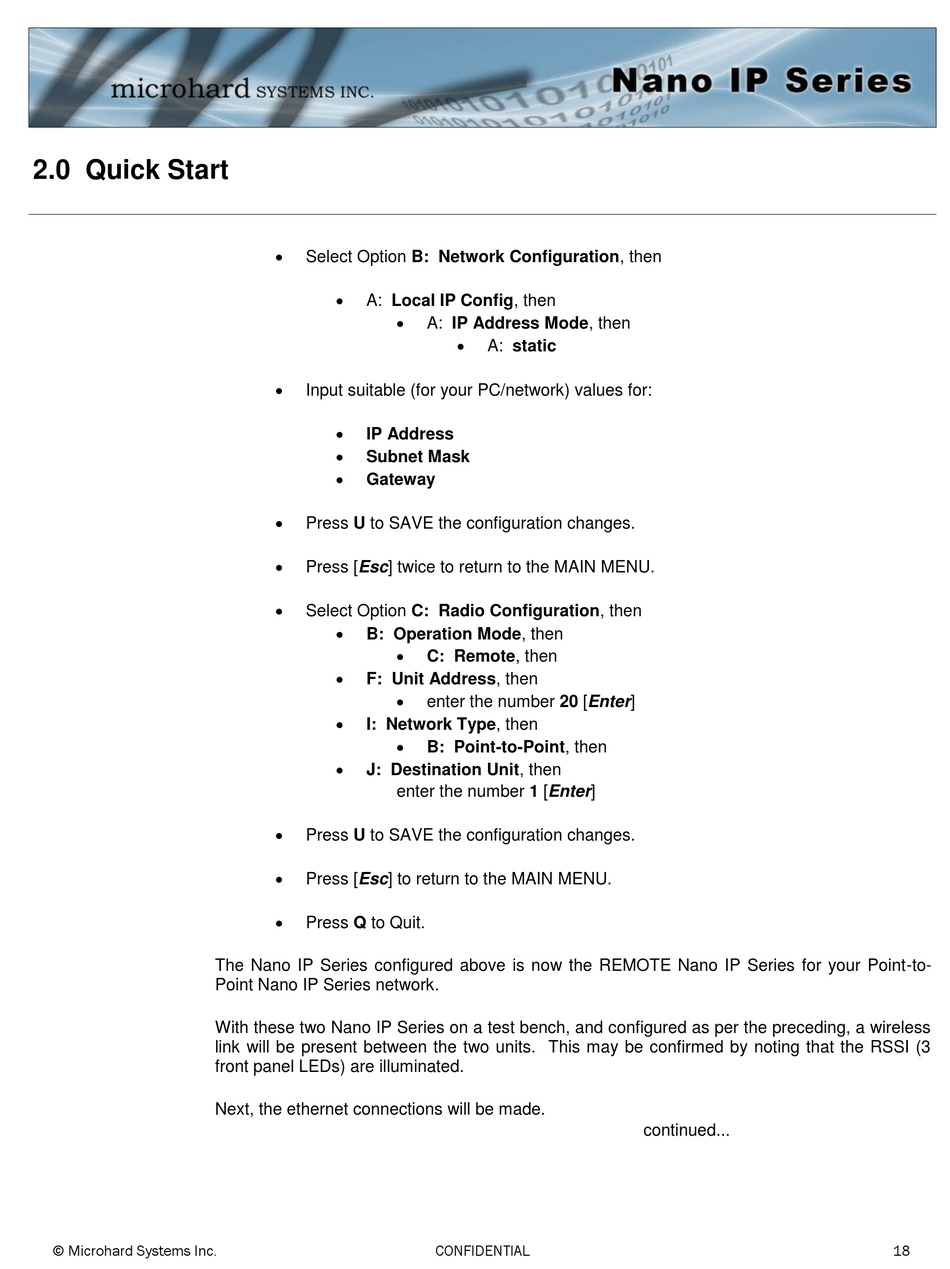

Microhard Systems Nano IP Series Operating Manual page 18

2.0 Quick Start
The Nano IP Series configured above is now the REMOTE Nano IP Series for your Point-to-
Point Nano IP Series network.
With these two Nano IP Series on a test bench, and configured as per the preceding, a wireless
link will be present between the two units. This may be confirmed by noting that the RSSI (3
front panel LEDs) are illuminated.
Next, the ethernet connections will be made.
© Microhard Systems Inc.

Select Option B: Network Configuration, then

A: Local IP Config, then

A: IP Address Mode, then


Input suitable (for your PC/network) values for:

IP Address

Subnet Mask

Gateway

Press U to SAVE the configuration changes.

Press [Esc] twice to return to the MAIN MENU.

Select Option C: Radio Configuration, then

B: Operation Mode, then

C: Remote, then

F: Unit Address, then

enter the number 20 [Enter]

I: Network Type, then

B: Point-to-Point, then

J: Destination Unit, then
enter the number 1 [Enter]

Press U to SAVE the configuration changes.

Press [Esc] to return to the MAIN MENU.

Press Q to Quit.
CONFIDENTIAL
A: static
continued...
