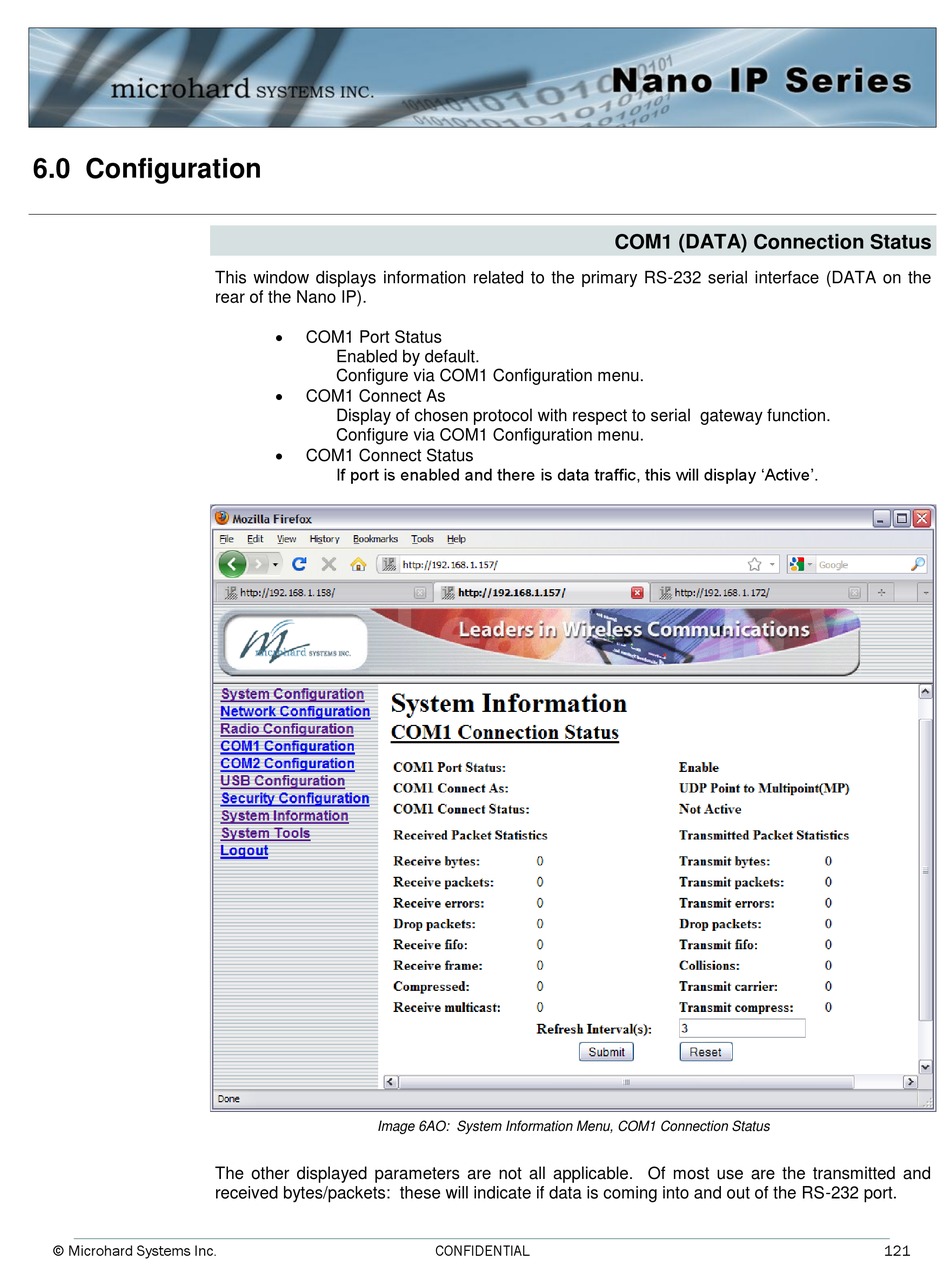

Microhard Systems Nano IP Series Operating Manual page 121

6.0 Configuration
This window displays information related to the primary RS-232 serial interface (DATA on the
rear of the Nano IP).
The other displayed parameters are not all applicable. Of most use are the transmitted and
received bytes/packets: these will indicate if data is coming into and out of the RS-232 port.
© Microhard Systems Inc.

COM1 Port Status
Enabled by default.
Configure via COM1 Configuration menu.

COM1 Connect As
Display of chosen protocol with respect to serial gateway function.
Configure via COM1 Configuration menu.

COM1 Connect Status
If port is enabled and there is data traffic, this will display ‗Active'.
Image 6AO: System Information Menu, COM1 Connection Status
CONFIDENTIAL
COM1 (DATA) Connection Status
