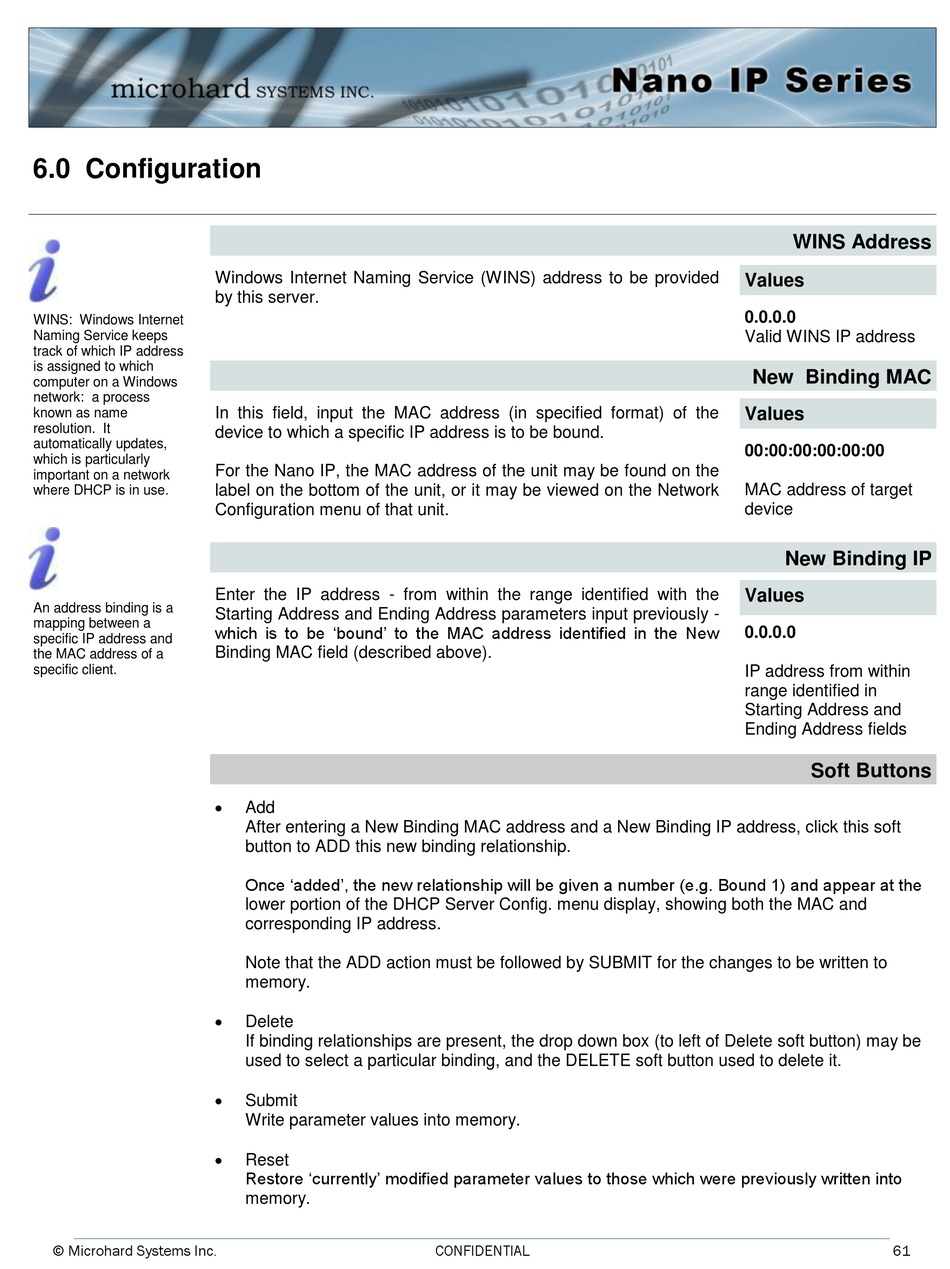

Microhard Systems Nano IP Series Operating Manual page 61

6.0 Configuration
Windows Internet Naming Service (WINS) address to be provided
by this server.
WINS: Windows Internet
Naming Service keeps
track of which IP address
is assigned to which
computer on a Windows
network: a process
In this field, input the MAC address (in specified format) of the
known as name
resolution. It
device to which a specific IP address is to be bound.
automatically updates,
which is particularly
For the Nano IP, the MAC address of the unit may be found on the
important on a network
label on the bottom of the unit, or it may be viewed on the Network
where DHCP is in use.
Configuration menu of that unit.
Enter the IP address - from within the range identified with the
An address binding is a
Starting Address and Ending Address parameters input previously -
mapping between a
which is to be ‗bound' to the MAC address identified in the New
specific IP address and
Binding MAC field (described above).
the MAC address of a
specific client.




© Microhard Systems Inc.
Add
After entering a New Binding MAC address and a New Binding IP address, click this soft
button to ADD this new binding relationship.
Once ‗added', the new relationship will be given a number (e.g. Bound 1) and appear at the
lower portion of the DHCP Server Config. menu display, showing both the MAC and
corresponding IP address.
Note that the ADD action must be followed by SUBMIT for the changes to be written to
memory.
Delete
If binding relationships are present, the drop down box (to left of Delete soft button) may be
used to select a particular binding, and the DELETE soft button used to delete it.
Submit
Write parameter values into memory.
Reset
Restore ‗currently' modified parameter values to those which were previously written into
memory.
CONFIDENTIAL
WINS Address
Values
0.0.0.0
Valid WINS IP address
New Binding MAC
Values
00:00:00:00:00:00
MAC address of target
device
New Binding IP
Values
0.0.0.0
IP address from within
range identified in
Starting Address and
Ending Address fields
Soft Buttons
