5.0 Network Topologies

5.4 Everyone-to-Everyone (E2E)

E2E mode is used for communications between all remote modems,
Considering the amount of data re-broadcasting (via the Master), it is a very bandwidth-intensive
network topology.
An E2E network
Example 5.4.1
requires a Master
modem.
1 Master and 3 remote units must all communicate with each other.
The data being
transmitted from
remote units in an E2E
network travels to the
Master and is then re-
broadcast to all other
remotes.
© Microhard Systems Inc.
i.e. data from every modem is broadcast to every other modem in the network.

There is no DESTINATION UNIT configuration option as the DESTINATION is pre-
defined to be the broadcast address (65535) when in E2E mode.

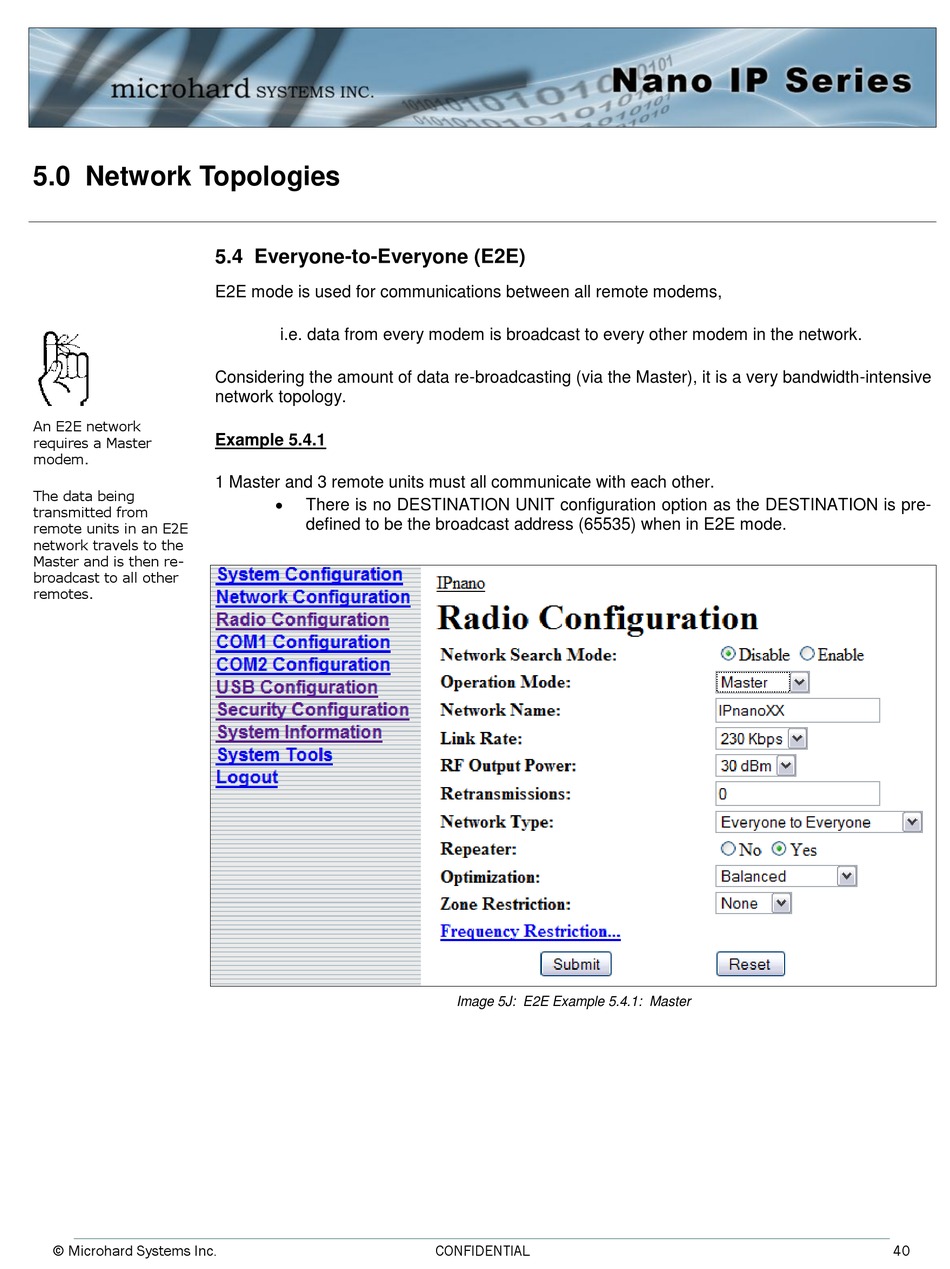

Image 5J: E2E Example 5.4.1: Master
