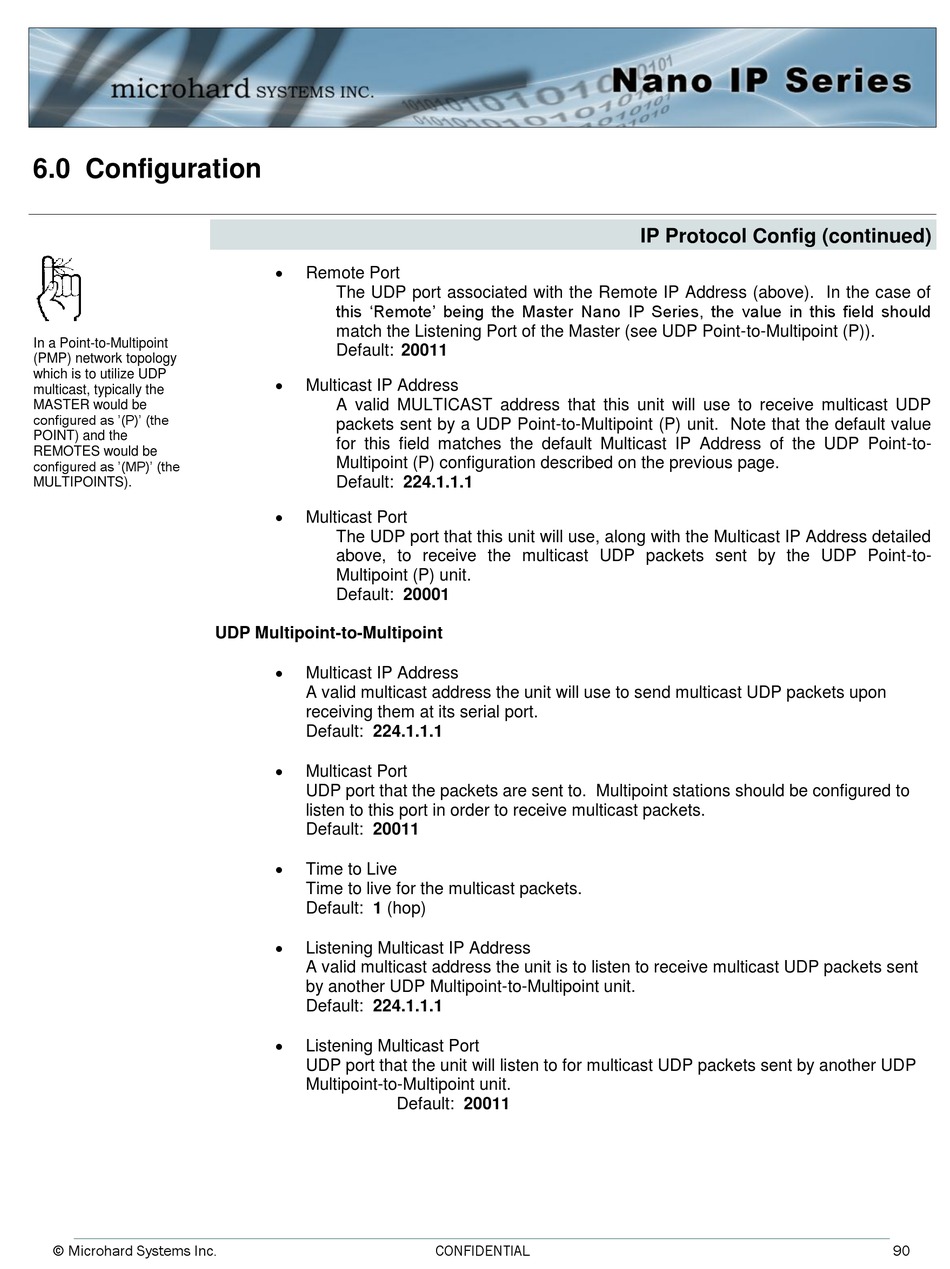

Microhard Systems Nano IP Series Operating Manual page 90

6.0 Configuration
In a Point-to-Multipoint
(PMP) network topology
which is to utilize UDP
multicast, typically the
MASTER would be
configured as '(P)' (the
POINT) and the
REMOTES would be
configured as '(MP)' (the
MULTIPOINTS).
UDP Multipoint-to-Multipoint
© Microhard Systems Inc.

Remote Port
The UDP port associated with the Remote IP Address (above). In the case of
this ‗Remote' being the Master Nano IP Series, the value in this field should
match the Listening Port of the Master (see UDP Point-to-Multipoint (P)).
Default: 20011

Multicast IP Address
A valid MULTICAST address that this unit will use to receive multicast UDP
packets sent by a UDP Point-to-Multipoint (P) unit. Note that the default value
for this field matches the default Multicast IP Address of the UDP Point-to-
Multipoint (P) configuration described on the previous page.
Default: 224.1.1.1

Multicast Port
The UDP port that this unit will use, along with the Multicast IP Address detailed
above, to receive the multicast UDP packets sent by the UDP Point-to-
Multipoint (P) unit.
Default: 20001

Multicast IP Address
A valid multicast address the unit will use to send multicast UDP packets upon
receiving them at its serial port.
Default: 224.1.1.1

Multicast Port
UDP port that the packets are sent to. Multipoint stations should be configured to
listen to this port in order to receive multicast packets.
Default: 20011

Time to Live
Time to live for the multicast packets.
Default: 1 (hop)

Listening Multicast IP Address
A valid multicast address the unit is to listen to receive multicast UDP packets sent
by another UDP Multipoint-to-Multipoint unit.
Default: 224.1.1.1

Listening Multicast Port
UDP port that the unit will listen to for multicast UDP packets sent by another UDP
Multipoint-to-Multipoint unit.
Default: 20011
CONFIDENTIAL
IP Protocol Config (continued)
