Microhard Systems Nano IP Series Operating Manual page 15

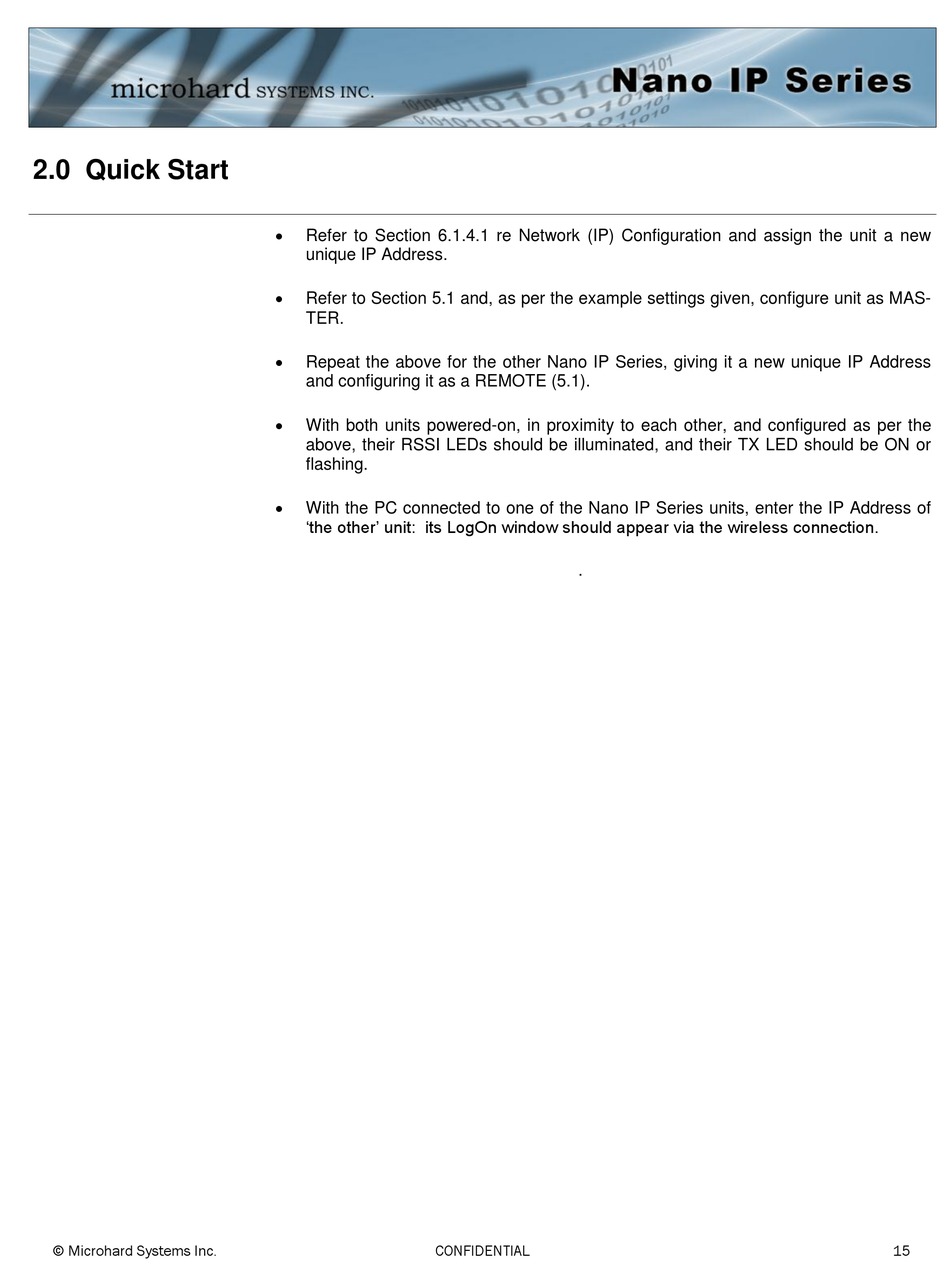

2.0 Quick Start
© Microhard Systems Inc.

Refer to Section 6.1.4.1 re Network (IP) Configuration and assign the unit a new
unique IP Address.

Refer to Section 5.1 and, as per the example settings given, configure unit as MAS-
TER.

Repeat the above for the other Nano IP Series, giving it a new unique IP Address
and configuring it as a REMOTE (5.1).

With both units powered-on, in proximity to each other, and configured as per the
above, their RSSI LEDs should be illuminated, and their TX LED should be ON or
flashing.

With the PC connected to one of the Nano IP Series units, enter the IP Address of
‗the other' unit: its LogOn window should appear via the wireless connection.
CONFIDENTIAL
.
15
