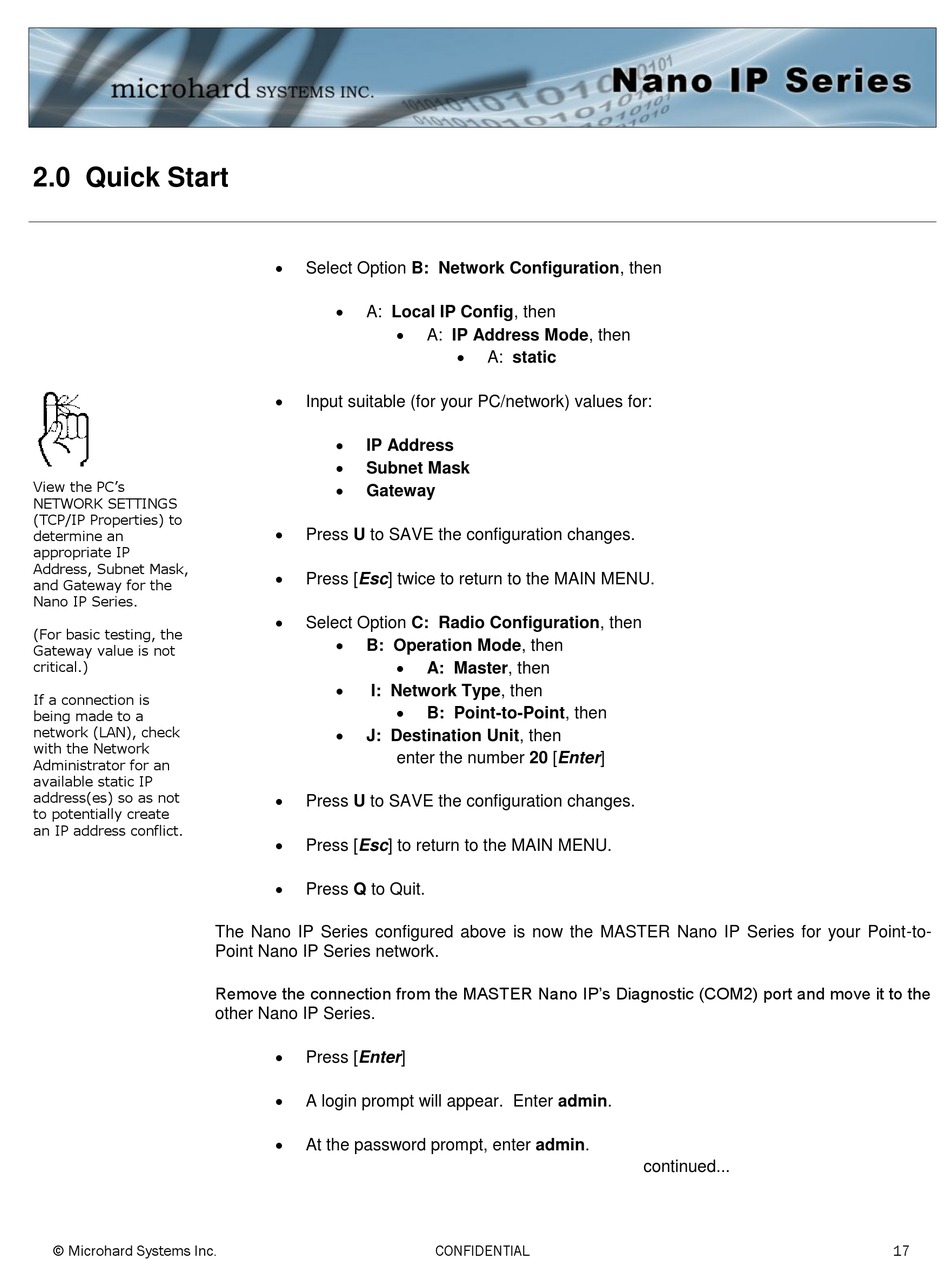

2.0 Quick Start
View the PC's
NETWORK SETTINGS
(TCP/IP Properties) to
determine an
appropriate IP
Address, Subnet Mask,
and Gateway for the
Nano IP Series.
(For basic testing, the
Gateway value is not
critical.)
If a connection is
being made to a
network (LAN), check
with the Network
Administrator for an
available static IP
address(es) so as not
to potentially create
an IP address conflict.
The Nano IP Series configured above is now the MASTER Nano IP Series for your Point-to-
Point Nano IP Series network.
Remove the connection from the MASTER Nano IP's Diagnostic (COM2) port and move it to the
other Nano IP Series.
© Microhard Systems Inc.

Select Option B: Network Configuration, then

A: Local IP Config, then

A: IP Address Mode, then


Input suitable (for your PC/network) values for:

IP Address

Subnet Mask

Gateway

Press U to SAVE the configuration changes.

Press [Esc] twice to return to the MAIN MENU.

Select Option C: Radio Configuration, then

B: Operation Mode, then

A: Master, then

I: Network Type, then

B: Point-to-Point, then

J: Destination Unit, then
enter the number 20 [Enter]

Press U to SAVE the configuration changes.

Press [Esc] to return to the MAIN MENU.

Press Q to Quit.

Press [Enter]

A login prompt will appear. Enter admin.

At the password prompt, enter admin.
CONFIDENTIAL
A: static
continued...
