6.0 Configuration
6.1.4.1 Local IP Configuration

6.1.4.1.2 Router

If the Nano IP Series unit has been configured as a Router (under the System Configuration
menu), the Network Configuration will present some additional options to those presented if the
unit was configured as a Bridge.
The Ethernet Port IP Configuration applies to the ‗wired' port (at rear of IP Series unit), which
may also be considered as the WAN (Wide Area Network) port.
The Wireless Port IP Configuration applies to the LAN (Local Area Network): the LAN consists
Only the MASTER Nano
of the devices, and Nano IP Series units, connected to each other via the wireless (radio)
IP Series unit may be
network.
configured as a Router.
Refer to the preceding section for configuring the Ethernet Port, keeping in mind that the
settings apply only to the ‗wired' connection of the MASTER unit.
There are two other options to be discussed further on the following pages:
© Microhard Systems Inc.

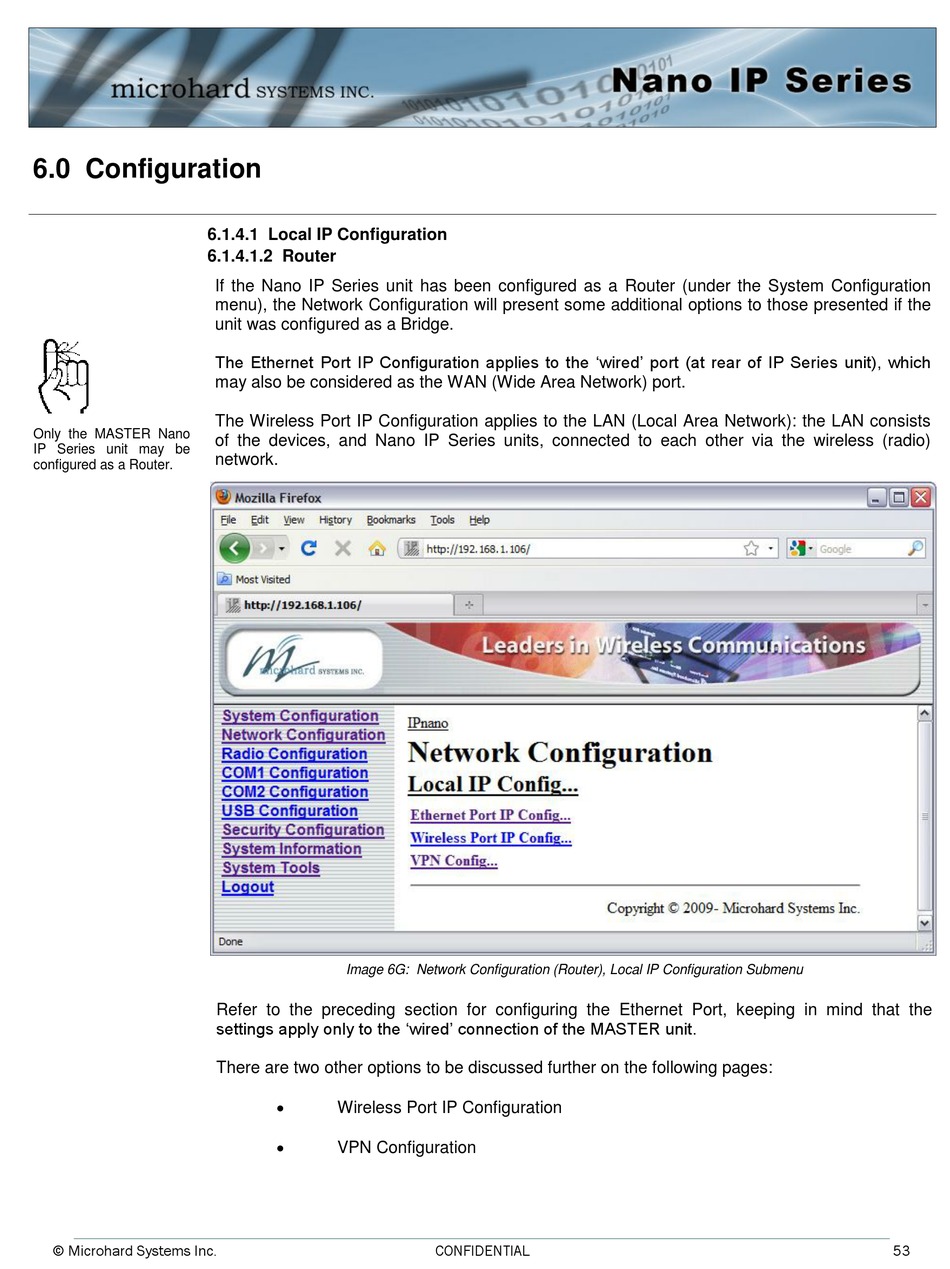

Image 6G: Network Configuration (Router), Local IP Configuration Submenu

