6.0 Configuration

6.1.5 Radio Configuration

The parameters within the Radio Configuration menu must be input properly; they are the most
basic requirement for radio network connectivity.
Prior to configuration, the network topology must be known (see Section 5.0); the role (operating
mode) of the specific Nano IP Series must also be known.

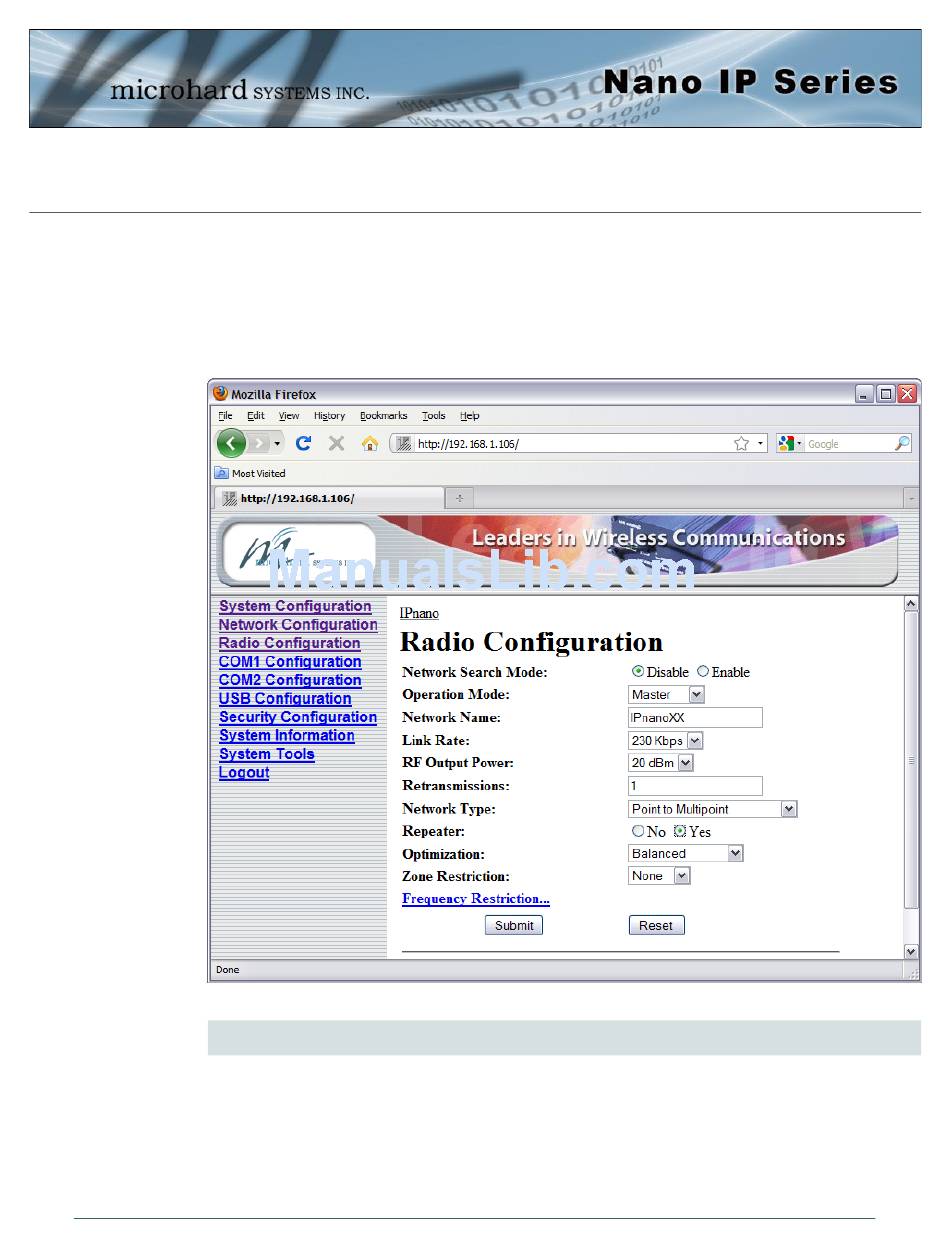

The above screen capture depicts Radio Configuration menu option with Network Search Mode
disabled. On the following page, the screen capture shows what configuration options are
available when Network Search Mode is enabled.
© Microhard Systems Inc.
Image 6O: Radio Configuration Menu (upper portion)
CONFIDENTIAL
Network Search Mode
