5.0 Network Topologies
Example 5.2.1 (continued)
When bench testing
PMP with a REPEATER
in the network,
configure the REMOTE
to synchronize to the
REPEATER via the
REMOTE's ROAMING
ADDRESS field. If this
is not done, with the
REMOTE in close
proximity to the
MASTER and its
ROAMING set as 1
On the following page are the configurations for the REMOTES.
(default), the REMOTE
will simply synchronize
with (and pass data
directly to) the
MASTER, bypassing the
REPEATER altogether.
© Microhard Systems Inc.

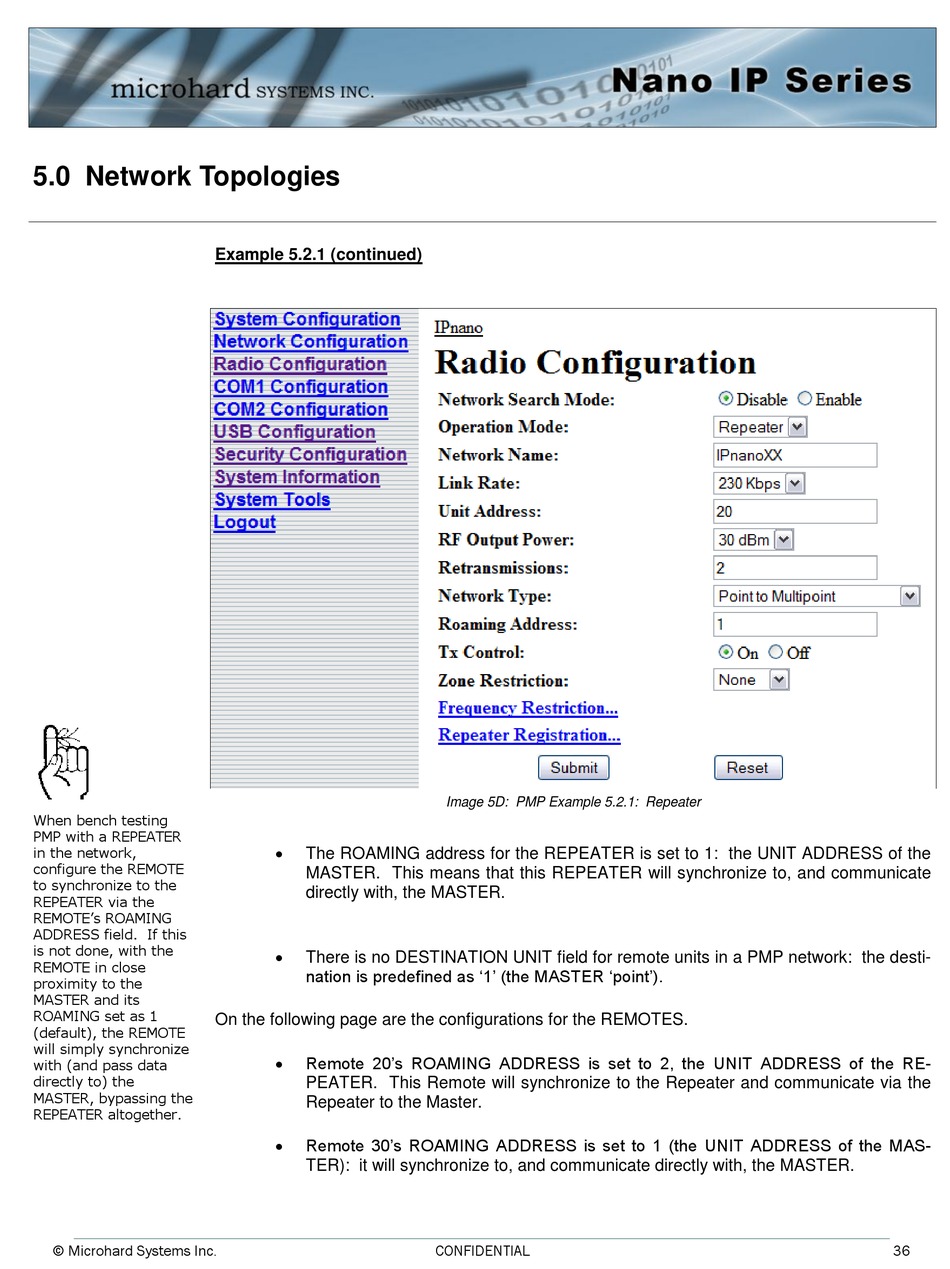

Image 5D: PMP Example 5.2.1: Repeater

The ROAMING address for the REPEATER is set to 1: the UNIT ADDRESS of the
MASTER. This means that this REPEATER will synchronize to, and communicate
directly with, the MASTER.

There is no DESTINATION UNIT field for remote units in a PMP network: the desti-
nation is predefined as ‗1' (the MASTER ‗point').

Remote 20's ROAMING ADDRESS is set to 2, the UNIT ADDRESS of the RE-
PEATER. This Remote will synchronize to the Repeater and communicate via the
Repeater to the Master.

Remote 30's ROAMING ADDRESS is set to 1 (the UNIT ADDRESS of the MAS-
TER): it will synchronize to, and communicate directly with, the MASTER.
