6.0 Configuration

Be certain to SAVE any
desired configuration
changes.
This action is the same as
activating the SUBMIT
soft button when using
the Web UI.

As can be seen in the preceding screen captures, the [Esc] key is used to ‗back up' to the
previous menu.
When at the Main Menu, the ‗Q' may be used to Quit the Text UI: the IP Series will display the
login prompt.
© Microhard Systems Inc.

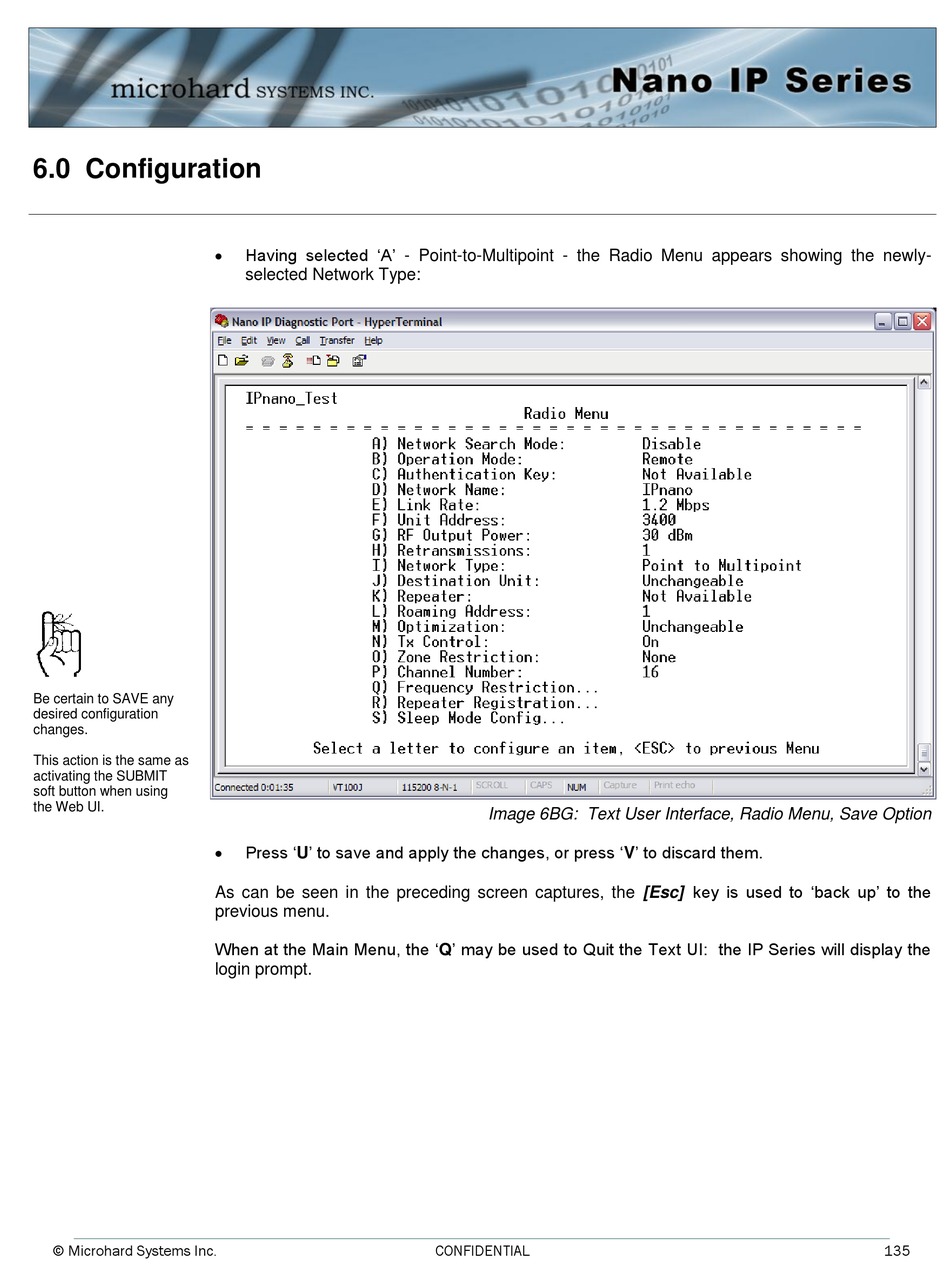

Having selected ‗A' - Point-to-Multipoint - the Radio Menu appears showing the newly-
selected Network Type:
Press ‗U' to save and apply the changes, or press ‗V' to discard them.
Image 6BG: Text User Interface, Radio Menu, Save Option
