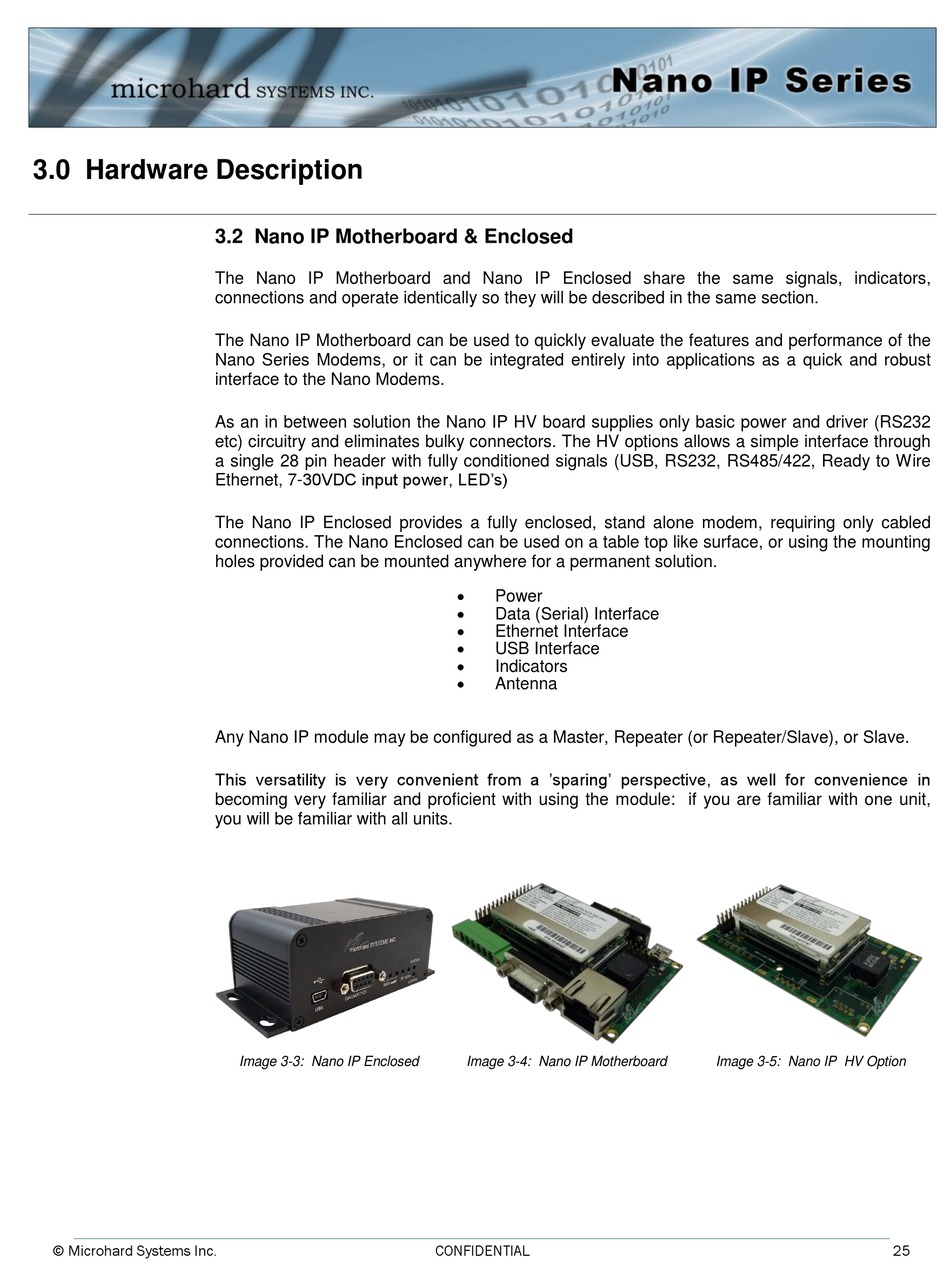

3.0 Hardware Description
3.2 Nano IP Motherboard & Enclosed
The Nano IP Motherboard and Nano IP Enclosed share the same signals, indicators,
connections and operate identically so they will be described in the same section.
The Nano IP Motherboard can be used to quickly evaluate the features and performance of the
Nano Series Modems, or it can be integrated entirely into applications as a quick and robust
interface to the Nano Modems.
As an in between solution the Nano IP HV board supplies only basic power and driver (RS232
etc) circuitry and eliminates bulky connectors. The HV options allows a simple interface through
a single 28 pin header with fully conditioned signals (USB, RS232, RS485/422, Ready to Wire
Ethernet, 7-30VDC input power, LED's)
The Nano IP Enclosed provides a fully enclosed, stand alone modem, requiring only cabled
connections. The Nano Enclosed can be used on a table top like surface, or using the mounting
holes provided can be mounted anywhere for a permanent solution.
Any Nano IP module may be configured as a Master, Repeater (or Repeater/Slave), or Slave.
This versatility is very convenient from a 'sparing' perspective, as well for convenience in
becoming very familiar and proficient with using the module: if you are familiar with one unit,
you will be familiar with all units.
© Microhard Systems Inc.
Image 3-3: Nano IP Enclosed

Power

Data (Serial) Interface

Ethernet Interface

USB Interface

Indicators

Antenna
Image 3-4: Nano IP Motherboard
CONFIDENTIAL
Image 3-5: Nano IP HV Option
