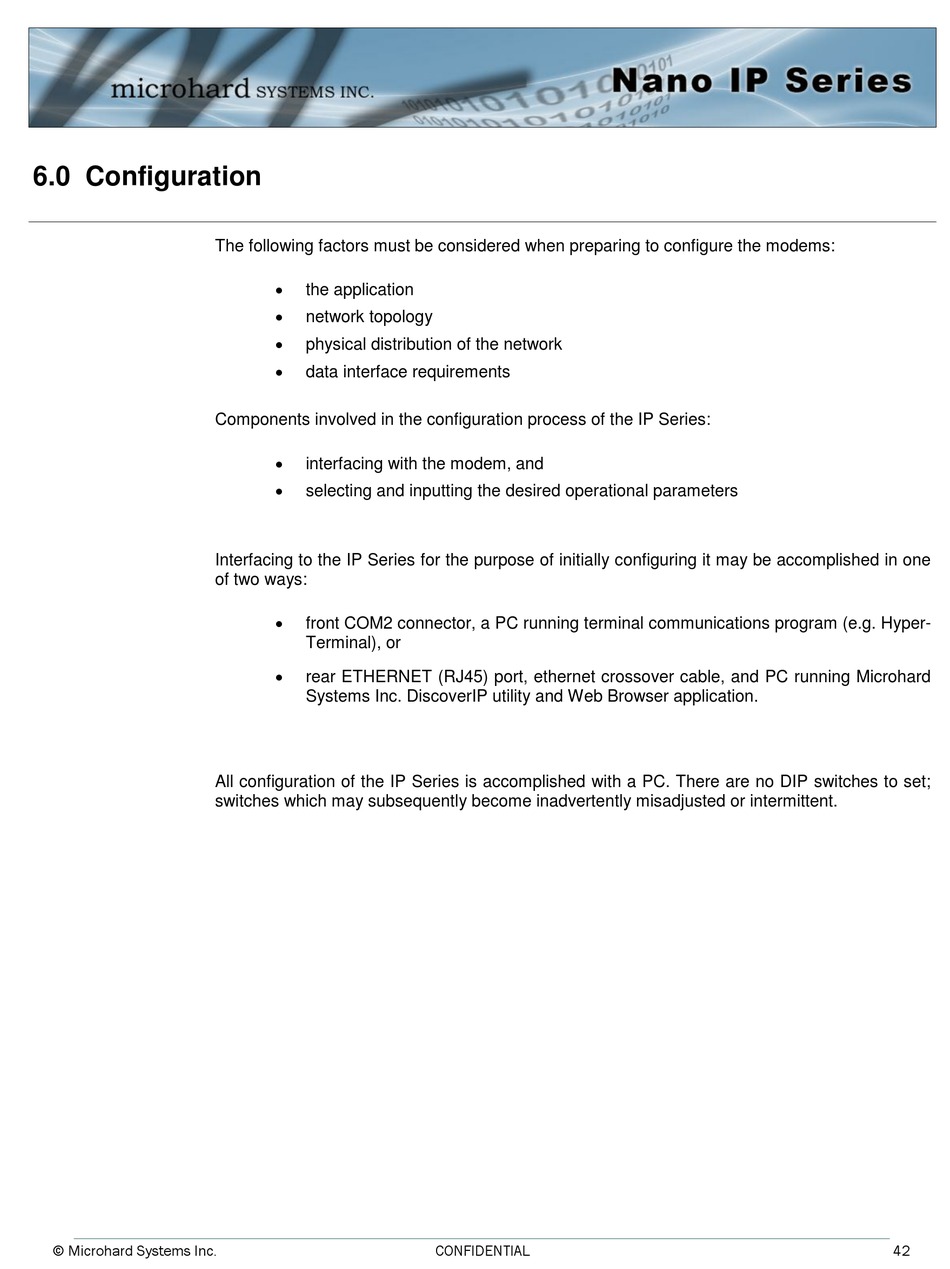

6.0 Configuration

The following factors must be considered when preparing to configure the modems:
Components involved in the configuration process of the IP Series:
Interfacing to the IP Series for the purpose of initially configuring it may be accomplished in one
of two ways:
All configuration of the IP Series is accomplished with a PC. There are no DIP switches to set;
switches which may subsequently become inadvertently misadjusted or intermittent.
© Microhard Systems Inc.

the application

network topology

physical distribution of the network

data interface requirements

interfacing with the modem, and

selecting and inputting the desired operational parameters

front COM2 connector, a PC running terminal communications program (e.g. Hyper-
Terminal), or

rear ETHERNET (RJ45) port, ethernet crossover cable, and PC running Microhard
Systems Inc. DiscoverIP utility and Web Browser application.
