3.0 Hardware Description
3.1.3 Nano IP OEM Pin-Out Description
1 59
J1
2 60
1 59
J2
2 60
Nano IP Bottom View
Pins 2, 4, 6, and 8 are
reserved for factory use.
Do not use these pins for
any other purpose.
The above drawing depicts a bottom view of the J1 connector. The corner pins (1, 2, 59, and
Inputs and outputs are
60) are printed directly upon it for convenient reference.
3.3V nominal (3.0V min
— 3.6V max) unless
otherwise specified.
A full description of the various pin connections and functions is provided on the pages that
follow.
See the Appendix for an example schematic for interfacing to the Nano IP OEM module.
© Microhard Systems Inc.
NC 2
NC 4
NC 6
NC 8
ETH_CAT6 10
ETH_CAT3 12
ETH_CAT2 14
ETH_CAT1 16
COM2_RxD 18
COM2_TxD 20
LED_RX 22
LED_TX 24
RSSI3_LED 26
RSSI2_LED 28
RSSI1_LED 30
COM1_CTS 32
COM1_RTS 34
COM1_DSR 36
COM1_RING 38
COM1_DTR 40
COM1_TxD 42
COM1_RxD
44
COM1_DCD 46
!RE_485 48
DE_485 50
GND 52
GND 54
GND 56
GND 58
GND 60

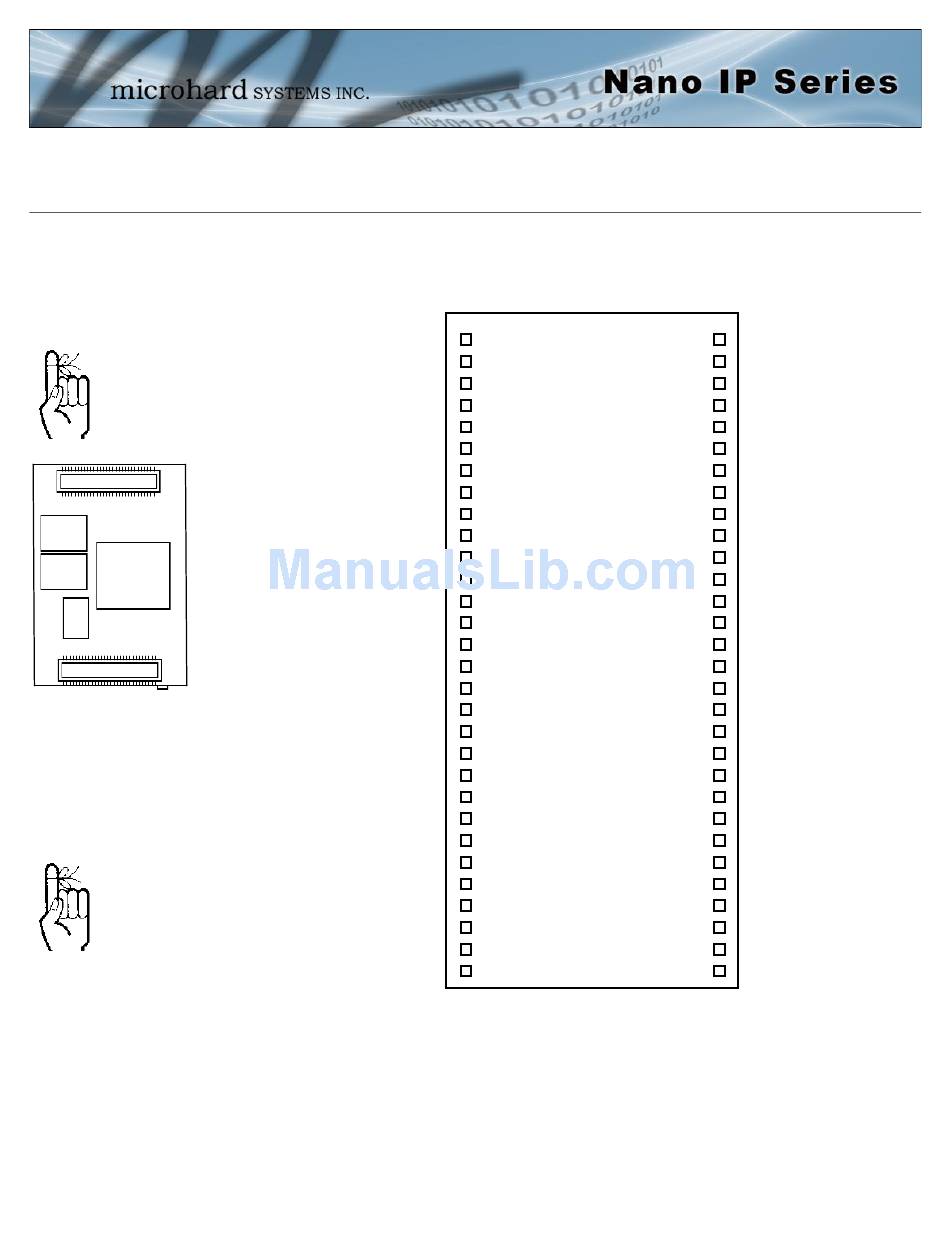

Drawing 3-5: J1 60-pin OEM Connector Pin-out
CONFIDENTIAL
1
3
5
7
9
11
13
15
17
19
21
23
Nano IP
25
(J1)
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
ETH_LINK_ACT_LED
ETH_SPEED_LED
Vclock
NC
NC
!WAKEUP_usr
!CONFIG
!RESET
Vbat
!RSMode
USB_DDM
USB_CNX
USB_DDP
Reserved
Reserved
Reserved
Reserved
USR_1
USR_2
USR_3
NC
NC
NC
NC
NC
Vcc (3.3V)
Vcc (3.3V)
Vcc (3.3V)
Vcc (3.3V)
Vcc (3.3V)
22
