6.0 Configuration
6.1.10.7 System Tools > Local Power Saving (Master)
When the unit is configured as a Master in the Radio Configuration menu, settings for Local
Power Saving will be listed under the System Tools Menu. The Local Power Saving Modes
provide power saving options for when the Master unit is not transmitting or receiving data.
Disable: Power Saving Mode is disabled by default.
Auto Wakeup: Unit will wakeup from activity on serial port,
Ethernet port or radio data, if the Radio Awake Time is a nonzero
value. Power consumption is about 35-45 mA @ 12VDC.
Radio will enter Power
Serial Port Wakeup: Unit will wakeup from serial port or radio data
Saving Mode 60 seconds
if Radio Awake Time is nonzero value. Power consumption is about
after system boot up.
15-25mA @ 12VDC.
Ethernet Port Wakeup: Unit will wakeup from Ethernet port or
radio data if Radio Awake Time is a nonzero value. Power
consumption is about 30-40mA @ 12VDC.
Power Shutdown: Timer control shutdown mode. Controlled by
Radio Awake Time and Radio Sleep Time parameters. System will
reboot when the radio wakes up. Power consumption is about 1mA
@ 12 VDC.
Defines how long the radio will keep awake. If set to 0, the radio will
not wakeup until received data from the port configured in the
Power Saving Mode (Serial or Ethernet ports).
© Microhard Systems Inc.

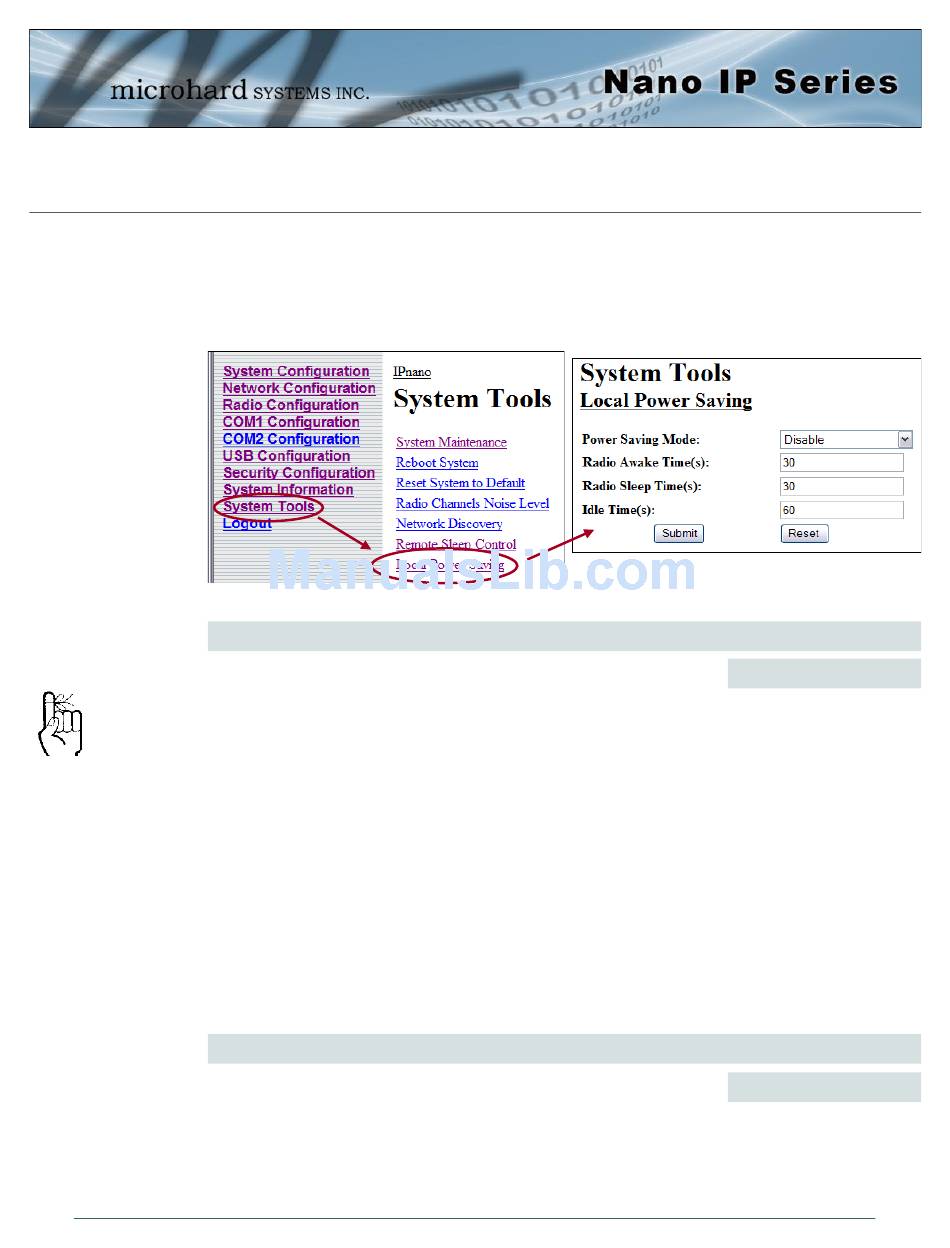

Image 6BA: System Tools: Local Power Saving
CONFIDENTIAL
Power Saving Mode
Values
Disable
Auto Wakeup
Serial Port Wakeup
Ethernet Port Wakeup
Power Shutdown
Radio Awake Time
Values (seconds)
30
0 - 65535
130
