3.0 Hardware Description
3.2.3 Connectors and Indicators
3.2.3.3 HV Motherboard
The Nano IP Series HV option provides signal conditioning for Power, RS232, RS485/422, USB, etc and
provides a single 28 pin interface, with populating the bulky connectors as seen on the standard
motherboard interface.
© Microhard Systems Inc.
Antenna
ENSURE CORRECT
PLACEMENT OF
RADIO ASSEMBLY

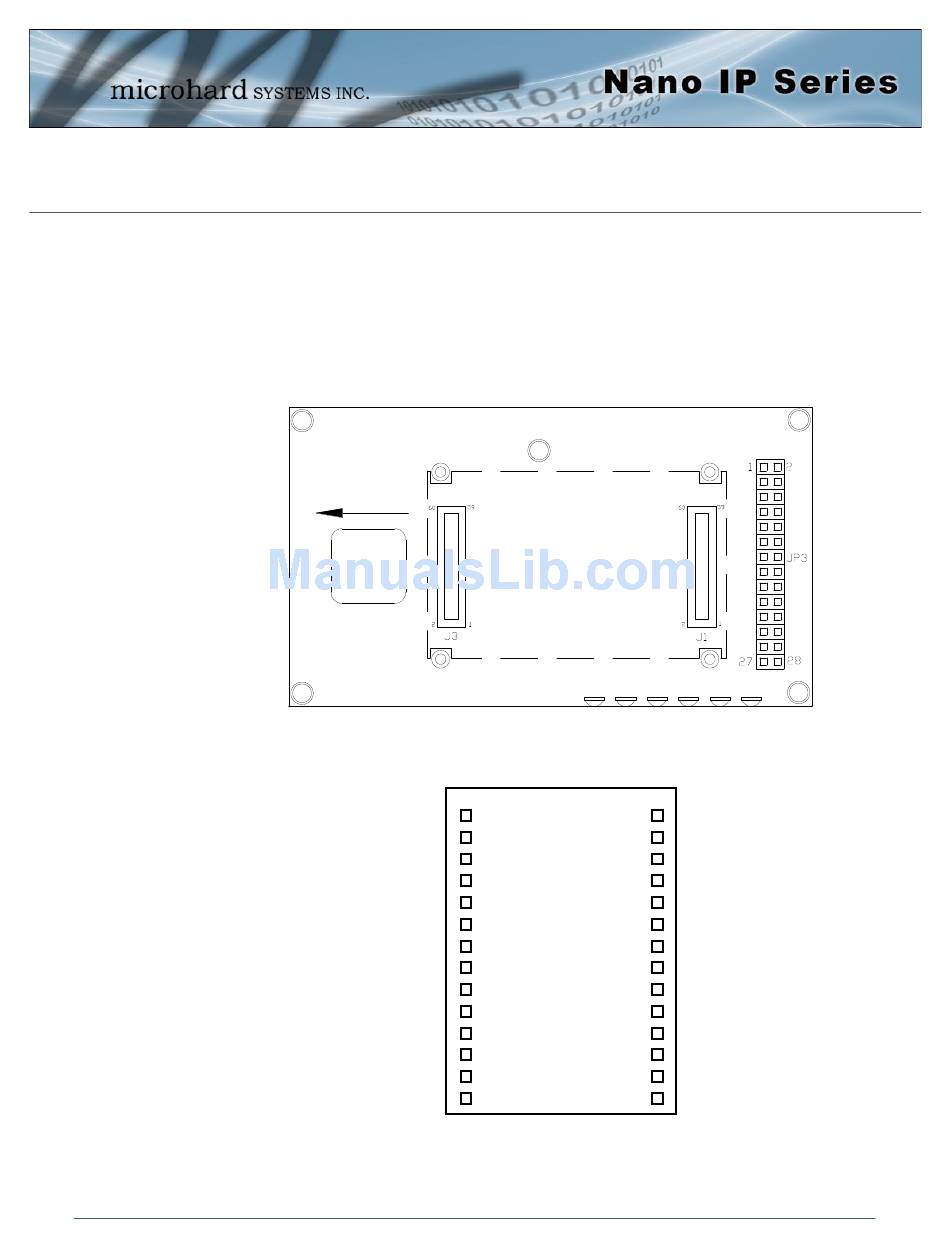

Drawing 3-14: Nano IP Motherboard (HV) Top View
COM2_RxD
1
COM2_TxD
3
LED_TX
5
LED_RX
7
9
STATUS_LED
11
GND
13
ETH_CAT1
15
ETH_CAT2
ETH_CAT3
17
ETH_CAT6
19
USB_DP(+)
21
USB_DM(-)
23
USB_CNX
25
+Vin
27
Drawing 3-15: Nano IP Motherboard JP3 Pin-out
CONFIDENTIAL
2
RX+ (RS485/422)
4
RX- (RS485/422)
6
TX- (RS485/422)
8
TX+ (RS485/422)
Nano IP
10
COM1_CTS
Motherboard
12
COM1_RTS
(JP3)
14
COM1_DCD
16
COM1_TxD
18
GND
20
COM1_RxD
22
COM1_DSR
24
COM1_DTR
26
!CONFIG
28
+Vin
30
