6.0 Configuration

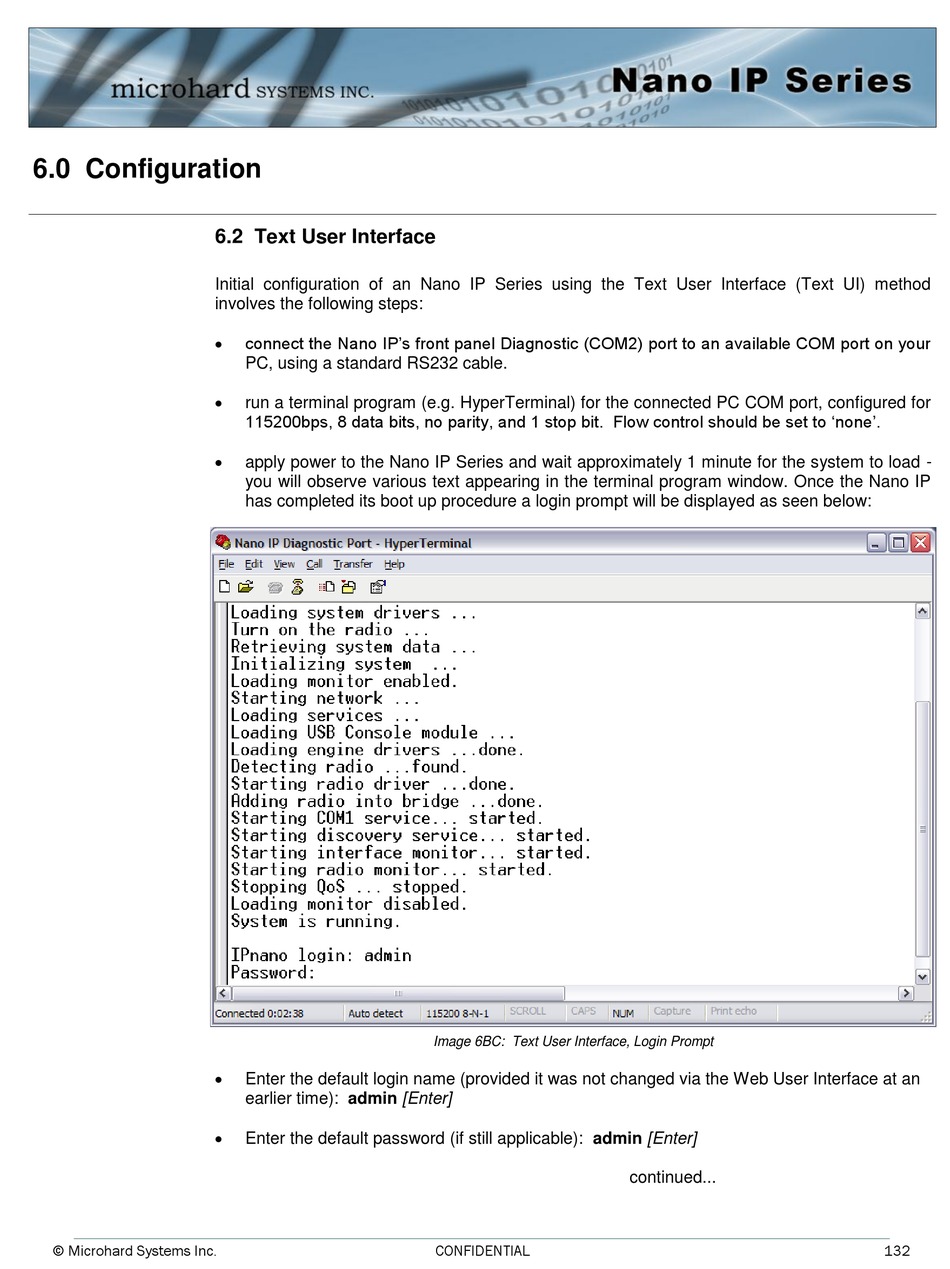

6.2 Text User Interface

Initial configuration of an Nano IP Series using the Text User Interface (Text UI) method
involves the following steps:





© Microhard Systems Inc.
connect the Nano IP's front panel Diagnostic (COM2) port to an available COM port on your
PC, using a standard RS232 cable.
run a terminal program (e.g. HyperTerminal) for the connected PC COM port, configured for
115200bps, 8 data bits, no parity, and 1 stop bit. Flow control should be set to ‗none'.
apply power to the Nano IP Series and wait approximately 1 minute for the system to load -
you will observe various text appearing in the terminal program window. Once the Nano IP
has completed its boot up procedure a login prompt will be displayed as seen below:
Enter the default login name (provided it was not changed via the Web User Interface at an
earlier time): admin [Enter]
Enter the default password (if still applicable): admin [Enter]
Image 6BC: Text User Interface, Login Prompt
CONFIDENTIAL
continued...
