6.0 Configuration

6.1.4 Network Configuration

The Network Configuration menu consists of a number of submenus, all of which provide
various options pertaining to configuring the units to be part of an IP network. These settings do
not effect the ‗radio' communications network aspect of the system, however, be mindful of the
Network Type (Radio Configuration menu) as that dictates the possibilities for the flow of
network data.
For a basic implementation, only the Local IP Configuration (submenu) options need to be
defined.

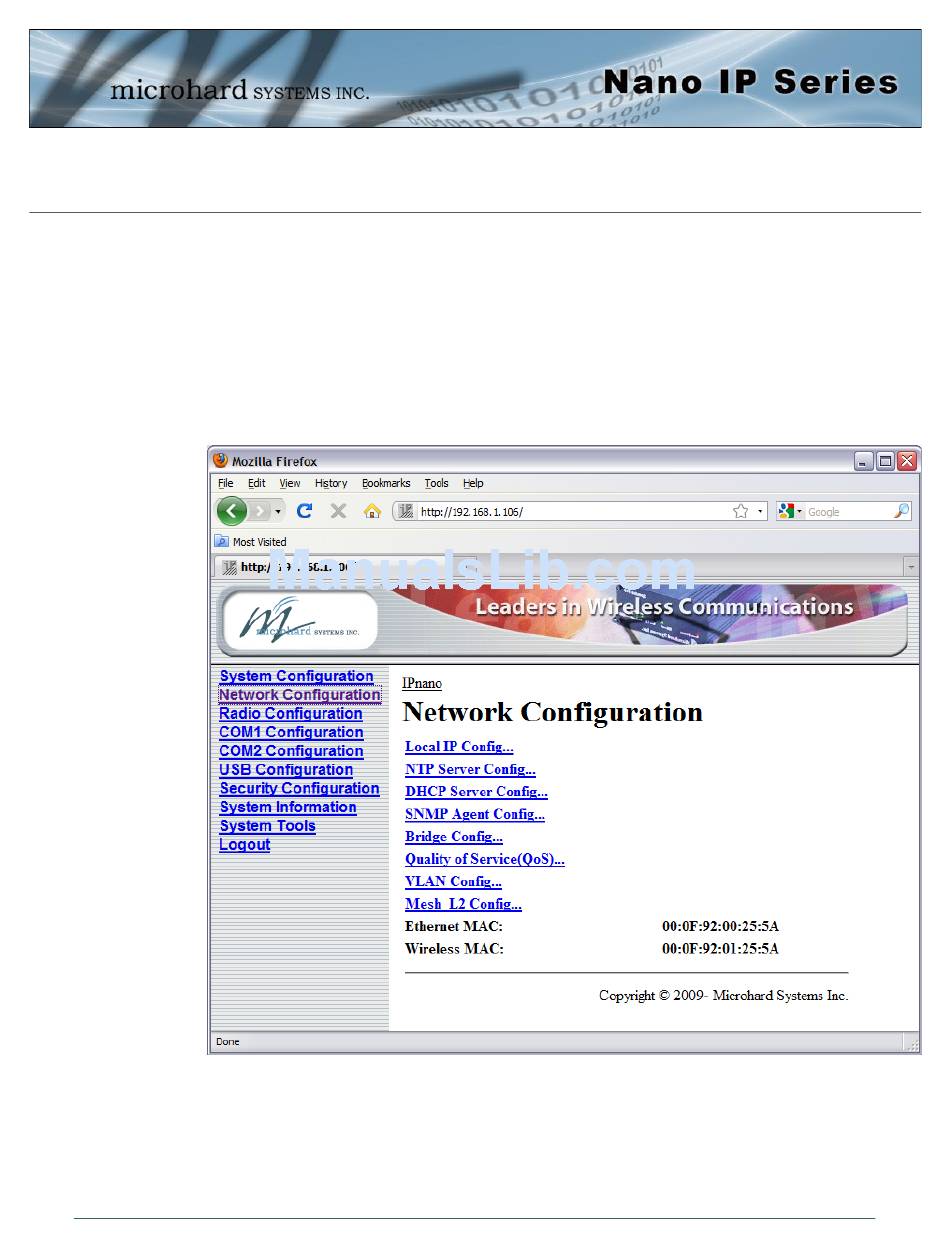

Image 6E: Network Configuration, Top Level Menu
The Ethernet MAC address (as displayed above) is that of the ETHERNET interface located at
the rear of the Nano IP Series.
The Wireless MAC address is for internal purposes.
