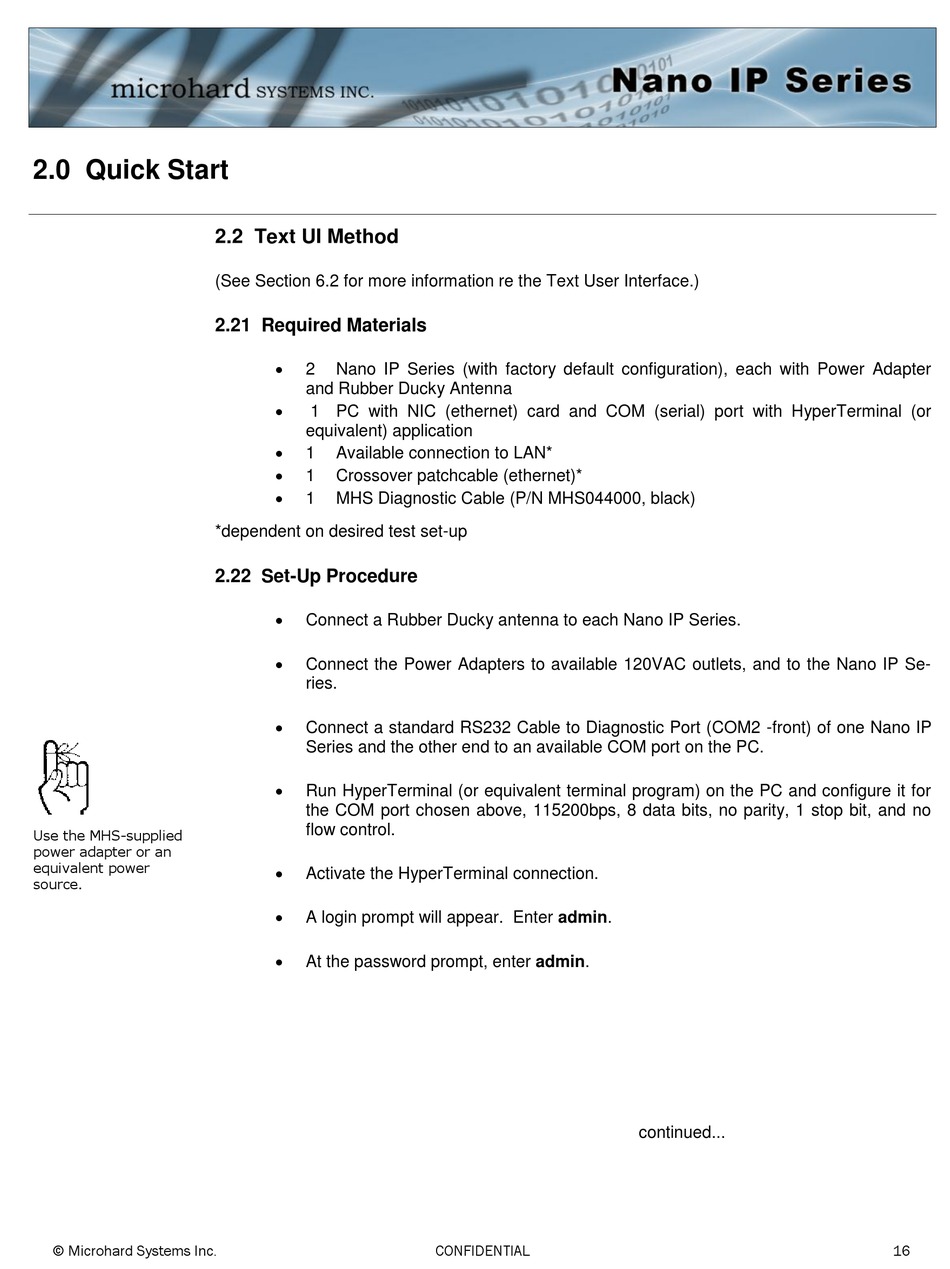

2.0 Quick Start
2.2 Text UI Method
(See Section 6.2 for more information re the Text User Interface.)

2.21 Required Materials

*dependent on desired test set-up

2.22 Set-Up Procedure

Use the MHS-supplied
power adapter or an
equivalent power
source.
© Microhard Systems Inc.

2 Nano IP Series (with factory default configuration), each with Power Adapter
and Rubber Ducky Antenna

1 PC with NIC (ethernet) card and COM (serial) port with HyperTerminal (or
equivalent) application

1 Available connection to LAN*

1 Crossover patchcable (ethernet)*

1 MHS Diagnostic Cable (P/N MHS044000, black)

Connect a Rubber Ducky antenna to each Nano IP Series.

Connect the Power Adapters to available 120VAC outlets, and to the Nano IP Se-
ries.

Connect a standard RS232 Cable to Diagnostic Port (COM2 -front) of one Nano IP
Series and the other end to an available COM port on the PC.

Run HyperTerminal (or equivalent terminal program) on the PC and configure it for
the COM port chosen above, 115200bps, 8 data bits, no parity, 1 stop bit, and no
flow control.

Activate the HyperTerminal connection.

A login prompt will appear. Enter admin.

At the password prompt, enter admin.
CONFIDENTIAL
continued...
