6.0 Configuration
This window displays information related to the COM2 (Diagnostic) port located on the front of
the Nano IP Series.
The other displayed parameters are not all applicable. Of most use are the transmitted and
received bytes/packets: these will indicate if data is coming into and out of the COM2 port.
© Microhard Systems Inc.

COM2 Port Status
Disabled (for ‗data' traffic) by default. Being 'disabled' enables the port to be
used for the Text User Interface.
Configure via COM2 Configuration menu.

COM2 Connect As
Display of chosen protocol with respect to serial gateway function.
Configure via COM2 Configuration menu.

COM2 Connect Status
If port is enabled and there is data traffic, this will display ‗Active'.

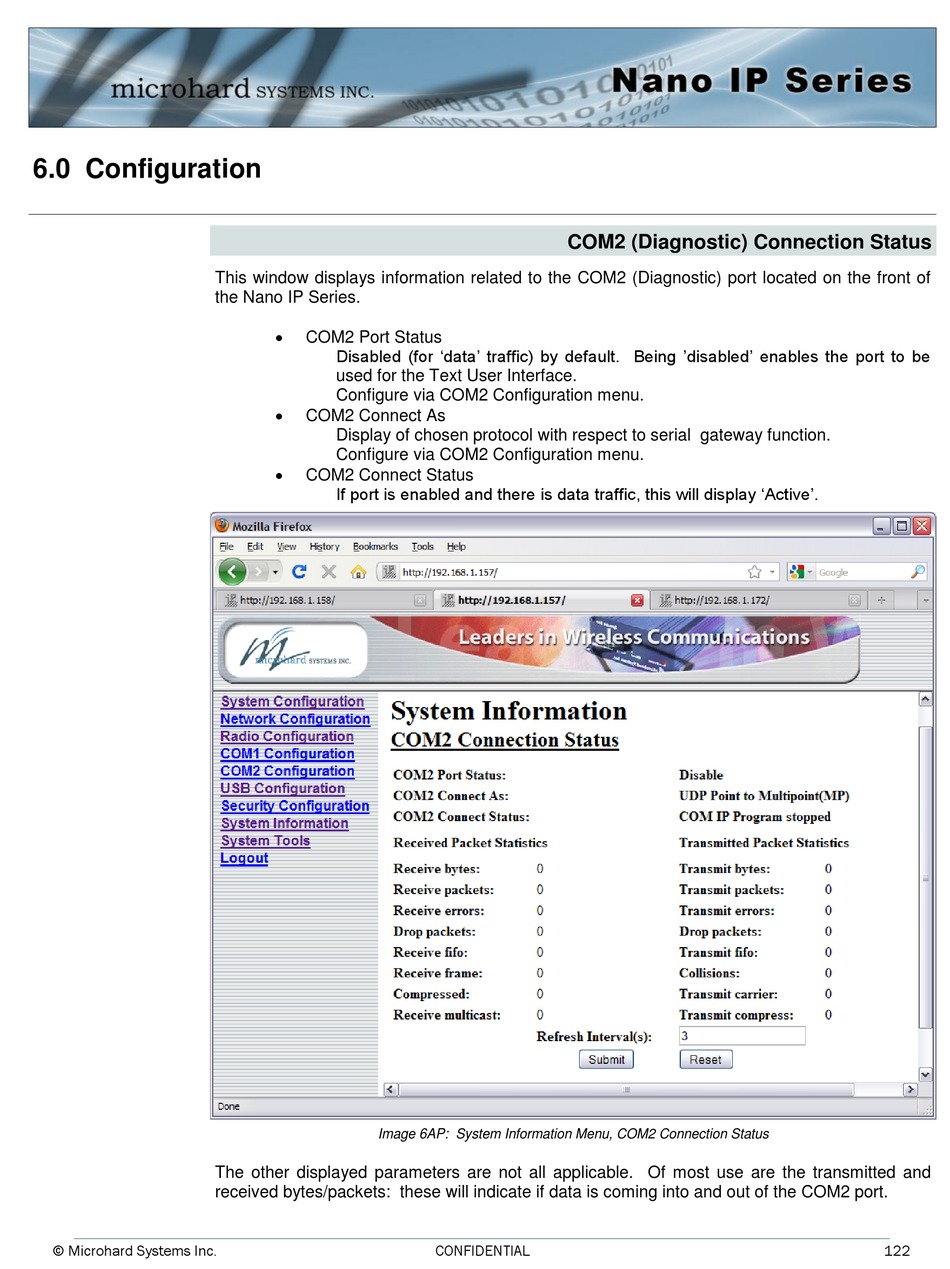

Image 6AP: System Information Menu, COM2 Connection Status
CONFIDENTIAL
COM2 (Diagnostic) Connection Status
