Microhard Systems Nano IP Series Operating Manual page 120

6.0 Configuration
The Radio Information window provides information related to the ‗radio' (wireless) portion of the
Nano IP.
Not all statistics parameters displayed are applicable.
The Received and Transmitted bytes and packets indicate the respective amount of data which
has been moved through the radio.
The Error counts reflect those having occurred on the wireless link.
Lost Sync indicates how many times the Nano IP being viewed has lost synchronization with the
Master Nano IP.
© Microhard Systems Inc.

Serial Number
Serial number of radio (RF) module within Nano IP.

Version
Firmware version within radio module.

Temperature (C)
Temperature as measured within the radio module.

Voltage (V)
Supply voltage as measured on motherboard.

RSSI (dBm)
Receive Signal Strength Indicator measurement.

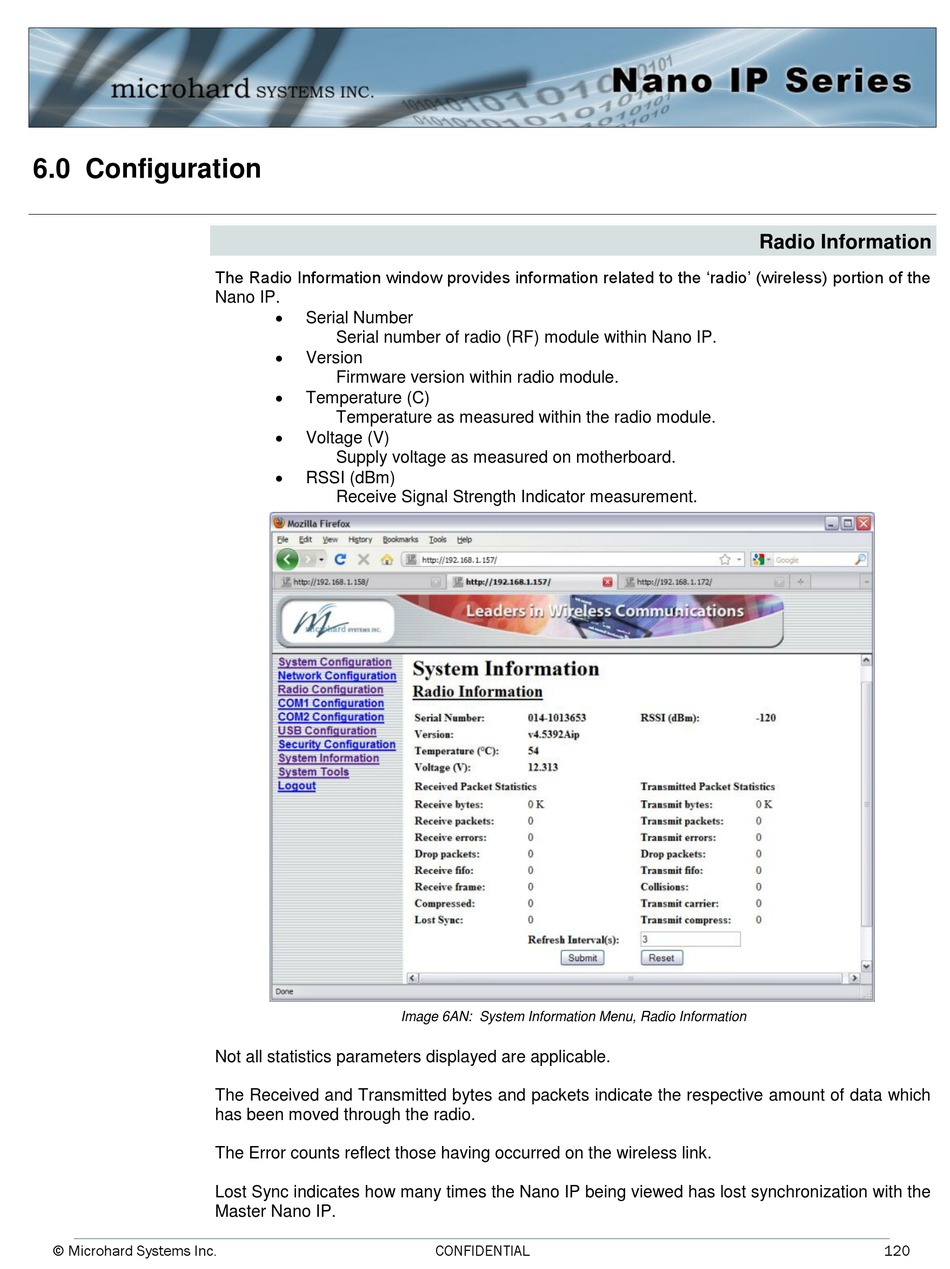

Image 6AN: System Information Menu, Radio Information
CONFIDENTIAL
Radio Information
120
