3.0 Hardware Description

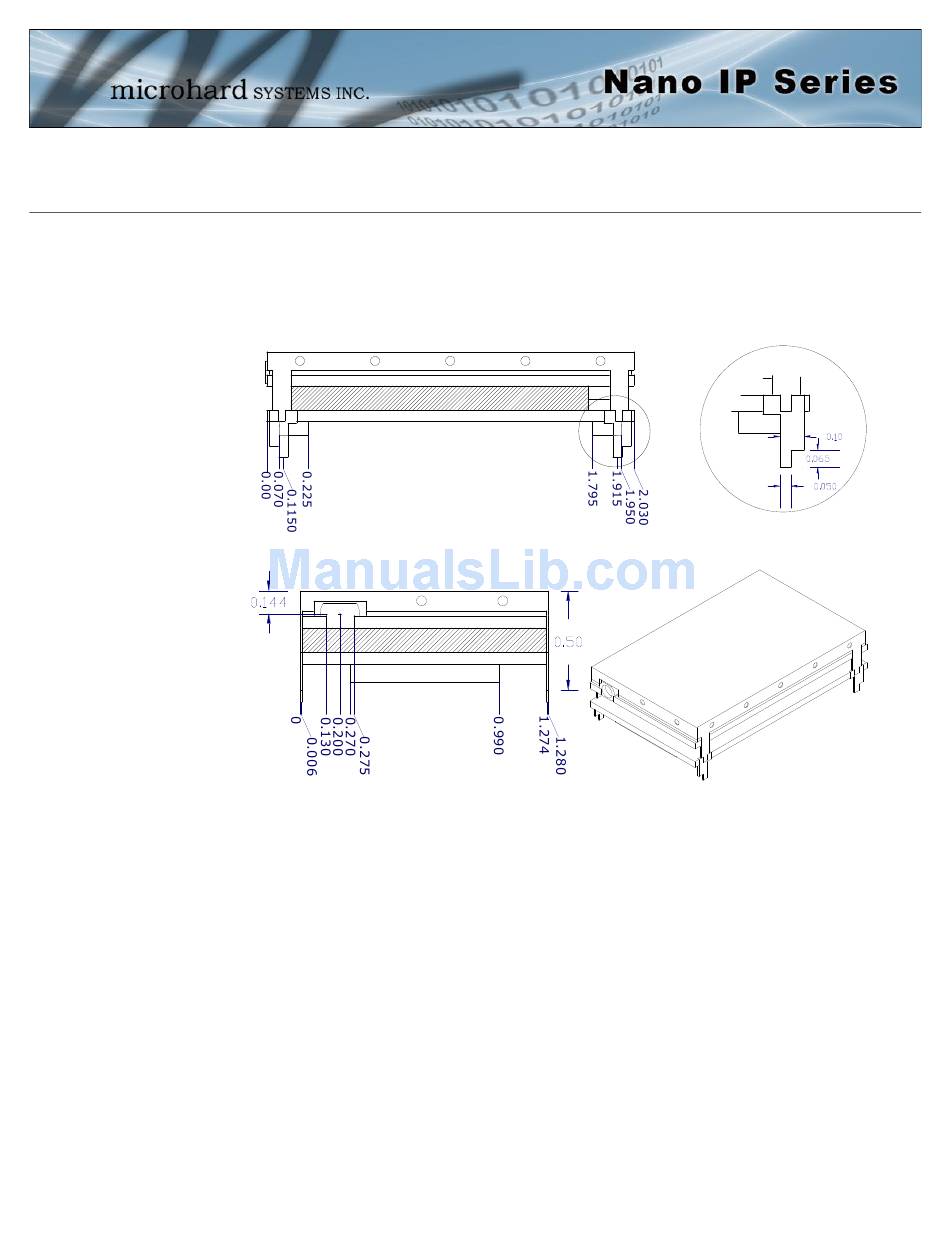

3.1.1 Nano IP OEM Mechanical Drawing

The Nano IP Series OEM Module has an extremely small form factor as see in Drawing 3-3 and
Drawing 3-4 below. Refer to the Appendix for detailed connector placement and
dimensions.
Detail 'A'
Detail 'A'
Drawing 3-3: Nano IP OEM Side View
Drawing 3-4: Nano IP OEM Front View
Notes: The dimension unit is inches.
3.1.2 Nano OEM Connectors
Antenna
The Nano IP OEM Module uses an MMCX connector.
Data
The Data connectors use AVX-Kyocera 5046 Series 60 pin board to board connectors. The
manufacturers part numbers are listed below, or the mating connector is available directly from
Microhard Systems.
AVX-Kyocera Part Number: 24-5046-060-600-829+
Microhard Systems Inc Part Number: MHS030510 (Strips of 100)
The above part numbers are for the mating connector required to interface to the Nano IP Series
Modems.
To assist in the layout or circuits required to interface with the Nano Series Modems, see the
Appendix.
