3.0 Hardware Description

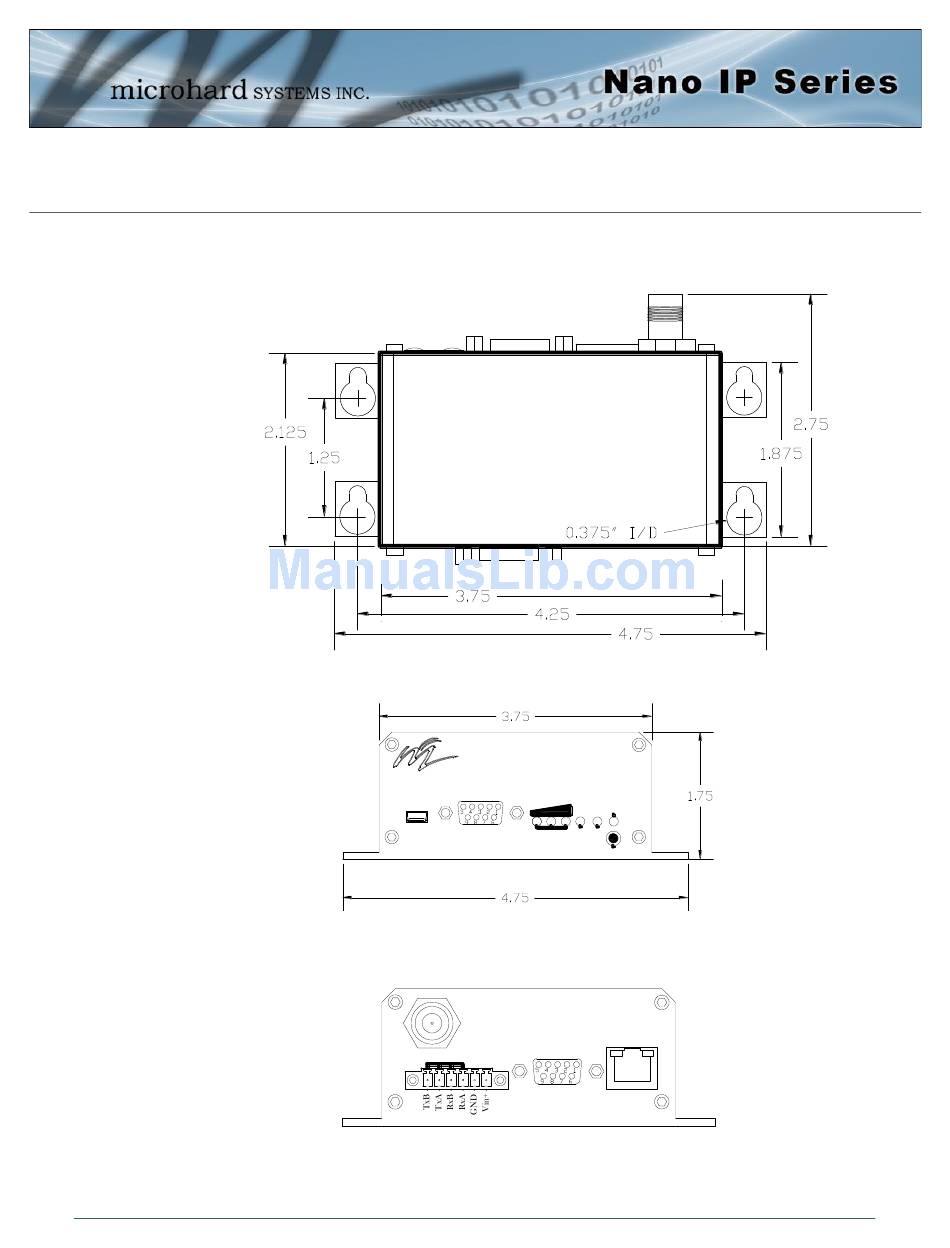

3.2.2 Nano IP Enclosed Mechanical Drawings

Nano IP Enclosed
Top View
Front
Drawing 3-9: Nano IP Enclosed Top View
microhard SYSTEMS INC.
STATUS
USB DIAGNOSTIC RSSI TX RX
CONFIG
Front View
Drawing 3-10: Nano IP Enclosed Front View
ANTENNA
RS485/422
DATA ETHERNET
Back View
Image 3-11: Nano IP Enclosed Back View
Notes: The dimension unit is inches.
