Everyone-To-Everyone (E2E) - Microhard Systems IP-921 Operating Manual

5.0 Network Topologies
Each unit must have its
own unique Unit Address.
© Microhard Systems Inc.
Example 5.4.1 (continued)
The Remotes will all be configured as per the above screen cap-
ture, with the exception of the UNIT ADDRESS. Each Remote (of
the 3 in this example) must have its own unique UNIT ADDRESS,
e.g. 50, 51, and 52.
CONFIDENTIAL
IP9xx Series

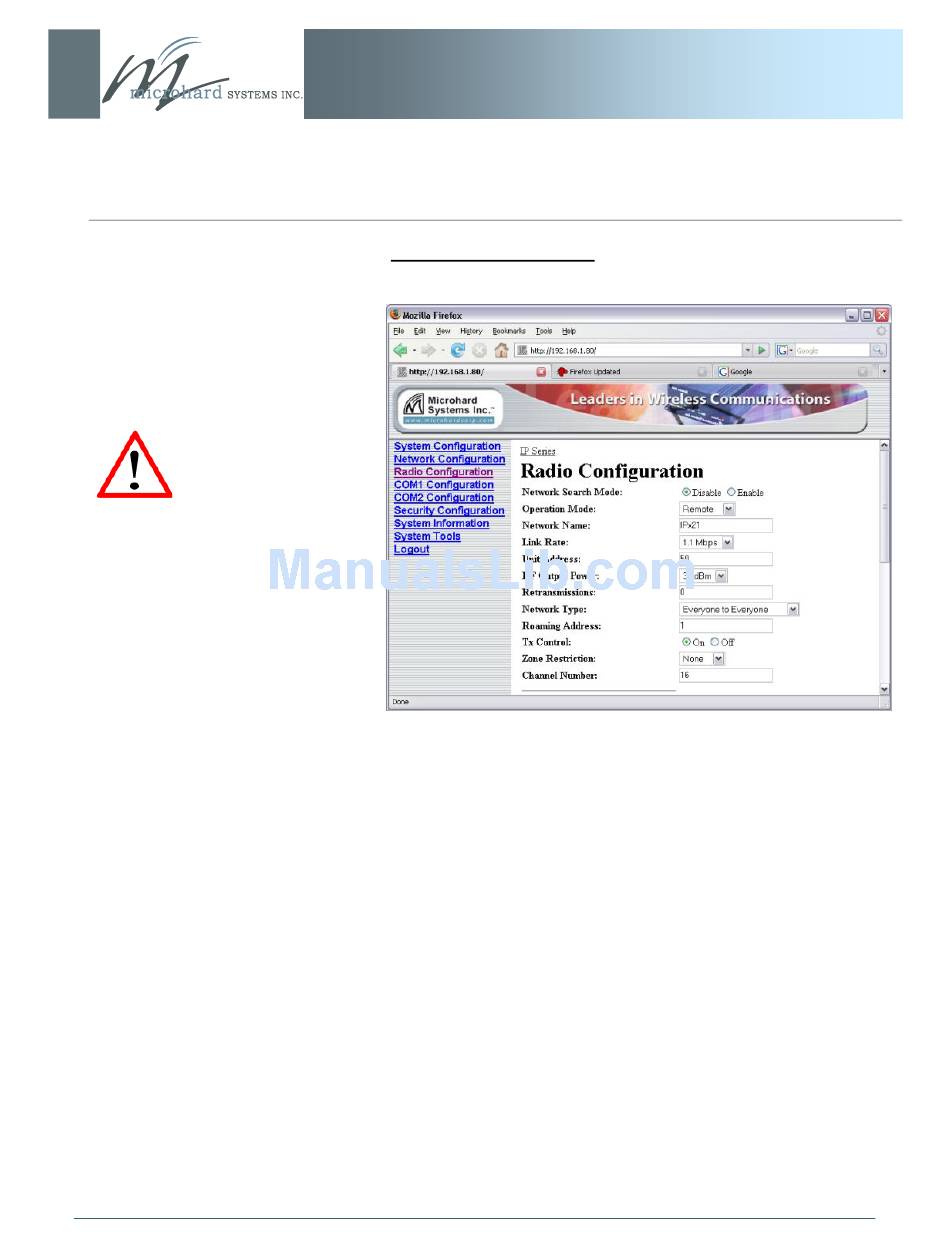

Image 5K: E2E Example 5.4.1: Remote
38
