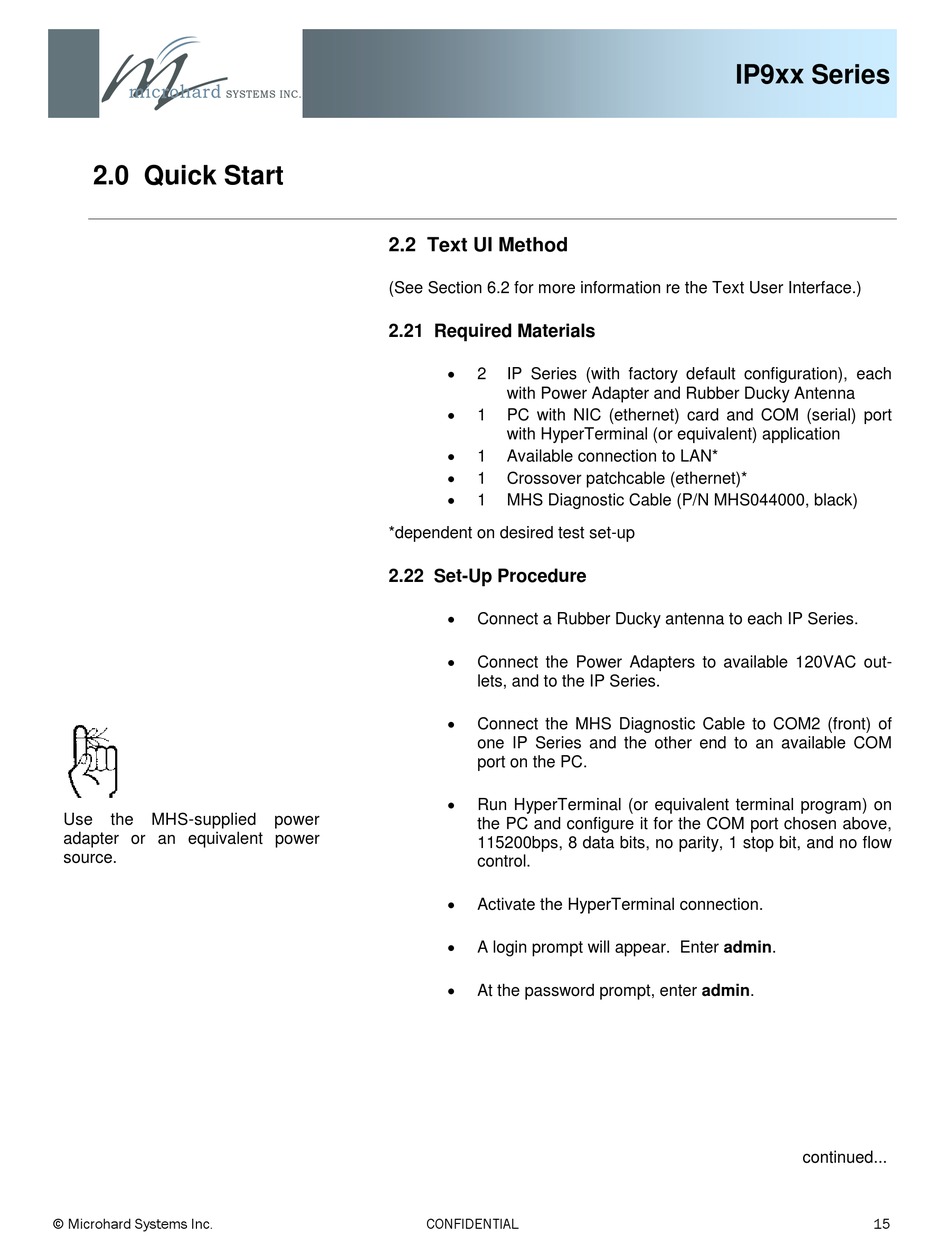

2.0 Quick Start
Use the MHS-supplied
adapter or an equivalent power
source.
© Microhard Systems Inc.
2.2 Text UI Method
(See Section 6.2 for more information re the Text User Interface.)

2.21 Required Materials






*dependent on desired test set-up

2.22 Set-Up Procedure





power



CONFIDENTIAL
2 IP Series (with factory default configuration), each
with Power Adapter and Rubber Ducky Antenna
1 PC with NIC (ethernet) card and COM (serial) port
with HyperTerminal (or equivalent) application
1 Available connection to LAN*
1 Crossover patchcable (ethernet)*
1 MHS Diagnostic Cable (P/N MHS044000, black)
Connect a Rubber Ducky antenna to each IP Series.
Connect the Power Adapters to available 120VAC out-
lets, and to the IP Series.
Connect the MHS Diagnostic Cable to COM2 (front) of
one IP Series and the other end to an available COM
port on the PC.
Run HyperTerminal (or equivalent terminal program) on
the PC and configure it for the COM port chosen above,
115200bps, 8 data bits, no parity, 1 stop bit, and no flow
control.
Activate the HyperTerminal connection.
A login prompt will appear. Enter admin.
At the password prompt, enter admin.
IP9xx Series
continued...
