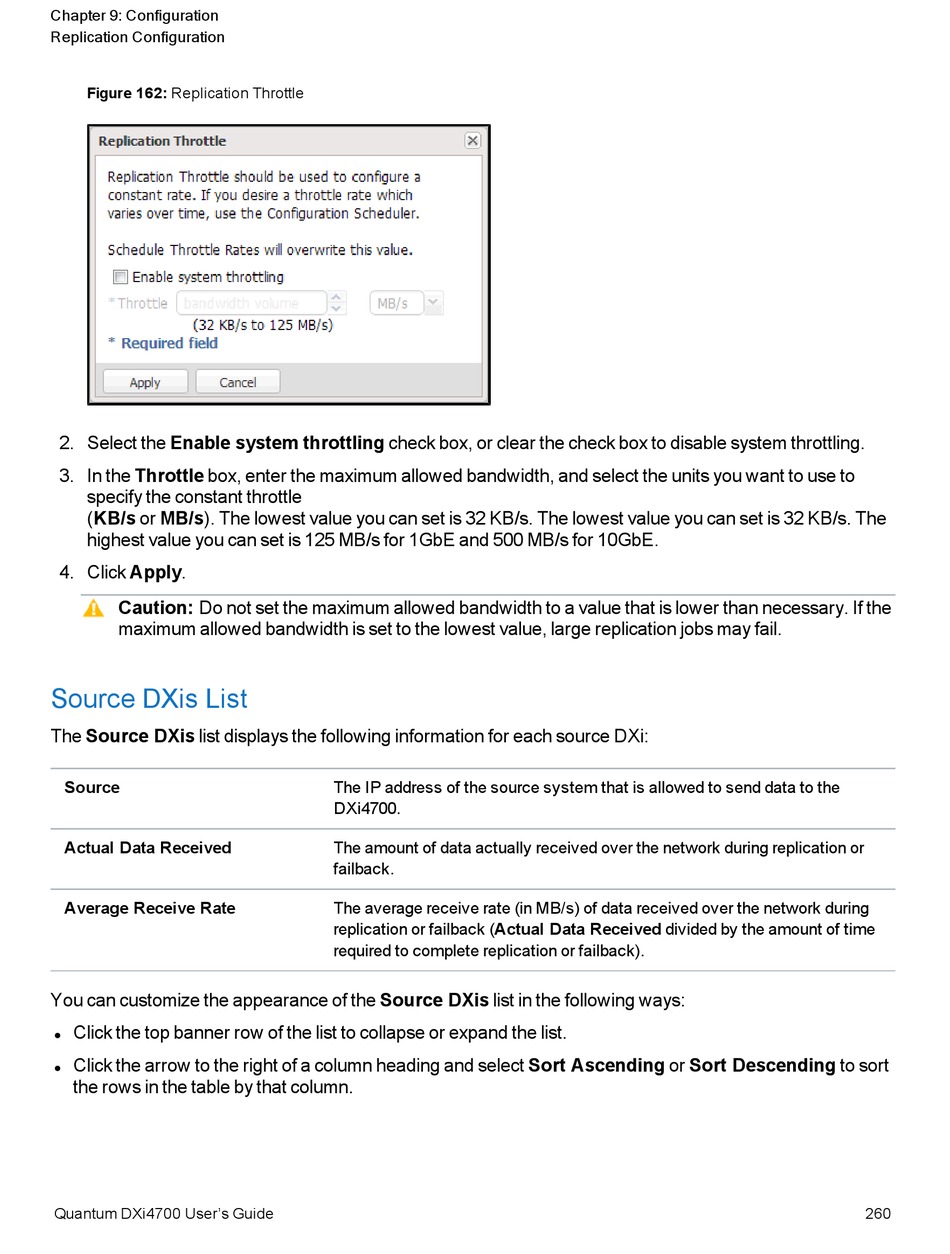

Quantum DXi4700 User Manual page 260

Chapter 9: Configuration
Replication Configuration
Figure 162: Replication Throttle
2. Select the Enable system throttling check box, or clear the check box to disable system throttling.
3. In the Throttle box, enter the maximum allowed bandwidth, and select the units you want to use to
specify the constant throttle
(KB/s or MB/s). The lowest value you can set is 32 KB/s. The lowest value you can set is 32 KB/s. The
highest value you can set is 125 MB/s for 1GbE and 500 MB/s for 10GbE.
4. Click Apply.
Caution: Do not set the maximum allowed bandwidth to a value that is lower than necessary. If the
maximum allowed bandwidth is set to the lowest value, large replication jobs may fail.
Source DXis List
The Source DXis list displays the following information for each source DXi:
Source
Actual Data Received
Average Receive Rate
You can customize the appearance of the Source DXis list in the following ways:
Click the top banner row of the list to collapse or expand the list.
l
Click the arrow to the right of a column heading and select Sort Ascending or Sort Descending to sort
l
the rows in the table by that column.
Quantum DXi4700 User's Guide
The IP address of the source system that is allowed to send data to the
DXi4700.
The amount of data actually received over the network during replication or
failback.
The average receive rate (in MB/s) of data received over the network during
replication or failback (Actual Data Received divided by the amount of time
required to complete replication or failback).
260
