11.6

USB Connectors

Four USB connectors (two twin Series A) are located between the SCSI port and
FC-AL port.

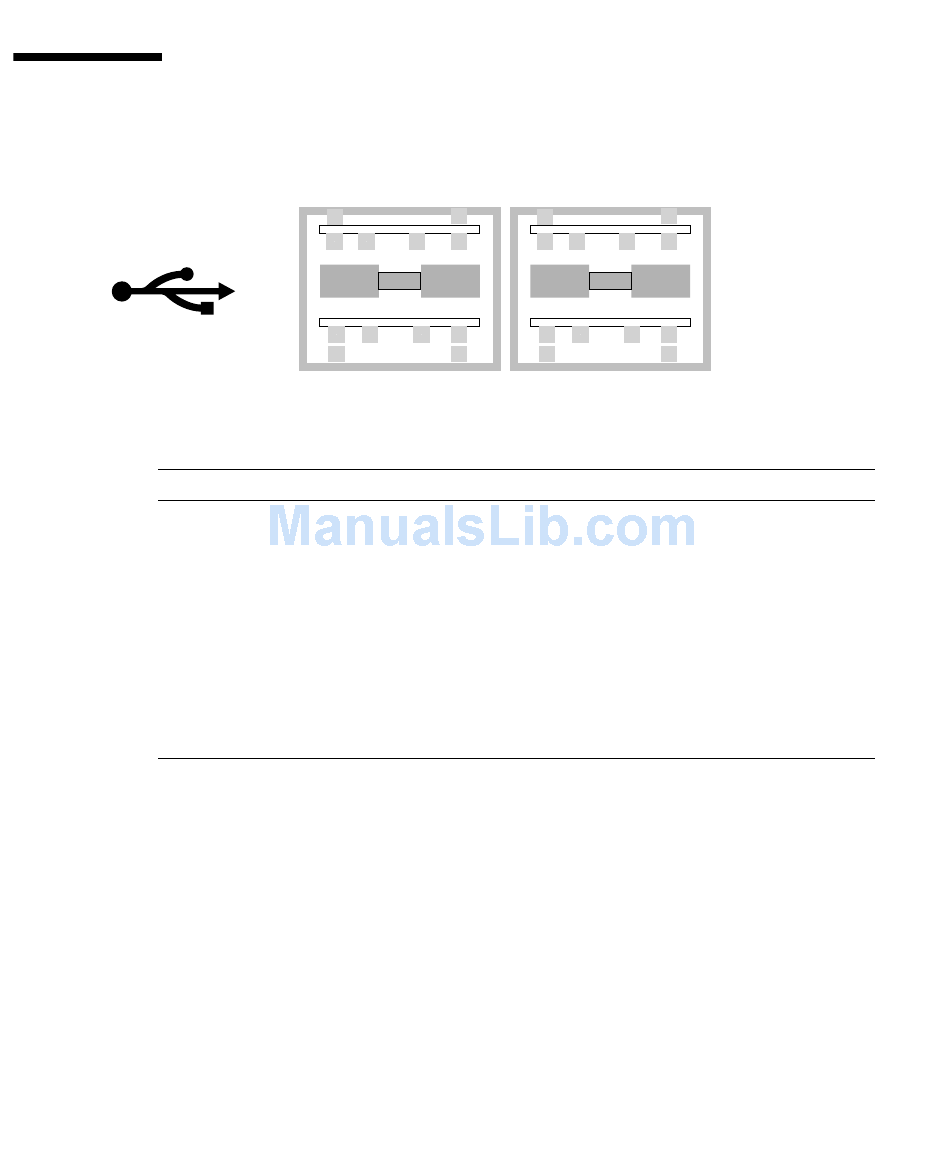

FIGURE 11-8
TABLE 11-8
Pin
A1
A2
A3
A4
B1
B2
B3
B4
11-10 Netra T4 AC100/DC100 Service and System Reference Manual • August 2001
2 3
1
2 3
1
Twin Series A USB Connector
USB Connector Pinout
Description
USB0_VCC +5 VDC
Port0Data -
Port0Data +
GND
USB1_VCC +5 VDC
Port1Data -
Port1Data +
GND
4 2 3
1
4 2 3
1
Pin Description
C1 USB2_VCC +5 VDC
C2 Port2Data -
C3 Port2Data +
C4 GND
D1 USB3_VCC +5 VDC
D2 Port3Data -
D3 Port3Data +
D4 GND
4
4
