Ethernet Connector; Figure 11-5 Connecting External Mass Storage Devices; Figure 11-6 Rj45 Tpe Socket; Table 11-5 Tpe Connector Pinout - Sun Microsystems Netra T4 AC100 Service And System Reference Manual

SYSTEM
ALARM 1
ALARM 2
FIGURE 11-5
11.4

Ethernet Connector

FIGURE 11-6
TABLE 11-5
Pin
1
2
3
4
11-8 Netra T4 AC100/DC100 Service and System Reference Manual • August 2001
Non-Sun device
Non-Sun device

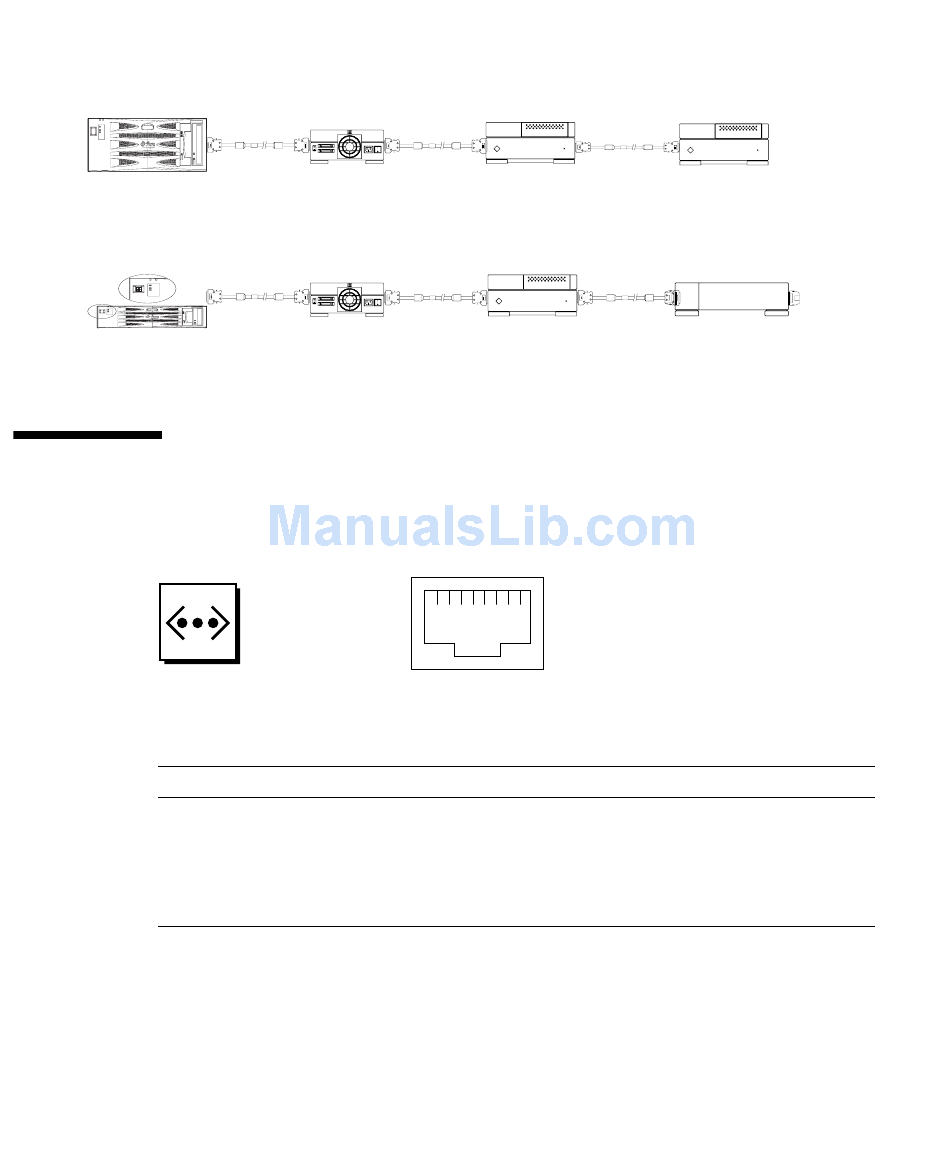

Connecting External Mass Storage Devices
RJ45 TPE Socket
TPE Connector Pinout
Description
Transmit Data +
Transmit Data –
Receive Data +
Common Mode Termination
Sun device
Sun device
Adaptor cable
1 8
Pin Description
5 Common Mode Termination
6 Receive Data –
7 Common Mode Termination
8 Common Mode Termination
Sun device
50-pin device
Terminator
