Provision ISR Ultra-Z IP series User Manual page 76

TITLE:
2)
Move the cursor here and click IRIS + to enter the setup of Pattern Title .Check the detailed above in
DOME TITLE settings.
<SET>: Move the cursor here and click IRIS + to enter. Click the dome up/down/left/right, make the zoom
3)
in/out and click IRIS + to save the pattern tour.
START: Move the cursor here and click IRIS + to start the current pattern tour.
4)
DELETE: Move the cursor here and click IRIS + to delete the current pattern tour.
5)

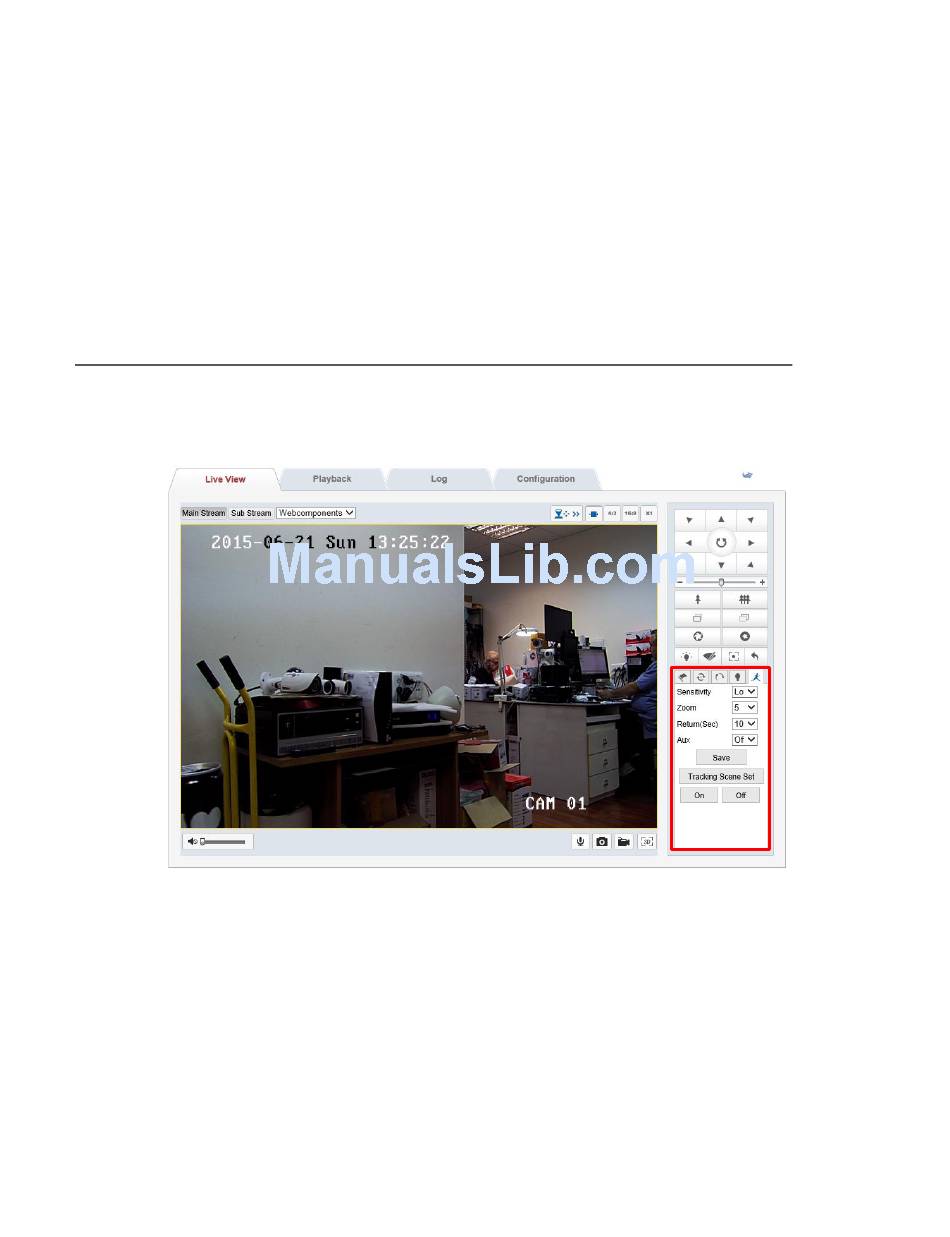

Auto Tracking Menu (This can be set up through the web-client as well):
With Auto tracking active, the dome will auto track the moving objects entering the scene.
When the object is moving out of the scene, the dome will return to a preset position as
defined after the defined time.
SENSITIVITY: The user can set up the auto tracking sensitivity under this menu. When set as LOW, the dome
will do auto tracking when obvious object entering the screen. When set as HIGH, the dome will do auto
tracking when small object moving into the screen. Move the cursor there and click the IRIS + to enter. The options
include: LOW, MID and HIGH.
TARGET: To set up the size of the tracking object. The options include Large. MID and SMALL.
AUX: If set "ON" here, the object auto tracking will activate alarm aux output at the same time. Click IRIS + to
enter to select "ON" or "OFF"
ZOOM MATCH: Under the auto tracking model, if turn on the function of ZOOM MATCH, the dome will do
zooming in and out during auto tracking to keep the right proportion between the object and background. Move
83
