Provision ISR Ultra-Z IP series User Manual page 37

Steps:
1. Enter the ROI Settings interface
Configuration > Advanced Configuration > Video / Audio > ROI
2. Select a Region No..
3. Check the check box of Enable under Fixed Region.
4. Click and draw a red frame in the live view image.
5. Adjust the ROI level from 1 to 6. The higher the value, the better image quality in the red frame.
6. Enter a Region Name and click Save to save the settings.

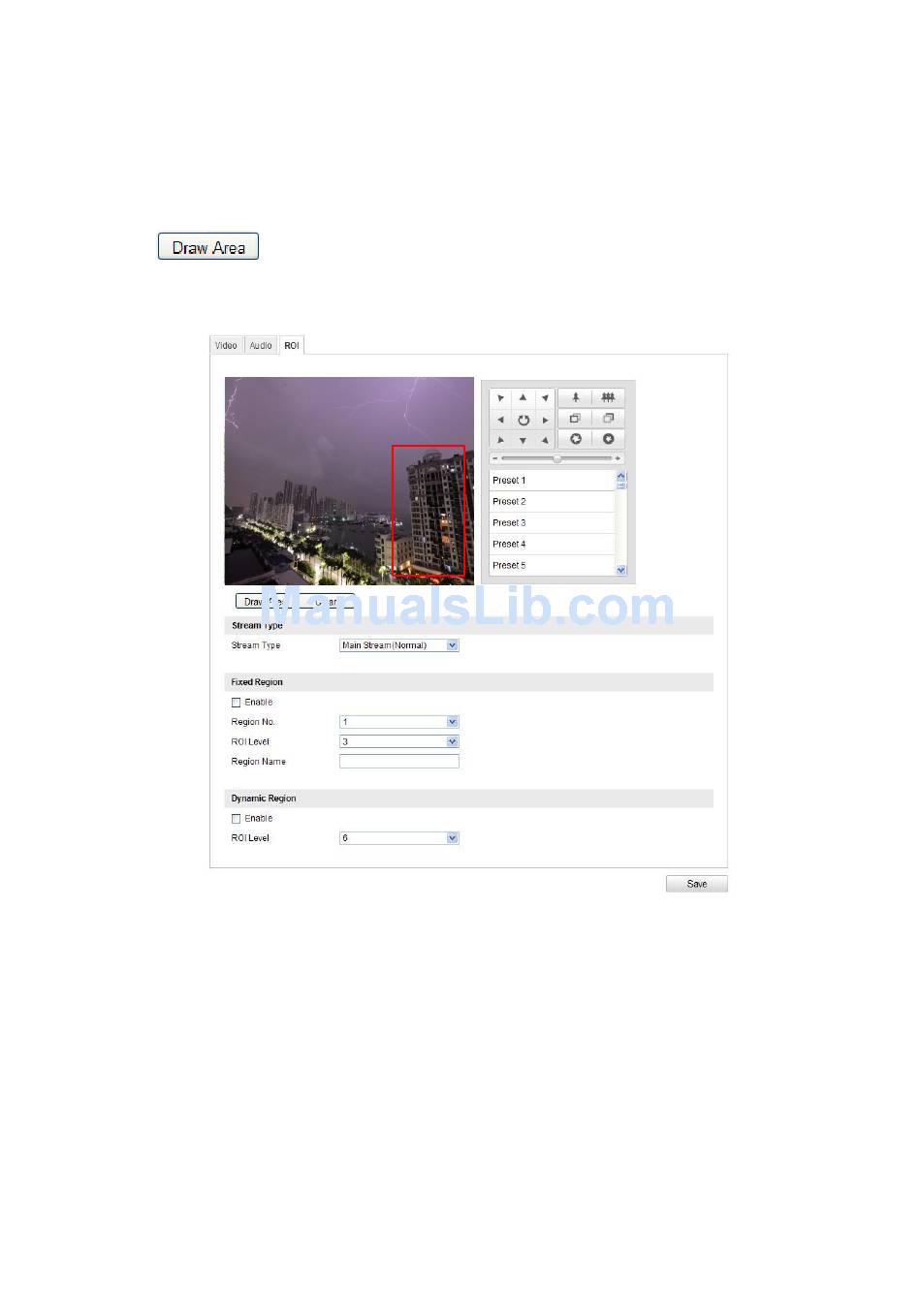

Figure 6-26 Region of Interest
Dynamic Region: And the dynamic tracking refers to the ROI defined by intelligent analysis
such as human face detection. You can choose the Image Quality Enhancing level for the ROI
encoding.
Steps:
1. Check the check box of Enable under Dynamic Tracking.
2. Adjust the ROI level from 1 to 6. The higher the value, the better the ROI quality.
3. Click Save to save the settings.
37
