6.5.2 Configuring OSD Settings

Purpose: The PTZ supports following on screen displays:
Zoom: Identifies the amount of magnification.
Direction: Displays panning and tilting direction, with the format of PXXX TXXX. The XXX following
P indicates the degrees in pan direction, while the XXX following T indicates the degrees in tilt
position.
Time: Supports for time display.
Preset Title: Identifies preset being called.
Camera Name: Identifies the name of PTZ.
You can customize the on screen display of time.
Steps:
1. Enter the OSD Settings interface:
Configuration > Advanced Configuration > Image > OSD Settings
2015-01-18 Sunday 14:38:05
2. Check the corresponding checkbox to select the display of PTZ name, date or week if required.
3. Edit the PTZ name in the text field of Camera Name.
4. Select from the drop-down list to set the time format, date format and display mode.
5. You can use the mouse to click and drag the text frame
to adjust the OSD position.

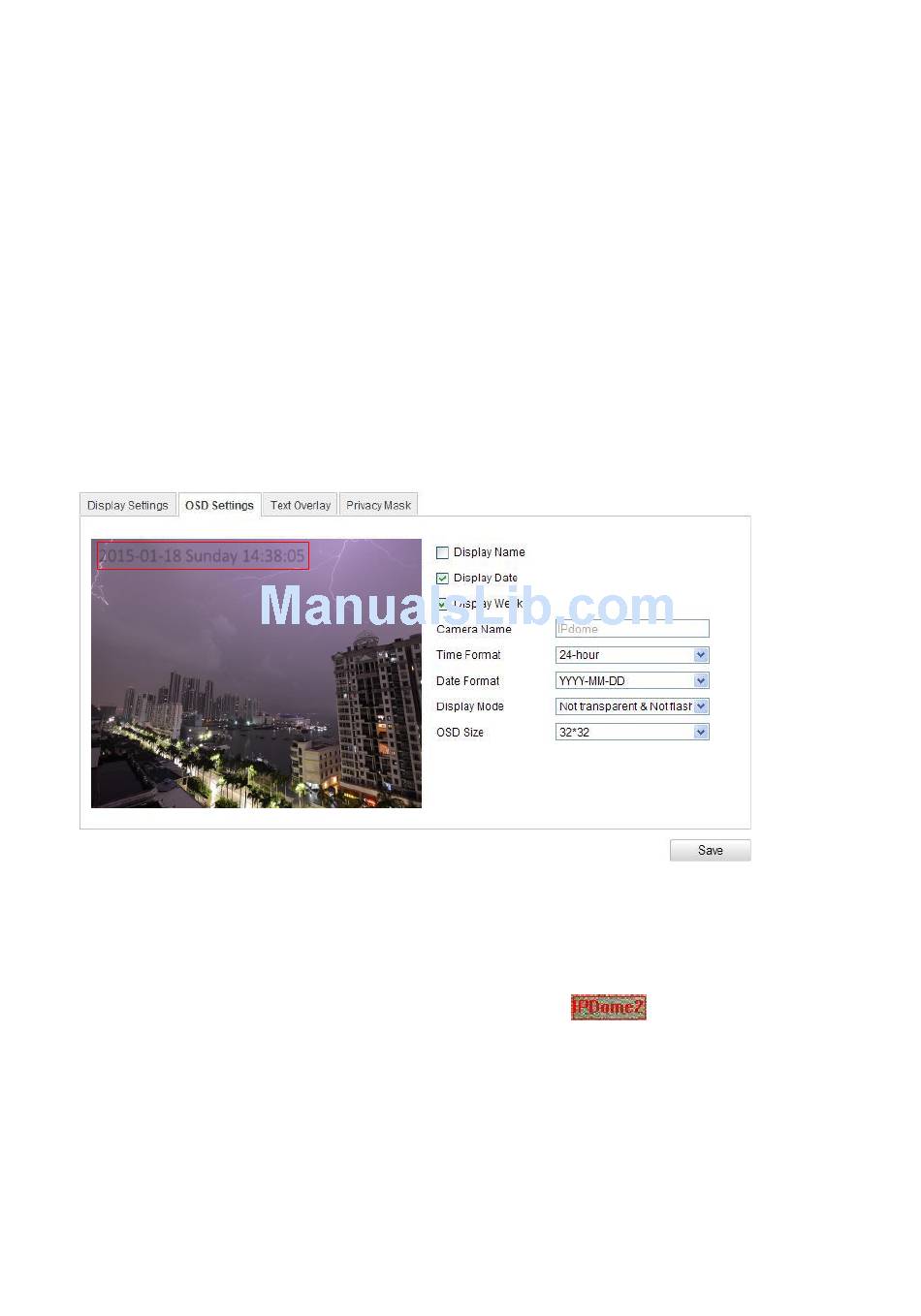

Figure 6-37 OSD Settings
in the live view window
