6.6.2 Configuring Video Loss Alarm

Steps:
1. Enter the Video Loss Setting interface:
Configuration > Advanced Configuration> Events > Video Loss

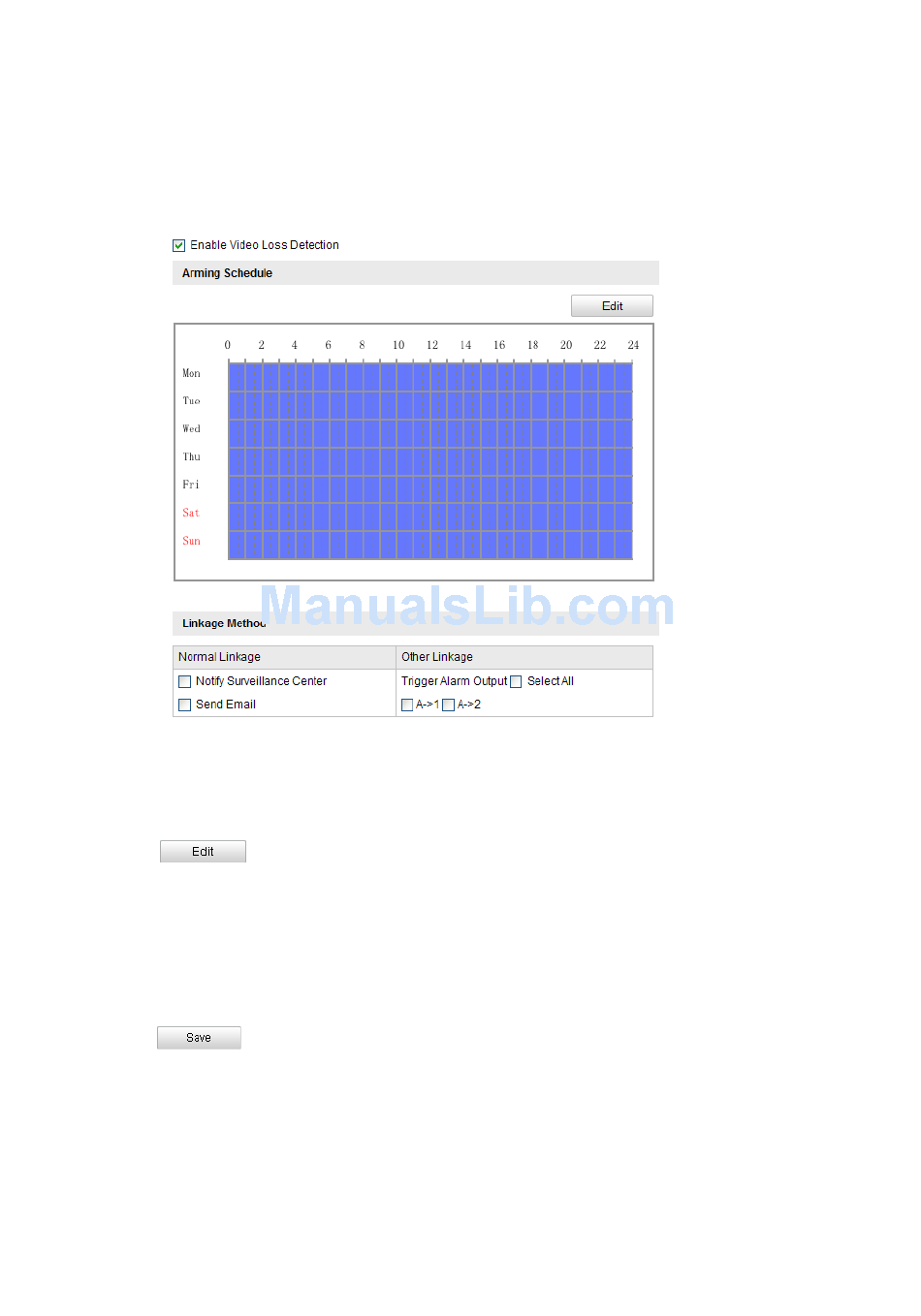

Figure 6-44 Video Loss
2. Check the Enable Video Loss Detection checkbox to enable the video loss detection.
3. Click to edit the arming schedule for video loss detection. The arming schedule
configuration is the same as the setting of the arming schedule for motion detection. Refer to
Step 2 Set the Arming Schedule for Motion Detection in Section 6.6.1.
4. Check the checkbox to select the linkage method taken for the video loss alarm. Notify
surveillance center, send email and trigger alarm output are selectable. Please Step 3 Set the Alarm
Actions for Motion Detection in Section 6.6.1.
5. Click to save the settings.
48
