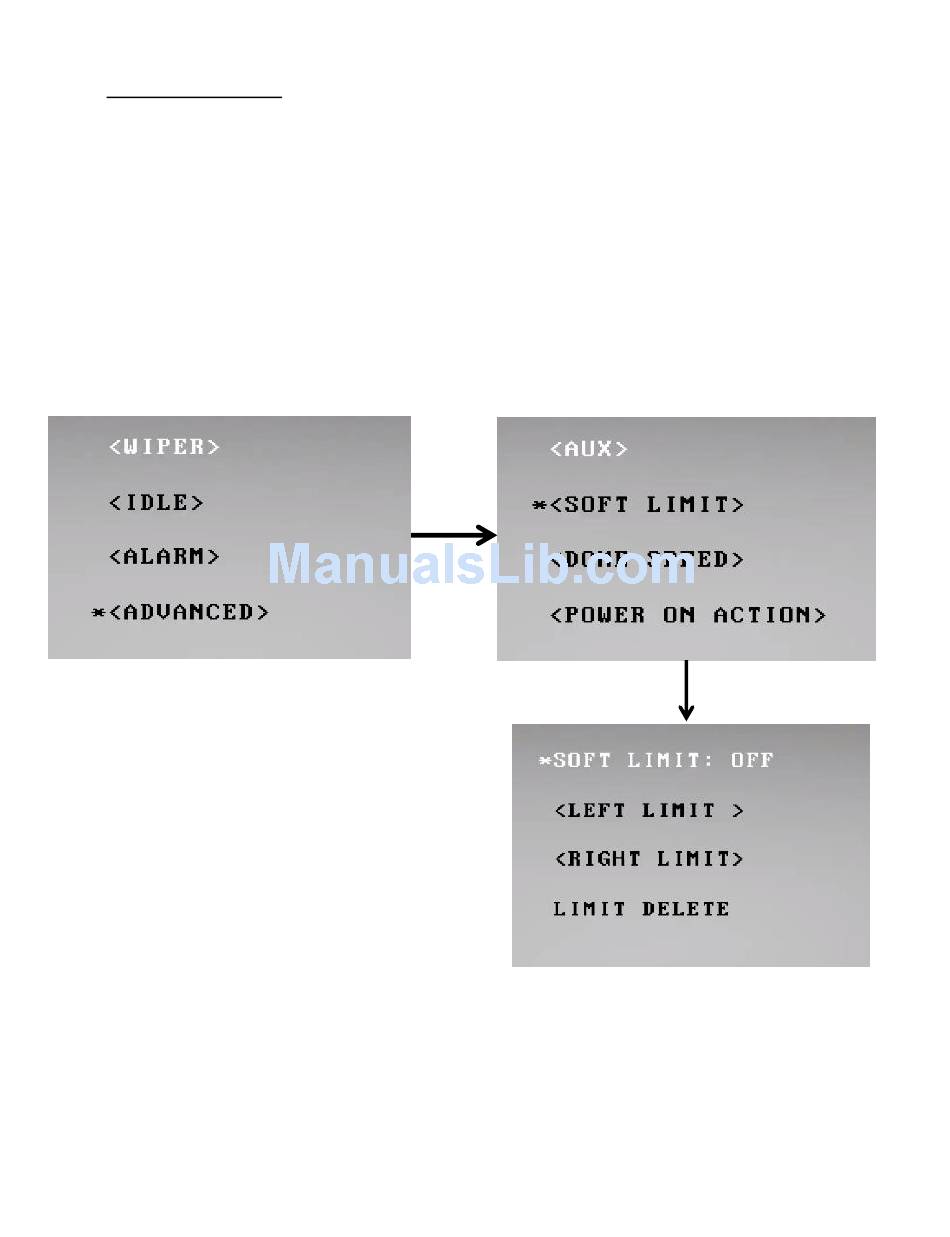

Dome Limitation:
The user can set up the software (Soft) limit to define the left
and right boundaries for the pan movement.
SOFT LIMIT : Move the cursor here and click IRIS + to enter. Click the up or down button
to select "ON" or "OFF" to enable or disable this function.
LEFT LIMIT: Move the cursor here and click IRIS + to enter and control the PAN
movement of the dome to a defined position for the left limit. Click IRIS + to confirm.
RIGHT LIMIT: Move the cursor here and click IRIS + to enter and control the PAN
movement of the dome to a defined position for the right limit. Click IRIS + to confirm.
LIMIT DELETE: Move the cursor here and click IRIS + to delete all the settings.
