4. Click to edit the record schedule.
5. Choose the day to set the record schedule. (1) Set all-day record or segment record:
If you want to configure the all-day recording, please check the All Day checkbox.
If you want to record in different time sections, check the Customize checkbox. Set
the Start Time and End Time.
Note: The time of each segment can't be overlapped. Up to 4 segments can be configured.
(2) Select a Record Type. The record type can be Normal, Motion Detection, Alarm, Motion
| Alarm, Motion & Alarm.
Normal
If you select Normal, the video will be recorded automatically according to the time of
the schedule.
Record Triggered by Motion Detection
If you select Motion Detection, the video will be recorded when the motion is
detected.
Besides configuring the recording schedule, you have to set the motion detection area
and check the checkbox of Trigger Channel in the Linkage Method of Motion Detection
Settings interface. For detailed information, please refer to the Step 1 Set the Motion
Detection Area in the Section 6.6.1 Configuring Motion Detection.
Record Triggered by Alarm
If you select Alarm, the video will be recorded when the alarm is triggered via the external
alarm input channels.
Besides configuring the recording schedule, you have to set the Alarm Type and check the
checkbox of Trigger Channel in the Linkage Method of Alarm Input Settings interface. For
detailed information, please refer to Section 6.6.4 Configuring External Alarm Input.

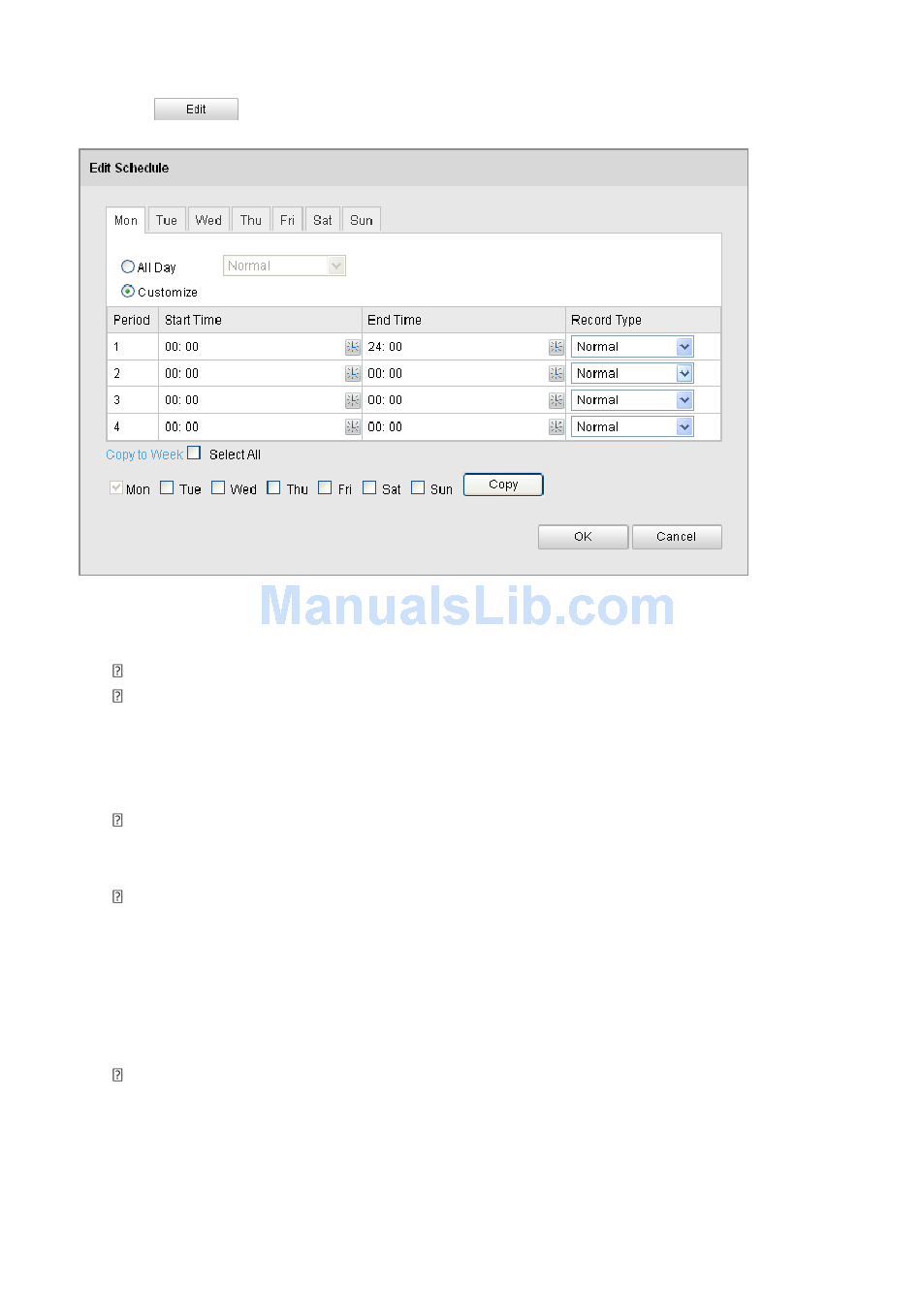

Figure 7-7 Record Schedule
