  • Page 1 Z-20AHD-1 [Date] (IR) User Manual Tal Hanoch PROVISION-ISR...
  • Page 2 Package Contents: Item Qty. Z-20AHD-1 (IR) PTZ Wall Bracket Hinge Pin Rubber Seal DC12V/5A power supply Wall Screws PM8*25 socket head screws Allan Key User Manual...

  • Page 3: Table Of Contents

    Table of Contents: 1 General Instructions: ..............3 1.1 Safety Instructions: ................3 1.2 Warnings: ..................3 2 Features: ..................4 2.1 Product Picture: ................4 2.2 Product Features ................4 2.3 Specifications: .................. 5 3 Installation Site Preparations: ............. 6 3.1 Tool List: ...................

  • Page 4: General Instructions

    1 General Instructions: 1.1 Safety Instructions:  Make sure to read the user manual before using the camera.  Always follow national and local safety codes during the installation.  Only qualified and experienced person can carry the installation and maintenance for this camera.

  • Page 5: Features

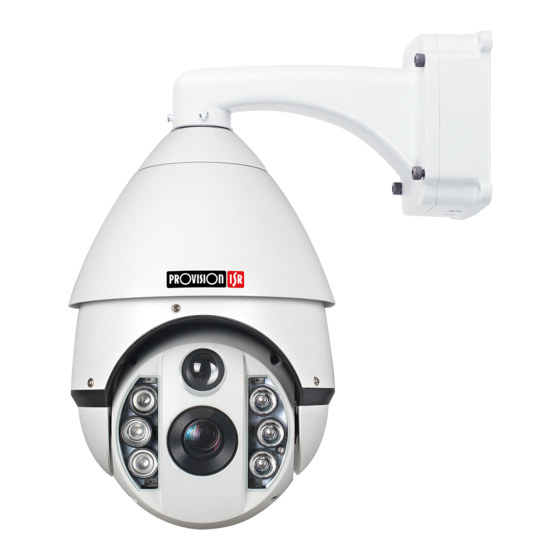

    2 Features: 2.1 Product Picture: 2.2 Product Features  Alarm I/O.  Adaptive PELCO-P/D protocol.  Adjustable IR illumination.  Memory recall.  Real-Time-Control: call any functions at any time.  Support 128 preset positions.  English OSD menu.  Proportional zoom.

  • Page 6: Specifications

     The upper dome adopts 7" aluminum alloy structure for better magnetic shield and heat radiation.  The underpart dome adopts full metal class points bin type design for fast heat dissipation and anti-mist, non-interference light source images and long life span IR light. 2.3 Specifications: Input：AC100～240V 50/60Hz Power Supply...

  • Page 7: Installation Site Preparations

    Superpower LED：Default: Zoom x1~5: open the near-distance IR lights; Zoom x6~9: open the near-distance and middle-distance IR lights; IR Light switch Zoom >x10: turn off the near-distance IR lights, open the middle-distance and far-distance IR lights. Work Indoor：0℃～+50℃； Outdoor ：-20℃～+50℃ (with heater) Temperature Work Humidity <90%...

  • Page 8: Dip Switch Setting

    3.3 DIP Switch Setting: (1)Default Settings: Pelco P/D (auto-detected), baud rate: 2400, address: 1. Use Philips screwdriver to remove the DIP switch cover (see location below) DIP Switch Position Reset Position (2)Baud Rate Setup Decoder Switch: 9~10 (1=ON, 0=OFF) Switch 9-10 setting Max transmission Baud Rate distance(M)

  • Page 9: Output Mode Setting

    3.4 Output Mode Setting: (1) Default Settings: AHD + PAL/NTSC This output can be changed via the controller (Even if the user cannot gain a video output from the unit due to output incompatibility) (2) Set your controller/DVR PTZ Settings to the Camera’s Default Communication Settings: Protocol: PELCO-D, address: 1 (Unless user changed it by the DIP switch configuration), baud rate: 2400.

  • Page 10: Enter The Osd Menu

    Level self-check: Success Vertical self-check: Success Success Once done, the above information will disappear and the user will gain control over the camera. 4.2 Enter the OSD Menu: While the camera is in standby condition, call preset 95 (“Call” + 95 + “Enter”) in order to display the main menu.

  • Page 11: System Menu

    4.3 SYSTEM Menu: <Main Menu>  <SYSTEM> SITE INFO DISPLAY SETUP BOOTUP SCREEN SET DEFAULT SYSTEM REBOOT BACK EXIT System info includes following settings.  < SITE INFO>: In this menu the user can setup the dome’s name, View the Hardware address, change the camera software address and choose the leading command (Hardware or Software).
  • Page 12 4.3.1 SITE INFO DOME ID OPT: HARD SOFTWARE ID: HARDWARE ID: BROADCAST ID: BACK EXIT <Main Menu>  <SYSTEM>  <SITE INFO >  <DOME ID OPT>: Setting the address method that controls the dome, user can choose from SOFT (Software – As defined below in the OSD menu) and HARD (Hardware –...
  • Page 13  <BACK>: return to upper menu.  <EXIT>: exit the menu 4.3.2 DISPLAY SET UP < Main Menu><SYSTEM><DISPLAY SETUP> PRESET TITLE: PATTERN NAME: OFF ORIENATATION: OFF TEMPRETURE: BACK EXIT  <PRESET TITLE>：Choose to display preset position or not.  <PATTERN NAME>：Choose to display pattern name or not ...

  • Page 14: Lens

    <Main Menu><SYSTEM><DISPLAY BOOT-UP INFO> Enter into Boot-up info displays to check current setup, call preset 1 to return to upper menu 4.3.5 SET DEFAULT <Main Menu><SYSTEM><SET DEFAULT> Select <SET DEFAULT> to restore factory default setting. Please note: there is no confirmation prompt! Once entering the camera will immediately restore itself.
  • Page 15 <BOTH>: Joystick movement triggers both auto focus and auto iris <FOCUS>：Joystick movement triggers auto focus only <IRIS>: Joystick movement triggers auto iris only. <NONE>: Joystick movement triggers none of the functions.。  <AF RESUME TIME>: This item sets the time to restore auto focus after focus is manually changed.

  • Page 16: Advanced Camera Menu

    4.5 Advanced Camera Menu: For advanced Menu, Call preset #69. PLEASE NOTE: Scrolling and changing values in the advanced menu is done with different controls: The controller joystick has effect. Scrolling up and down is done by pressing IRIS+/IRIS- Changing Values of the selected feature is done by pressing ZOOM+/ZOOM- IMPORTANT!!! Changing any values the advanced menu might result in the camera malfunctioning...
  • Page 17 AUTO RGAIN BGAIN DE-FOG OUTPUT FORMAT 720/25 ZOOM FOCUS Z-SAVE 1.3M F-RANGE ZDISP-POS RESET SAVE-EXIT  <LANG>: Language of the menu (Only English Available)  <OSD-DISP >: Do Not Change  <ADDR-DISP>: Do Not Change  <D&N>: Do Not Change ...
  • Page 18  <2D-NR>: Adjusting the level of 2D-NR noise reduction  <3D-NR>: Adjusting the level of 3D-NR noise reduction  <BLC>: switching between OFF/ON.  <WB>: White Balance is normally compensated for by the automatic white balance gain control. In some lighting conditions, user may want to manually adjust the red and blue settings for optimal viewing.

  • Page 19: Pan/Tilt

    4.6 PAN/TILT <Main Menu><PAN/TILT> AUTO STOP TIME: SPEED AMPLIFY: RATIO PAN/TILT: SET NORTH BACK EXIT  <AUTO STOP TIME>: For some particular protocols, the dome will not stop moving even there is no operation by the controller. This menu sets the time duration before stopping after which the dome receives last control command.

  • Page 20: Auto Running

     <SET NORTH>: User can set orientation by using joystick to position north. When select <SET NORTH>, following menu will pop-up. CALL PRESET 1 TO RETURN CONFIRM..Adjust the lens to desired position and call preset 1 to confirm and return. 4.7 AUTO RUNNING <Main Menu><AUTO RUNNING>...
  • Page 21 4.7.1 PRESET <Main Menu><AUTO RUNNING><PRESET> PRESET NUMBER: SET CURRNET REMOVE CURRENT BACK EXIT In this function, the values of the pan/tilt positions will be stored in the desired memory slot so that you will be able to call it when in need. 128 presets can be saved.
  • Page 22 4.7.2 TOUR <Main Menu>  <AUTO RUNNING>  <TOUR> TOUR NUMBER: 001 DWELL: 003 EDIT BACK EXIT The dome camera will run repeatedly as the given sequence of presets at certain dwell time by one command. Max. 4 tours available (27preset/tour). ...
  • Page 23 PRESET–DWELL 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 SAVE AND BACK CANCEL AND BACK There are three group numbers, the left side is preset number, the right side is dwell time; tour from left to right, up to down in the order to run preset; when the preset number is set to <...
  • Page 24 There are max 4 patterns, and the dome camera can record all regular operation in 3 minutes at least. The command will drive the speed dome runs as given route repeatedly.  <PATTERN NUMBER>: Set current pattern number from 001～004. ...
  • Page 25 at the given route repeatedly until receiving new command. [10S]: 90 intermittent scan, then dwell on 10s, the dome will continuously run at the given route repeatedly until receiving new command.  <PAN SPEED> High：20/S Middle：15/S Low：6/S Auto：Do as the camera’s proportional P/T speed. ...
  • Page 26 Move the camera left limit position to confirm and return. The position of the left limit position will now be marked on the menu screen.  <RIGHT LIMIT>: Set the right edge of region (B) CALL PRESET 1 TO BACK CONFIRM.

  • Page 27: Alarm

    Choose the type of action that will take place on activation of Park: users can choose between: Preset, Tour or Pattern. Note: Time running available only if <IDLE TIME> and <RUNNING TYPE> are both ON state. 4.8 ALARM (Optional function, standard camera do not include alarm) <Main Menu>...

  • Page 28: Ir Set

     [ON]: Turn on the alarm output, the alarm will give an alarm signal when activated.  <ARM/DISARM>:  <ARM> The alarm system effective.  <DISARM> The alarm system is not effective.  <INTERVAL >: Set the alarm interval time from 004~255 seconds. 4.9 IR SET <Main Menu>...
  • Page 29 IR LEDs  <PRESENT LUX>: Display the current illumination value (Unit: Lux) (cannot be edited)  <IR START SET>: 006 (Default Open IR light illumination value), Range: 0-8 Unit: Lux <IR CLOSE SET>: 012 (Close IR light illumination value) Range: 12-20 Unit:...

  • Page 30: Appendix I: Dip Switch Setting

    APPENDIX I: DIP SWITCH SETTING DIP Switch consists of 8 numbers from 1-8, use 8421 binary cod, max 255 address. When the switch is in the “ON” position, the number from 1-8 corresponding to 1, 2, 4, 8, 32, 64, 128. For example, if you set 1, 3, 5, 7 switch to the “ON”...
  • Page 31 1 0 0 0 0 1 0 0 0 1 0 0 0 1 0 0 1 1 0 0 0 1 0 0 0 0 1 0 0 1 0 0 1 0 1 0 0 1 0 0 0 1 1 0 0 1 0 0 1 1 1 0 0 1 0 0 0 0 0 1 0 1 0 0...
  • Page 32 1 1 1 0 1 0 1 0 0 0 0 1 1 0 1 0 1 0 0 1 1 0 1 0 0 1 0 1 1 0 1 0 0 0 1 1 1 0 1 0 0 0 1 1 1 0 1 0 1 0 1 1 1 0 1 0 0 1 1 1 1 0 1 0...
  • Page 33 1 0 1 1 0 0 0 1 0 1 1 1 0 0 0 1 1 1 1 1 0 0 0 1 0 0 0 0 1 0 0 1 1 0 0 0 1 0 0 1 0 1 0 0 1 0 0 1 1 1 0 0 1 0 0 1 0 0 1 0 1 0 0 1...
  • Page 34 1 1 0 0 0 0 1 1 0 0 1 0 0 0 1 1 1 0 1 0 0 0 1 1 0 1 1 0 0 0 1 1 1 1 1 0 0 0 1 1 0 0 0 1 0 0 1 1 1 0 0 1 0 0 1 1 0 1 0 1 0 0 1 1...

  • Page 35: Appendix Ii Shortcuts Key Chart

    APPENDIX II Shortcuts Key Chart: *Relevant for all models produced in 2016 and later. For older production please contact Provision-ISR’s technical support Shortcut Key Function (Set Preset) Set #84preset Proportional P/T OFF Set #85preset Set Output: AHD PAL Set #86preset Set Output: AHD NTSC Set #87preset Set Output: CVBS PAL...
  • Page 36 Set #106 preset Record Pattern scan 4 Set #107 preset Set cruise 1 Set #108 preset Set cruise 2 Set #109 preset Set cruise 3 Set #110 preset Set cruise 4 Set #111 preset Set color-to-black function Set #112 preset Set 360°scan, the preset-dwell: 0S Set #113preset Set 360°scan, the preset-dwell: 5S...

  • Page 37: Appendix Iii Trouble Shooting

    APPENDIX III Trouble Shooting Troubles Reason Solution 1. The power supply is not 1. Correct the connection. No action when power on connected correctly. 2. Check the power supply LED 2. The fuse is broken. power indicator. 3. Replace the fuse. 1.
