Summary of Contents for Provision ISR I5PT-320IPMX10-P
- Page 2 Precautions: Please read this manual carefully before installing and operating the camera. ◼ Please refer to the technical specs to confirm you are using a suitable power supply. Do not use power supply with higher/lower rating than specified. ◼ Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove any screws or covers.
-
Page 3: Table Of Contents
Contents Product Overview ........................4 Function Introduction: ......................4 OSD Menu operation ......................4 Web Browse Operation Guide ....................5 Common Operations ......................5 Web Login ..........................6 Configuration ..........................8 Camera ............................8 Image ............................8 OSD ............................9 iii. -
Page 4: Product Overview

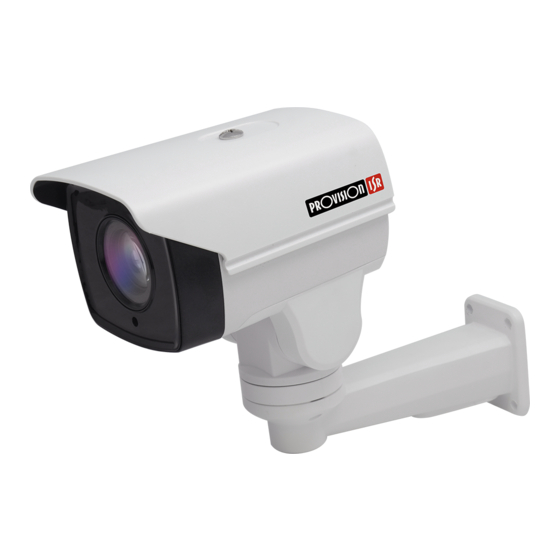

1) Product Overview ● PT Capabilities: The camera is equipped with Pan/Tilt motors that allow movement range of ° ° pan and 80 tilt. ● Motorized Vari-Focal with auto-focus: The camera is equipped with x4/10 optical zoom lens and features accurate auto focus algorithm. ●... -
Page 5: Web Browse Operation Guide
4) Web Browse Operation Guide a. Common Operations Factory default settings： IP camera is a network device and must be assigned with network IP address, subnet mask and gateway. The camera default setting is as follows: Default IP address: DHCP. If no DHCP server is available, the camera will fall back to 192.168.201.226 Subnet mask: 255.255.255.0 Gateway: Assigned by DHCP. -
Page 6: Web Login
5) Web Login Enter IP address of the camera on “Internet Explorer” web browser to open the following interface: ◆ user name: admin ◆ password: 123456 ◆ Port: 80 Downloading and installing the video Active-X: After you logged in, the web-browser will prompt you to install or update the plug-in. Click on “Ok”, clise all internet browser and start the installation by double clicking on the downloaded file. - Page 7 Button Task Button Task View the image Open PTZ controls main stream View the image Encode video by PC CPU sub stream Browse for local snapshots and Encode video by PC GPU videos Switch between real-time video (Less buffer) and Take a snapshot Smooth video (More buffer).
-
Page 8: Configuration
6) Configuration Click “configuration” to enter the configuration interface: a. Camera i. Image From this interface you can set the video image settings. • “Sharpness": Set the general image brightness. This will be done digitally and not affect the exposure values. •... -
Page 9: Osd
frequency is set properly. This feature will attempt to remove it. • “Horizon Flip”: Horizontally mirror the image if required. • “Vertical Flip”: Vertically flip the • “WDR Mode”: Set Digital WDR. • “WDR Level”: Set the WDR level. • “Day Shutter Mode”: Set the shutter mode for day mode between auto and manual. If manual is selected, set the corresponding exposure value. -
Page 10: Custom Title
iii. Custom Title: Add additional custom titles to the camera as required. b. Video Set all the video parameters of the camera. • Status: Enable/disable the video stream. • Video Compression: Set the video compression (H265/H264). Please make sure that the NVR support the chosen compression type. -
Page 11: Network
• Frame Interval: The I-Frame frames. Default is 50. • QP Minimum Value: Quantization Parameter. Lower QP - less compression (higher bitrate requirements) and lower compression artifacts (higher quality). • QP Max Value: Quantization Parameter. Higher QP - more compression (lower bitrate requirements) and higher compression artifacts (lower quality). -
Page 12: Service Ports
ii. Service Ports: This interface contains all the ports required for the camera work. If some of the ports are not in use, it is advisable to disable it. Note： Please reboot the IP camera after modifying the parameters. d. Event i. - Page 13 interface: Click on a schedule to delete it. Drag the mouse from the start point to the end point to set new schedule interval. Click on “All” to set a 24h schedule for the selected day. Detection Area: Set the motion detection area as required. Click on the “Setup” button to open the following interface: Sensitivity: Higher sensitivity will consider minor changes as motion.
-
Page 14: System
e. System i. Users Manage This interface allows you to manage the users of the system (Add/remove/modify). The system has a built-in super administrator (admin account) which cannot be removed, but only edited. Adding a User: To add a new user, click on the “Add New” button. The following interface will open: Set a user name and password, and choose out of 3 operating groups: 1) Administrator: allows to perform any operation or configuration on the camera. -
Page 15: Device Language
Change the user group or password as required. Click on “Save” to save the changes. ii. Device Language Use this interface to change the system language. Choose the required language, click on save to save the selection and then click refresh to apply the new language selection. -
Page 16: Factory Reset
iv. Factory Reset Use this interface the restore the camera settings to factory default. If you wish for the camera to retain all network configurations (IP Addresses, Ports, Etc.), please mark the option accordingly. v. Reboot Use this to manually reboot the camera. -
Page 17: Park Action
SET preset 96 Park Action – 60s SET preset 97 Park Action – 120s SET preset 98 Self-Test CALL preset 94 I5PT-320IPMX10-P Operation command Instruction SET preset 70 then: CALL preset 1: Auto Mode. Day/Night CALL preset 2: Night Mode CALL preset 3: Day Mode SET preset 71 then CALL preset 1-10 (1 –... -
Page 18: Appendix
9) Appendix Lighting protection and Anti-surge This product uses the gas discharge tube of TVS diode and protection circuit, can effectively prevent the 3.0 kV following transient lightning and surge lamp all types of pulse signal to the damage of equipment. However, for outdoor installation according to the actual situation on the premise of guarantee the electrical safety to do the necessary protective measures: ●... - Page 19 The IP IR Bullet PTZ Camera gives you more of everything: Faster movements, higher accuracy, HD video performance and easier installation.
