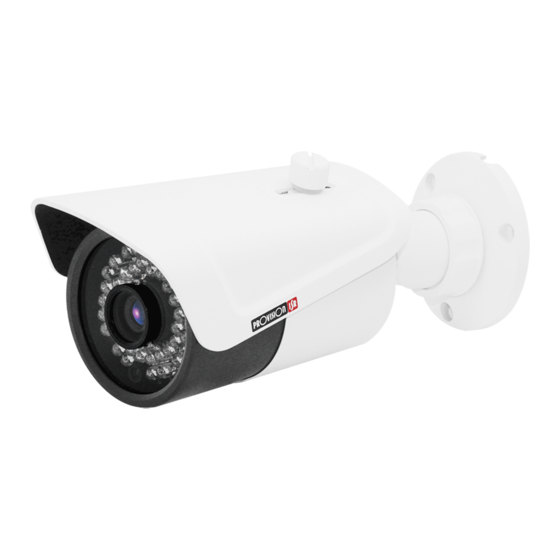

2 Mega Pixel Water-Proof IR Network Camera User Manual Please read this instruction carefully for correct use of the product... - Page 2 PROVISION-ISR I3-380IP04 User Manual 720P 30m IR Fixed Lens IP Bullet Camera For H.264 IP Camera All rights reserved...
- Page 3 Before use this product Before operation, we strongly advise users to read this manual and keep it properly for using later. This is product instructions not quality warranty. We may reserve the rights of amending the typographical errors, inconsistencies with the latest version, software upgrades and product improvements, interpretation and modification.
-
Page 4: Table Of Contents
IP CAMERA USER MUANUAL Table of Contents Introduction ......................1 1.1 Summarization ..........................1 1.2 Check Package Content ........................ 1 1.3 Connection ..........................1 Installation ......................2 Install IP-CAM to Ethernet Network ..................2 CMS and IP-Tool Installation ....................2 IE Remote Access .................... -
Page 5: Introduction
Page 1 IP CAMERA USER MUANUAL 1 Introduction 1.1 Summarization This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system more stable and reliable. -
Page 6: Installation
Page 2 IP CAMERA USER MUANUAL 2 Installation 2.1 Install IP-CAM to Ethernet Network The connection of digital video server is show below. Figure 2-1 Connection Please connect the PC and IP-CAMERA in accordance with the above picture. The connection steps are shown as below: Step 1: Connect the monitor, microphone and network to the device. -
Page 7: Ie Remote Access
Page 3 IP CAMERA USER MUANUAL 3 IE Remote Access IP-Cam can be connected through LAN or WAN. Here only take IE browser (6.0) for example. The details are as follows: 3.1 LAN In LAN, there are two ways to access IP-Cam: 1. Access through IP-Tool; 2. Directly access through IE browser. -
Page 8: Directly Access Through Ie
Page 4 IP CAMERA USER MUANUAL For example, the network segment of this computer is 192.168.13.x under the local config table. So, please modify the IP address, Gateway of IP-Cam which must be in the same network segment with the computer. Modifying the network, you have to input the password and click “OK”... - Page 9 Page 5 IP CAMERA USER MUANUAL IP address: 192.168.226.201 Subnet Mask: 255.255.255.0 Gateway: 192.168.226.1 HTTP: 80 Data port: 9008 The first time you used the IP-CAM, you should connect the device with the above default settings. Here take the Windows XP OS for example to introduce the setting steps.
-
Page 10: Wan
Page 6 IP CAMERA USER MUANUAL Step 4: Input user name and password in the login dialog box and click “OK” button to enter into the live interface. You can manage and setup the IP-CAM in the IE client, such as changing IP address, upgrading the software., etc. 3.2 WAN Access through router or virtual server Step1: Make sure the device is well connected in LAN. -
Page 11: Remote Preview
Page 7 IP CAMERA USER MUANUAL 4 Remote Preview 4.1 The Remote Preview Interface Fig 4-1 Remote Preview People icon Fix size Zoom in Zoom in Zoom out Full screen Start record Playback Snap Enable audio When motion detection alarm is triggered, the people icon turns red. ... -
Page 12: Right-Click Function
Page 8 IP CAMERA USER MUANUAL Fig 4-2 record playback interface After selecting the record date, the record files will be displayed in the record file list box. User can double click a certain record file to playback or check a certain file. Then click Play button to do playback. - Page 13 Page 9 IP CAMERA USER MUANUAL scroll bar to view all snapped pictures. Fig 4-4 Single Snap Fig 4-5 Multi-picture Snap...
-
Page 14: Remote Live Surveillance
Page 10 IP CAMERA USER MUANUAL 5 Remote Live Surveillance Functions of remote configurations include: System Configuration, Video Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. User should firstly select the menu on the left, and then setup the relative parameters. When a user setup parameters of a certain device, other users can not setup this device. -
Page 15: Video Configuration
Page 11 IP CAMERA USER MUANUAL 5.1.2 Date & Time Configuration Setting steps: 1. Enter into "System Configuration" “Date & Time”. Refer to Fig 5-2: 2. Select “Modify Time " to self-define time. Choose "Time Zone" according to user’s location. 3. -
Page 16: Video Stream
Page 12 IP CAMERA USER MUANUAL 2. User can adjust Brightness, Contrast, Hue and saturation of the picture. 3. Select white balance mode. 4. Sharpen, denoise , white balance, frequency, CVBS format and Day-Night mode are adjustable. 5. User also can enable the image mirror and image overturn function. 6. -
Page 17: Video Mask
Page 13 IP CAMERA USER MUANUAL 5.2.4 Video Mask You can set 4 mask area at most. Fig 5-6 Video Mask Enable the mask, select color and transparent of the mask area and then drag the mouse to set the mask area. This will take you see a gridding area. After that, click “Save” button to save the settings. -
Page 18: Motion Detection Trigger
Page 14 IP CAMERA USER MUANUAL Fig 5-7 Motion Detection Area 5.3.2 Motion Detection Trigger 1. Enter into “Alarm Configuration" "Motion Detection Trigger" to display a interface as shown in Fig 5-8: 2. Check "Enable alarm" check box. Then all functions under this interface will be activated. -
Page 19: Motion Detection Schedule
Page 15 IP CAMERA USER MUANUAL 5.3.3 Motion Detection Schedule Enter into “Alarm configuration" "Motion Detection schedule" interface as shown in Fig 5-9: Week schedule User could set the alarm time from Monday to Sunday for alarm everyday in one week. Note: The lengthwise means one day of a week;... -
Page 20: Wired
Page 16 IP CAMERA USER MUANUAL Fig 5-10 Port Config 2. Input port number for IE access in the "HTTP Port" textbox. 3. Input the port number for audio & video transmission in the "Data Port" textbox. 5.4.2 Wired Enter into "Network Configuration"... -
Page 21: Server Configuration
Page 17 IP CAMERA USER MUANUAL Fig 5-12 Transit 2. Check “transit enable”. Then save the setting. 3. Input www.upnpicp.com in IE address; download and install Active X. Then a window shows up as Fig 5-13: Fig 5-13 Login 4. Input the only device ID of the IP-CAM or user-defined name. And then input user name and password. -
Page 22: Ip Notify
Note: DDNS is used to register for a hostname with DDNS username and password. Provision ISR now allows you to use our mint DDNS server in order to create a virtual address for your DVR/NVR/IP-Camera on the internet. Each account is limited to 35 different addresses using your preferred domain name address instead of using IP addresses. - Page 23 Page 19 IP CAMERA USER MUANUAL Fill in the registration form, then click "Submit" Fill in the host name you want to apply for and press "Request Domain" (for example "home") If there is no problem with the domain registration you will see the following message: “Your domain was...
- Page 24 Page 20 IP CAMERA USER MUANUAL Fig 5-16 DDNS Config Note: The steps to band a domain name for video surveillance server are as follows. Firstly, register a user name and a password to log on the website of service supplier, and then apply for a domain name online for the server.
- Page 25 Page 21 IP CAMERA USER MUANUAL Step 2: Click to enter the website. Step 3: Click "New User" in the right of homepage to register. For example: User ID is ‘abc’, and password is ‘123456’. The register dialog display as below: Login Step 1: Return to homepage after registering successfully.
-
Page 26: Rtsp
Page 22 IP CAMERA USER MUANUAL 3. Application Connect IP-CAMERA to the Network Client. Step 1: After popping up the login interface, fill in "Server" textbox with ‘*.dns2p.com’ to visit the Network Client of the IP-CAMERA. The domain set in ‘(3 Domain Setup’. -
Page 27: Mail Setting
Page 23 IP CAMERA USER MUANUAL icons for networked UPnP devices” in the “Network Tasks” list box. Then a information window will pop up. Click “YES” button to see a “Windows Components Wizard” dialog box pop up as shown below. Then press “Next” to continue. After finished the installation of configuring components, the UPnP icons will display. -
Page 28: Advanced Configuration
Page 24 IP CAMERA USER MUANUAL 4.Select the secure connection type at the Secure Connection pull down list according to user’ actual needs 5. Receival email address list: add email address into the list 6. Receival email address: receiver’s e-mail address 7. -
Page 29: User Configuration
Page 25 IP CAMERA USER MUANUAL Upgrade. 5.5.1 User Configuration Enter into "User Configuration" interface. Refer to Fig 5-22: Add user: 1. Clicking "Add" button pops up "Add user" dialog box. Please refer to Fig 5-23: Fig 5-22 User Configuration Fig 5-23 Add User Note: After bind physical address to the IP-CAM, user can access the device on this PC in network only. -
Page 30: Security Configuration
Page 26 IP CAMERA USER MUANUAL MAC” text box. 6. Click “OK” button to modify user’s password and binding MAC address successfully. Delete user: 1. Select the user which needs to delete in the user configuration list box. 2. Clicking “Delete” button will pop up a confirm dialog box. Then click “OK” to delete the user. -
Page 31: Configure Backup & Restore
Page 27 IP CAMERA USER MUANUAL Fig 5-25 Security Configuration 5.5.3 Configure Backup & Restore Enter into Advanced configurationConfigure Backup & Restore Interface. to Fig 5-26. Import & Export Configuration: User can import or export the setting information from PC or to device. -
Page 32: Upgrade
Page 28 IP CAMERA USER MUANUAL Fig 5-27 Reboot device interface 5.5.5 Upgrade Enter into Advanced Configuration—Upgrade interface shown as Fig 5-28: 1. Click “Browse” button to select the save path of the upgrade file 2. Click “Upgrade server firmware” button to start upgrading the application program 3. -
Page 33: Mobile Surveillance
Page 29 IP CAMERA USER MUANUAL 6 Mobile Surveillance This IP-CAM supports mobile surveillance by phones with Windows mobile, iPhone, Android and Blackberry OS. Please check the operation system version of mobile before use; and connect the IP-CAM to Internet. 6.1 Network Configuration ... -
Page 34: By Phones With Iphone Os
Page 30 IP CAMERA USER MUANUAL 6.2 By Phones with iPhone OS Install through Iphone. Step 1: Open App Store software as shown in the figure on the left. Step2: Search “Provision Cam” and click “Free” button as shown in the figure on the right. Step 3: Click “Install App”... - Page 35 Page 31 IP CAMERA USER MUANUAL "Provision Cam" Instruction 1. Login Step 1: Choose network type. There are two network connection ways: 3G/3G +WIFI, enhanced video quality. This network supports main stream and sub stream. The real-time image will be displayed by using sub stream. 3G, normal video quality compared to the former network type.
- Page 36 Page 32 IP CAMERA USER MUANUAL ：Log off button. Click this button to return to the login interface. ：Screen mode button. You can choose 1，4，6，8，9， 13 or 16 screen display mode. ：Favorite channel display button. If you save your favorite channel in the favorite server list, clicking this button will directly play all favorite channels you have saved.
- Page 37 Page 33 IP CAMERA USER MUANUAL button behind the device name to delete this device. Edit device: Click button behind the device name to edit the information of this device. Backup & restore: It is recommended to click “Backup” button to reserve the information of all devices.
- Page 38 Page 34 IP CAMERA USER MUANUAL Fig 2 Fig 3 Fig 4 Fig 5 CMS Function This function makes multi-device managements and preview come true. Step 1: Click to enable CMS function. When this icon turns green, it means this function is enabled. Step 2: Click to choose channel as shown in the right picture.
- Page 39 Page 35 IP CAMERA USER MUANUAL Favorite channels of the device Step 1: Click to enter into device management list. Click the device name to extend channel. Enlighten the channels to save favorite channels as shown in the following picture on the left. Step 2: Return to the main interface and click button to play the favorite channels.
-
Page 40: By Phones With Android
Page 36 IP CAMERA USER MUANUAL By Phones with Android Software Installation Step 1: Run “Play Store” (or Google market) program. Step 2: Search “Provision Cam”. Step 3: Press “Install” button. Step 4: Install the software subject to the notes. Once the downloading is done, the software will install automatically Login Menu Step 1: Configure the network of your device and mobile... - Page 41 Page 37 IP CAMERA USER MUANUAL Main Menu Live View first picture previous picture Next picture The last picture Zoom in Zoom out Delete Record Playback: Click “Playback” in the main menu interface to enter playback interface. Then choose the channel you want to playback. This will take you to see the record file. Click this file to play.
- Page 42 Page 38 IP CAMERA USER MUANUAL Modify Server: Click button to modify the server information. Delete Server: Click button to delete the server information. Settings: In the main menu interface, click “Settings” to enter the settings interface where you can configure local settings. Click “Local”...
-
Page 43: Use Method For Ip-Tool
Page 39 IP CAMERA USER MUANUAL 7 Use method for IP-TOOL Updating through IP-Tool Note: Do not cut off power supply and internet when updating; If the device is unable to start because of the failure of upgrade, it needs to retrofit. First，... - Page 44 Page 40 IP CAMERA USER MUANUAL Modify IP address and click OK button to exit the dialog box, IP-Tool will display the new IP address. Upgrading Software Select the device and right click to choose “Update software” menu. Input the username and password.
- Page 45 Page 41 IP CAMERA USER MUANUAL Enter into Kernel upgrade dialog box, input user name and password, click “Browse” to select the Update file (mboot8180-8180) and click “Update” button to start updating. When upgrading, please do not disconnect PC to device and make sure the power is on. The update progress bar will display as below: After finishing upgrading, a message box will pop up.
- Page 46 Page 42 IP CAMERA USER MUANUAL 8 Q & A Q: How to find my password if I forget it? A：Reset all settings by IP-Tool or contact your dealer. Default IP: 192.168.226.201 User name: admin Password: 123456 Q：Fail to connect devices through IE browser, why? A: Network doesn’t connect well.
- Page 47 Page 43 IP CAMERA USER MUANUAL Fig 4-1 Fig 4-2 ④ then click ok to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them. Q：No sound can be heard, why? A：Without connect audio input device. Please connect and try again. B: Without enable audio function at the corresponding channel.
-
Page 48: Specification
Page 44 IP CAMERA USER MUANUAL 9 Specification Model I3-390IP04 Image Sensor Sony Exmor IMX138 1/3" CMOS Effective Pixels 1280x720 Electronic Shutter 1/25s ~ 1/100000s Day & Night Min. Illumination 0lux (IR ON) Audio compression G711A Communication One Way Audio AWB, AES, AGC Adjustable Exposure Mode (Auto / Manual) BLC, HLC Adjustable... - Page 49 Page 45 IP CAMERA USER MUANUAL Notes:...
- Page 50 Page 46 IP CAMERA USER MUANUAL...
