Chapter 6 Speed Dome Configuration; Configuring Local Parameters - Provision ISR Ultra-Z IP series User Manual

2. Check the checkbox of Enable Park Action.
3. Set the Park Time as the inactivity time of the dome before it starts the park actions.
4. Choose Action Type the from the drop-down list.

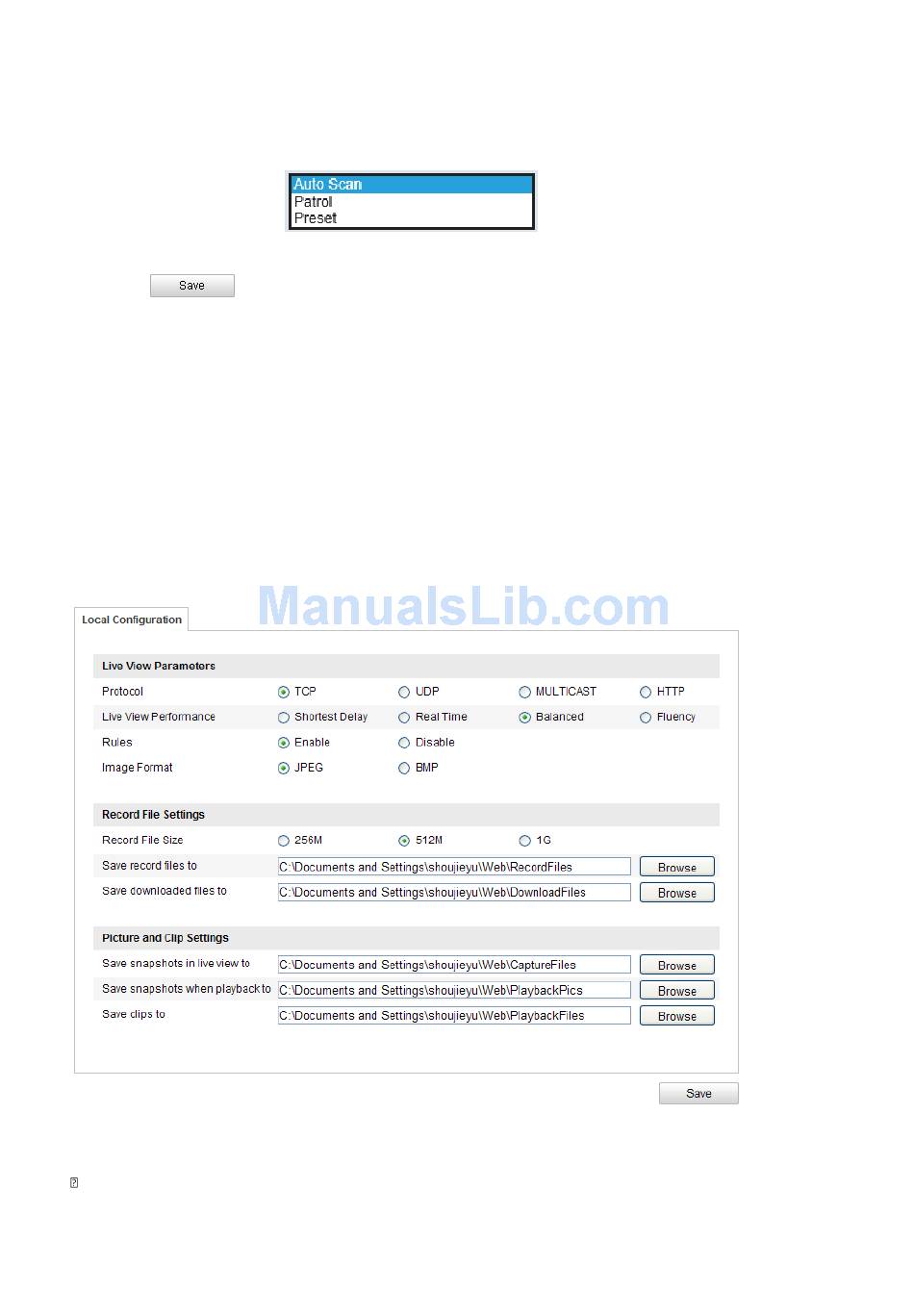

Figure 5-8 Action Types
5. Click to save the settings.

Chapter 6 Speed Dome Configuration

6.1 Configuring Local Parameters

Note: The local configuration refers to the parameters of the live view and other operations
using the web browser.
Steps:
1. Enter the Local Configuration interface:
Configuration > Advanced Configuration > Local Configuration
Figure 6-1 Local Configuration Interface
2. Configure the following settings:
Live View Parameters: Set the protocol type, stream type, image size and live view performance.
Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.
21
