IP Server:
Steps:
(1) Enter the Server Address of the IP Server. (2) Click
Note: The Server Address should be entered with the static IP address of the computer that runs
the IP Server software. For the IP Server, you have to apply a static IP, subnet mask, gateway
and preferred DNS from the ISP.

6.3.5 Configuring SNMP Settings

Purpose:
You can use SNMP to get PTZ status and parameters related information.
Before you start:
Before setting the SNMP, please use the SNMP software and manage to receive the PTZ information
via SNMP port. By setting the Trap Address, the PTZ can send the alarm event and exception
messages to the surveillance center.
Note: The SNMP version you select should be the same as that of the SNMP software.
Steps:
1. Enter the SNMP Settings interface:

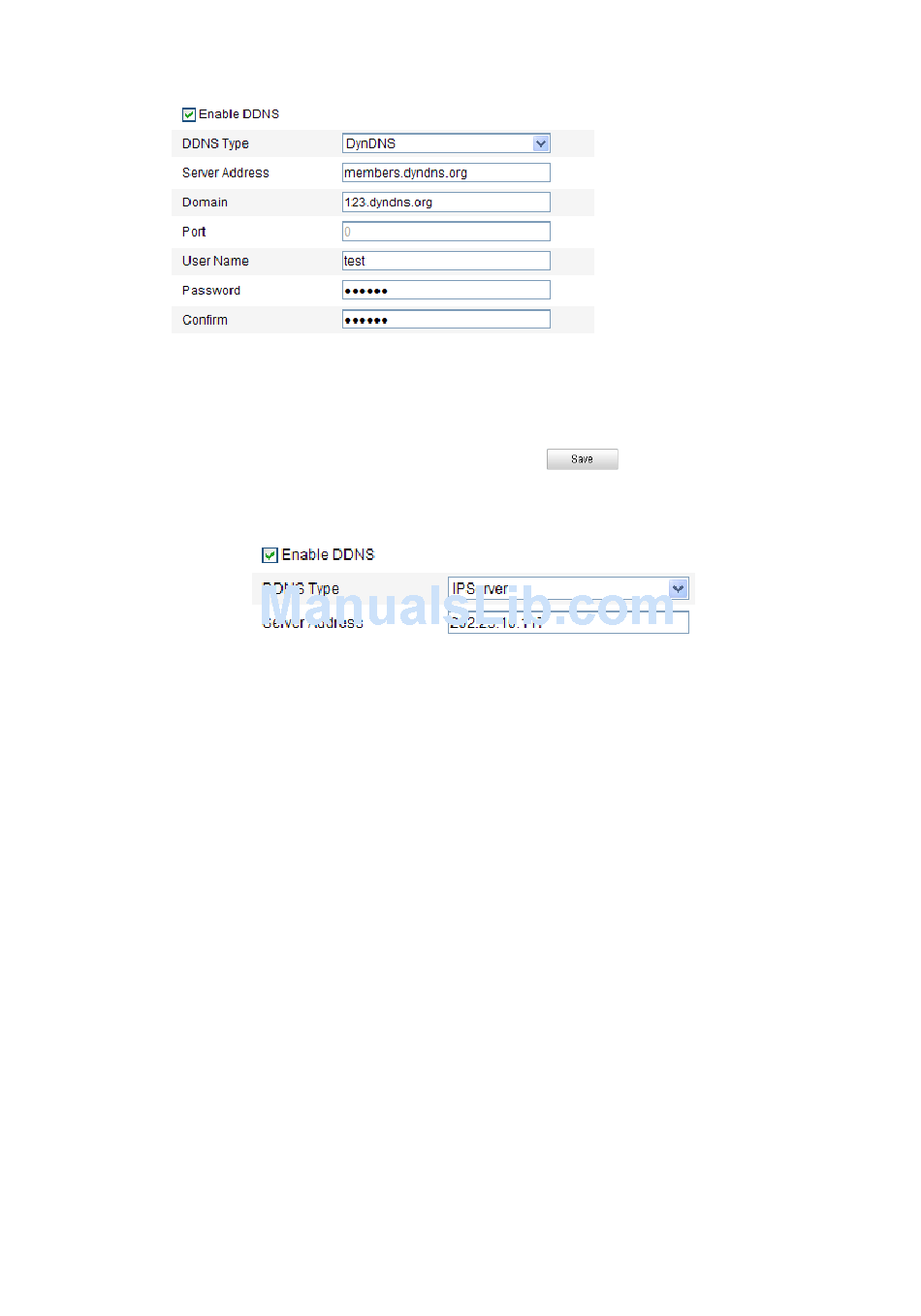

Figure 6-12 DynDNS Settings
Figure 6-13 IPServer Settings
t to save the settings.
28
