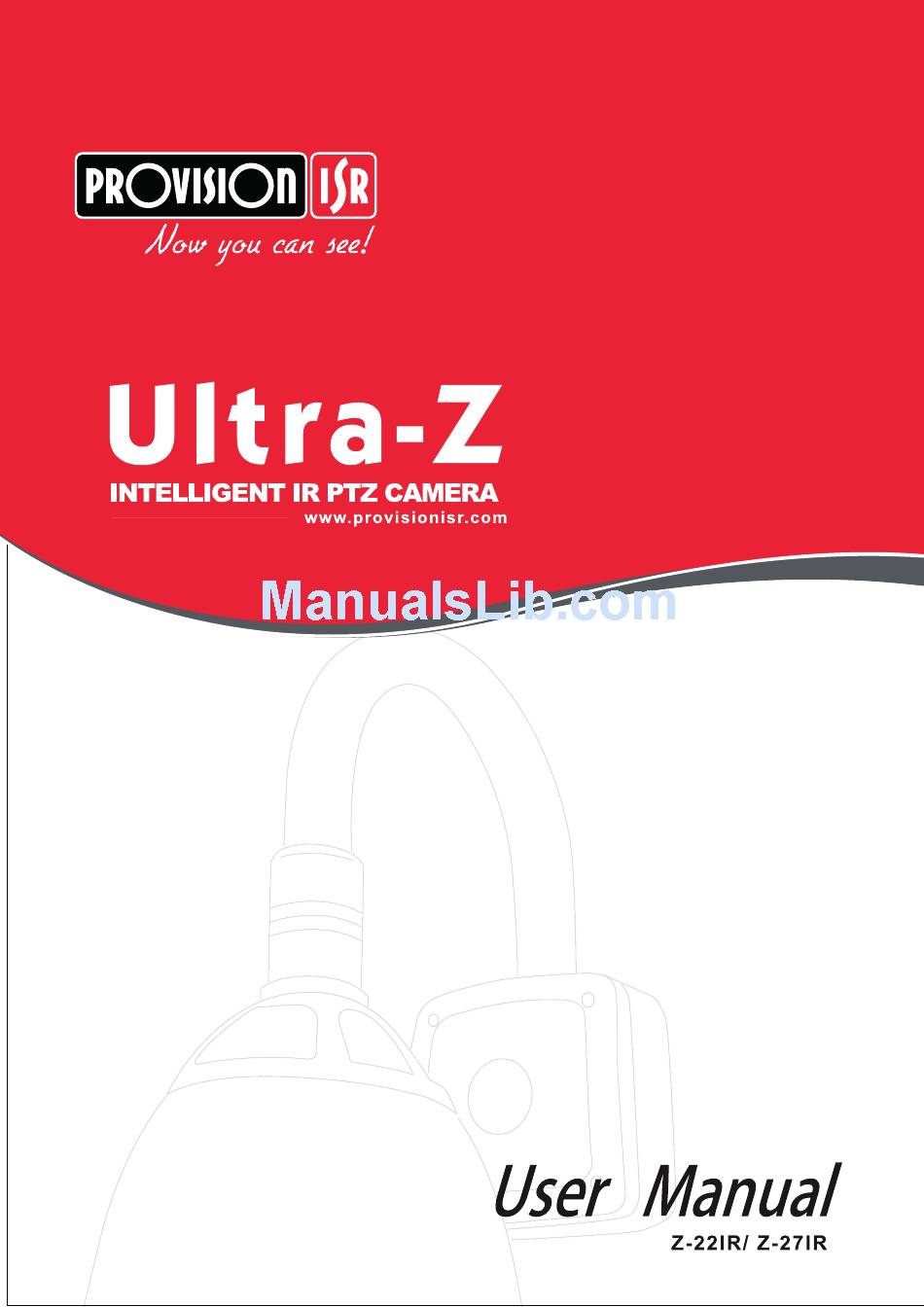

Provision ISR Z-22IR User Manual

Intelligent ir ptz camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-22IR and is the answer not in the manual?

Questions and answers

Related Manuals for Provision ISR Z-22IR

Summary of Contents for Provision ISR Z-22IR

  • Page 2 Package Contents: Item Qty. Z-22/27 IR PTZ Wall Bracket Hinge Pin Rubber Seal DC12V/5A power supply Wall Screws PM8*25 socket head screws Allan Key User Manual...

  • Page 3: Table Of Contents

    Table of Contents: 1 General Instructions ..................3 1.1 Safety Instructions ................3 1.2 Warnings ................... 3 2 Features ......................4 2.2 Product Features ................4 2.3 Specifications ..................5 3 Installation Site Preparations ................ 6 3.1 Tool List ..................... 6 3.2 Installation Preparation ..............

  • Page 4: General Instructions

    1 General Instructions: 1.1 Safety Instructions: Make sure to read the user manual before using the product.  Always follow national and local safety codes during the installation.  Only qualified and experienced person can carry this installation and  maintenance.

  • Page 5: Features

    2 Features: 2.1 Product Picture: 2.2 Product Features Alarm I/O.  Adaptive PELCO-P/D protocol.  Adjustable IR illumination.  Memory recall.  Real-Time-Control: call any functions at any time.  Up to 8 privacy masks.  Support 128 preset positions. ...

  • Page 6: Specifications

    speed to reduce the dark angle and flashlight effect. The upper dome adopts 7" aluminum alloy structure for better  magnetic shield and heat radiation. The underpart dome adopts full metal class points bin type design for  fast heat dissipation and anti-mist, non-interference light source images and long life span IR light.

  • Page 7: Installation Site Preparations

    Set any functions at any time Superpower LED：Default: Zoom x1~5: open the near-distance IR lights; Zoom x6~9: open the near-distance and middle-distance IR lights; IR Light switch Zoom >x10: turn off the near-distance IR lights, open the middle-distance and far-distance IR lights.
  • Page 8 3.3 DIP Switch Setting: (1)Default Settings: Pelco P/D (auto-detected), baud rate: 2400, address: 1. Use Philips screwdriver to remove the DIP switch cover (see location below) DIP Switch Position Reset Position (2)Baud Rate Setup Decoder Switch: 9~10 (1=ON, 0=OFF) Switch 9-10 setting Max transmission Baud Rate distance(M)

  • Page 9: Setup Of The Osd Menu

    4 Setup of the OSD Menu: 4.1 Display Boot-UP Info. Before installation please check the protocol, baud rate, address and RS485 data cable. Default protocol: PELCO-D, address: 1, baud rate: 2400. PROTOCOL: PELCO P D BAUD RATE: 2400BPS CAMERA ID: 001 CAMERA S/N: 0000000001 MODEL: ----------------- VERSION: V1.02...

  • Page 10: System

    The Main menu as follows: SYSTEM LENS CAMERA PAN/TILT AUTO RUNNING PRIVACY MASK ALARM LANGUAGE IR SET EXIT 4.3 SYSTEM Menu: <Main Menu>  <SYSTEM> SITE INFO DISPLAY SETUP BOOTUP SCREEN PASSWORD SET DEFAULT SYSTEM REBOOT RTC TIME SET RTC TIMER RUNNING BACK EXIT...
  • Page 11 System info includes following settings. < SITE INFO>: In this menu the user can setup the dome’s name, View  the Hardware address, change the camera software address and choose the leading command (Hardware or Software). < DISPLAY SETUP >: In this menu the user can choose which details will ...
  • Page 12 <Main Menu>  <SYSTEM>  <SITE INFO > <NAME>: The title name of the dome. Assigning a name to a dome  helps the user to identify which dome is under control for multiple domes site. Max 16 digits Setting with number from 0~9 and letter from A~Z.
  • Page 13 4.3.2 DISPLAY SET UP < Main Menu><SYSTEM><DISPLAY SETUP> SITE NAME: PRESET TITLE: PATTERN NAME: OFF ZOOM: ORIENATATION: OFF TEMPRETURE: ZONE NAME: RTC TIME: BACK EXIT <SITE NAME>：Choose to display site name or not.  <PRESET TITLE>：Choose to display preset position or not. ...
  • Page 14 4.3.3 DISPLAY BOOT-UP INFO PROTOCOL: PELCO P D BAUD RATE: 2400BPS CAMERA ID: 001 CAMERA S/N: 0000000001 MODEL: ----------------- VERSION: V1.02 FAN SPEED: 6000RPM CALL PRESET 1 TO BACK <Main Menu><SYSTEM><DISPLAY BOOT-UP INFO> Enter into Boot-up info displays to check current setup, call preset 1 to return to upper menu 4.3.4 PASSWORD <Main Menu><SYSTEM><PASSWORD>...
  • Page 15 password. If the old Password input is not correct, you will not be able to change the password. <CONFIRM>:  Re-input the new password and confirm. If the input is not the same as the first time input, the system will remain the old password. <PSWD PROTECTION>: ...

  • Page 16: Lens

    Use left and right keys to move the cursor to desired item, use up and down keys to change the current cursor value. 4.3.8 RTC RIME RUNNING <Main Menu><SYSTEM><RTC TIMER RUNNING> DATE Y/M/D: 00 00 00 TIME H: M: S: 00 00 00 ACTION: PRESET BACK...
  • Page 17 <ZOOM SPEED>: Set the zoom speed level to HIGH or LOW  <DIGITAL ZOOM>: Turn On/Off the Digital Zoom.  <JOYSTICK AF/AI>: Set up Auto Focus (AF), Auto Iris (AI) or Both  <BOTH>: Joystick movement triggers both auto focus and auto iris <FOCUS>： Joystick movement triggers auto focus only <IRIS>: Joystick movement triggers auto iris only.

  • Page 18: Camera

    Show the current camera P/N (PAL/ NTSC), The PTZ can automatically detected some of the camera Signal mode. If not, please set manually. 4.5 CAMERA: Important Note: Camera setting will vary between Z-22IR and Z-27IR. For the Simple camera menu access <Main Menu><CAMERA>. Simple Camera Menu:...
  • Page 19 dark. The dome can auto adjust the brightness of the whole image according to the brightness of the center point. Thus backlight compensation can increase the brightness of the objects in the center of the picture. Select<BLC SET>, and choose the right key to access the sub-menu as below BLC QTY: WDR: BACK...
  • Page 20 FOCUS AUTO ID DISPLAY CAM ID PROTOCOL VISCA BAUD RATE 9600 485 CONTROL NORMAL LED 1 LED 2 <DSP SETTINGS> LANGUAGE RESET EXIT DSP Settings: SHUTTER AUTO WB MODE AUTO BACKLIGHT HLC LEVEL MIRROR BRIGHTNESS SHARPNESS <MASK SETTING> COLOR EXIT...
  • Page 21 <SHUTTER>: Choosing between Auto and Manual  <WB MODE >: White Balance is normally compensated for by the  automatic white balance gain control. In some lighting conditions, user may want to manually adjust the red and blue settings for optimal viewing.

  • Page 22: Pan/Tilt

    4.6 PAN/TILT <Main Menu><PAN/TILT> AUTO STOP TIME: SPEED AMPLIFY: PROPORTIONAL P/T: ON SET NORTH BACK EXIT <AUTO STOP TIME>:  For some particular protocols, the dome will not stop moving even there is no operation on CCTV Tester. This menu sets the time after which the dome receives last control command.

  • Page 23: Auto Running

    <SET NORTH>:  User can set orientation by using joystick to position north. When select <SET NORTH>, following menu will pop-up. CALL PRESET 1 TO RETURN CONFIRM..Adjust the lens to desired position and call preset 1 to confirm and return. 4.7 AUTO RUNNING <Main Menu><AUTO RUNNING>...
  • Page 24 4.7.1 PRESET <Main Menu><AUTO RUNNING><PRESET> PRESET NUMBER: TITLE: PRESET 001 SET CURRNET REMOVE CURRENT BACK EXIT In this function, the values of the pan/tilt positions will be stored in the desired memory slot so that you will be able to call it when in need. 128 presets can be saved.
  • Page 25 CALL PRESET 1 TO BACK CONFIRM … … Move to the desired position and zoom to a suitable level, call preset 1 to save the current preset and return. < REMOVE CURRENT>: Delete the preset with the number and title ...
  • Page 26 PRESET–DWELL 000-003 000-003 000-003 000-003 000-003 000-003 000-004 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 000-003 SAVE AND BACK CANCEL AND BACK There are three group numbers, the left side is preset number, the right side is dwell time;...
  • Page 27 There are max 4 patterns, and the dome camera can record all regular operation in 3 minutes at least. The command will drive the speed dome runs as given route repeatedly. <PATTERN NUMBER>: Set current pattern number from 001～004.  <RECORD>: Edit the current pattern’s running route and record all ...
  • Page 28 <360° SCAN DWELL>: [0S]: 360 continuous scan [5S]: 90 intermittent scan, then dwell on 5s, the dome will continuously run at the given route repeatedly until receiving new command. [10S]: 90 intermittent scan, then dwell on 10s, the dome will continuously run at the given route repeatedly until receiving new command.
  • Page 29 <TITLE>: To set current zone Name, 16-bit can be set up by the number  0-9 and the letters A-Z of any combination <LEFT LIMIT>: Set the right edge of region <A>  CALL PRESET 1 TO BACK CONFIRM..Move the camera left limit position to confirm and return.

  • Page 30: Privacy Mask

    4.7.6 <PARK TIME> The camera will run certain function automatically if the dome is not receiving any command for the specified time. 0S：PARK TIME OFF 60S：PARK TIME ON, 60S 120S：PARK TIME ON, 120S 4.7.7 <RUNNING TYPE> Choose the type of action that will take place on activation of Park: users can choose between: Preset, Tour or Pattern.

  • Page 31: Alarm

    CALL PRESET 1 TO RETURN CONFIRM..SIZE Using up, down, left and right key to adjust the size of the mask, then call preset 1 to confirm and return. <REMOVE CURRENT MASK>: Remove current mask, then the black ...

  • Page 32: Language

    means alarm out on A side, ALoutB means alarm out on B side. Note: The alarm has highest priority. For example, if Cruise set to run at 12:00, and at the same time an alarm signal input, the dome camera would respond to the alarm first.

  • Page 33: Ir Set

    4.11 IR SET <Main Menu>  <IR SET> IR MODE: AUTO IR ZOOM SET 1: 006 IR ZOOM SET 2: 010 PRESENT LUX: 010 IR START SET: 006 IR CLOSE SET: 012 BACK EXIT <IR MODE >: AUTO/OPEN/CLOSE  <AUTO>: Default. When the detected signal value from the IR sensitive below the value of IR Start, the IR dome automatically open the IR lights.

  • Page 34: Appendix I: Dip Switch Setting

    APPENDIX I: DIP SWITCH SETTING DIP Switch consists of 8 numbers from 1-8, use 8421 binary cod, max 255 address. When the switch is in the “ON” position, the number from 1-8 corresponding to 1, 2, 4, 8, 32, 64, 128. For example, if you set 1, 3, 5, 7 switch to the “ON”...
  • Page 35 1 1 0 0 0 1 0 0 0 0 1 0 0 1 0 0 1 0 1 0 0 1 0 0 0 1 1 0 0 1 0 0 1 1 1 0 0 1 0 0 0 0 0 1 0 1 0 0 1 0 0 1 0 1 0 0 0 1 0 1 0 1 0 0...
  • Page 36 1 0 0 1 1 0 1 0 0 1 0 1 1 0 1 0 0 0 1 1 1 0 1 0 0 0 1 1 1 0 1 0 1 0 1 1 1 0 1 0 0 1 1 1 1 0 1 0 1 1 1 1 1 0 1 0 0 0 0 0 0 1 1 0...
  • Page 37 1 1 1 1 0 0 0 1 0 0 0 0 1 0 0 1 1 0 0 0 1 0 0 1 0 1 0 0 1 0 0 1 1 1 0 0 1 0 0 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 0 1 0 1 1 0 1 0 0 1...
  • Page 38 1 0 1 0 0 0 1 1 0 1 1 0 0 0 1 1 1 1 1 0 0 0 1 1 0 0 0 1 0 0 1 1 1 0 0 1 0 0 1 1 0 1 0 1 0 0 1 1 1 1 0 1 0 0 1 1 0 0 1 1 0 0 1 1...

  • Page 39: Appendix Ii Shortcuts Key Chart

    APPENDIX II Shortcuts Key Chart Shortcut Key Function (Set Preset) Set #71 preset Proportional P/T OFF Set #73 preset 0S Park time ON Set #74 preset 60S Park time ON Set #75 preset 120S Park time ON Set #76 preset Dome restart Set #77 preset Restore Factory Setting...
  • Page 40 Shortcut Key Function (Call Preset) Call #71 preset Proportional P/T ON Call #82 preset Start Cruise scan and switch the cruise scan direction Call #83 preset Delete all Presets Call #84 preset Start Pattern 1 Call #85 preset Start Pattern 2 Call #86 preset Start Pattern 3 Call #87 preset...

  • Page 41: Appendix Iii Trouble Shooting

    APPENDIX III Trouble Shooting Troubles Reason Solution 1. The power supply is not 1. Correct the connection. No action when power on connected correctly. 2. Check the power supply LED 2. The fuse is broken. power indicator. 3. Replace the fuse. 1.

This manual is also suitable for:

Z-27ir
