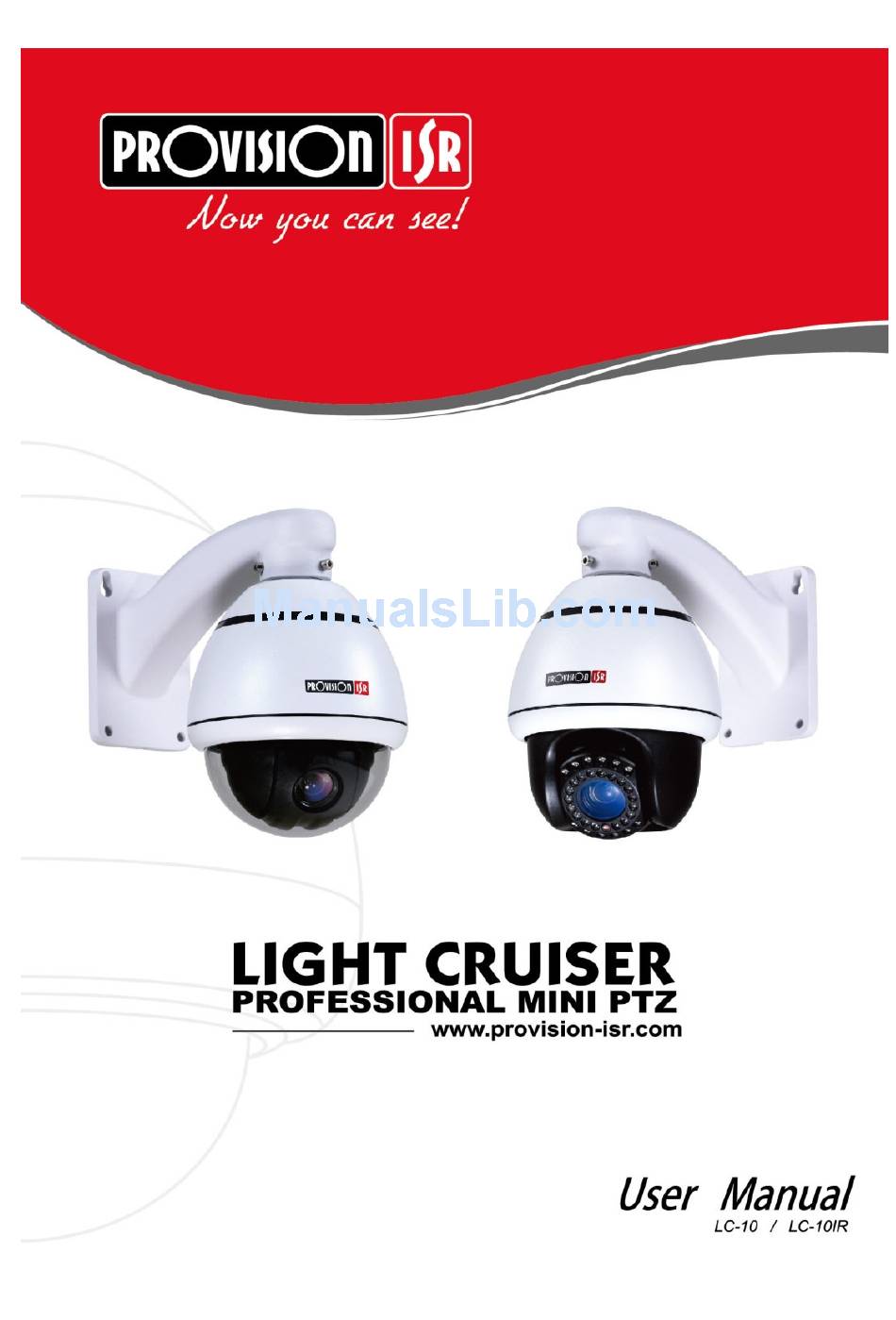

Provision ISR LC-10 User Manual

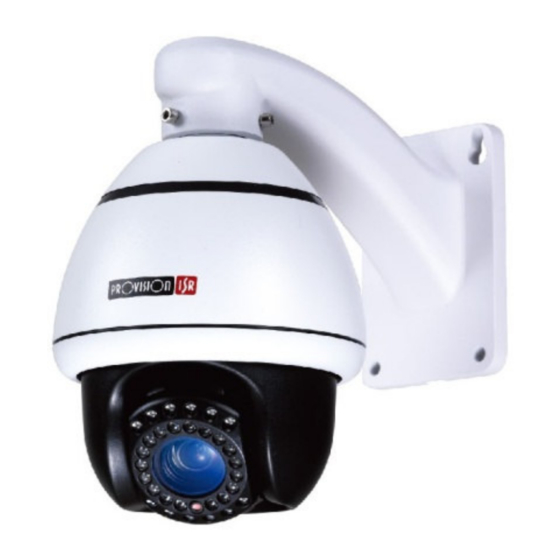

Light cruiser professional mini ptz 4" high speed mini dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Provision ISR LC-10

Summary of Contents for Provision ISR LC-10

  • Page 2: Table Of Contents

    Table of Content: Chapter 1: Product Summary: 1.1 Technical Parameters…………..………….…………….…………….2 1.2 Package Contents….………………………………………….……….3 1.3 Function description………………………………………….……….3 Chapter 2: Equipment installation: 2.1 DIP switch settings…………………..........5 2.2 Dome camera structure diagram……………………………….……7 2.3 Bracket installation diagram...……………………………………….8 Chapter3: System OSD menu settings: 3.1 Power-on self-test………….……………..………………………..….8 3.2 Preset point setting and calling…………..……………………..….8 3.2.1 Set preset points………….……………….………..………………..9 3.2.2 Call preset points…….…………………….………….……………..9...

  • Page 3: Chapter 1:Product Summary

    Chapter 1:Product Summary: 1.1 Technical Parameters: Model number 4" High Speed Mini Dome Camera Optical focus Image sensor 1/3"CCD Signal mode PAL/NTSC Resolution 650TVL Manual/Auto, high performance DSP to utilize high Optical focus continuous focusing function. Presets Pattern scan 4groups,each can record 100 actions Up to 30 presets cruise with independent dwell Cruise scan duration.

  • Page 4: Package Contents

    1.2 Package Contents: 1. Speed Dome Camera – 1 Pcs 2. Wall Bracket – 1 Pcs 3. Ceiling Bracket – 1 Pcs 4. Power Supply – 1 Pcs 5. User Manual – 1 Pcs 6. Installation Accessories – Lot. 1.3Main Functions Description: 1.
  • Page 5 6. Lens Control: (1) Zoom control Users can control the PTZ lens in order to adjust the zoom level of the camera and get wide/narrow view according to the scene. (2) Focus Control System default is auto-focus. The object in center of the screen will be the subject of focus.

  • Page 6: Chapter 2 Equipment Installation

    10. Night Mode (color / Black & White conversion): Cameras with night mode, automatic color / monochrome conversion mode, in accordance with changes in ambient light automatic conversion CCD illumination. Such as: adequate lighting during the day due to the use of general illumination to ensure colorful images.
  • Page 7 DIP switch to “ON” means to “1”,DIP switch to "OFF" means "0". The baud rate and control protocol as the following table: PELCO-P PELCO-D Baud rate (BPS） PELCO-D/P PELCO-D/P 9600 Control 9600 Protocol 4800 2400 8-bit DIP switch is used to set the camera's address coding. Address set binary mode can be set to a total of 256 different dome camera address coding, see coding table address.

  • Page 9: Dome Camera Structure Diagram

    2.2 Dome camera structure diagram: Figure 1 Figure 2 2.3 Bracket installation diagram Figure 3...

  • Page 10: Power-On Self-Test

    Figure 4 Chapter 3 System OSD menu settings: 3.1Power-On Self-Test: When power is connected to the dome camera, the camera will move in horizontal and vertical directions to confirm that motors and belts are in order. The screen will show system-related information. PTOL：...

  • Page 11: Call Preset Points

    3.2.2 Call preset points: (1) Make sure the correct camera is selected in your controller. (2) Press the required preset number (inputs the designated preset) + PREVIEW button, the camera will immediately move to the desired preset position. The lens zoom, focus and Iris will also automatically change to the preset parameters If the preset input is a special function preset (see "Preset Point table"...

  • Page 12: Mainmenu

    3.4OSD Main Menu Once the dome camera is power on and finished self-testing, call preset 95in order to access the ODS main menu as shown in Table 3.1. MAINMENU Menu function descriptions SYSTEM Displays camera basic information. INFORMATION See More Details in section 3.5. Used to set the camera address.

  • Page 13: System Information

    3.5 SYSTEM INFORMATION: SYSTEM INFORMATION Menu function descriptions Serial information, display the dome COM 2400,N,8,1 camera serial port baud rate, parity, data bits, stop bits of information. ADDRESS 1 Display the current dome camera address Display the current dome camera PROTOCOL PELCO-D communication protocol.

  • Page 14: Motion

    3.7 MOTION (PTZ) Settings: This menu is used to set PTZ parameters such as movement and orientation angles as shown in the following table: MOTION Menu function descriptions Set the scan left and right limits. SET FRAME SCAN See More Details in section 3.7.1. Power on setting menu.

  • Page 15: Power Up

    3.7.4POWER UP Settings: This will define which action the dome camera will perform when it is powered on. (unless any other action was received). Parameters in the following table: POWER UP Menu function descriptions NONE Don’t perform any action. AUTO SCAN Perform continuous scanning action.

  • Page 16: Patterns

    3.8PATTERNS Menu: PATTERNS Menu function descriptions PATTERNNUMBER 1 Select pattern number, within 1~4. To select pattern scan line; Operations PROGRAM PATTERN shown in section 3.8.1. CLEAR CURRENT PATTERN Clear current pattern scan line. CLEAR ALL PATTERN Clear all the pattern lines. BACK Return to the previous menu.
  • Page 17 3.9CAMERA (Zoom Module) Settings: CAMERA ID 000 Not in use ZOOM DISPLAY Allow you to remove the Zoom indication display BLC OFF Backlight Compensation Control AGC MIDDLE Allows you to adjust AGC levels Change mode (Day: force the camera to stay in Day mode, Night : force the camera to stay in DAY &...

  • Page 18: Ir Setting

    EXIT Exit the menu setting. *in case you are setting-up the cruise using Provision-ISR DVR, make sure that you mark “Simulative Cruise” as active. Otherwise, the cruise may not work. 3.11 IR Settings (Only Applicable in IR Dome Cameras) IR SETTING Menu function descriptions ON:IR light is forced to be on constantly;...

  • Page 19: Troubleshooting Table

    Chapter4: Simple troubleshooting and maintenance. 4.1 Simple Troubleshooting Table: Failure Possible Cause Solutions Connected the Check voltage in cable Power wrong power cord connected but Power supply is Check power ratings. Replace the camera is damaged power supply. not performing Bad fuse Replace Fuse self-test, no...
  • Page 20 Make sure settings are on auto Manual focus on the focus. If so try to shift the camera in Blurry Image state any direction to reinstate auto focus mode Replace power supply to meet the Long delays in requirements of the power Power rating is not consumption.

This manual is also suitable for:

Lc-10rLight cruiser lc-10Light cruiser lc-10ir
